Section 7 Specifications and Capacities
Models ADI334 and ADI345 Air Drill Implement 160-195M 5/11/05
Great Plains Mfg., Inc.
Section 7
Specifications and Capacities
Width 34 or 45 ft
Number of openers ADI345 ADI334
7-in row spacing 55 75
10-in row spacing 40 55
12-in row spacing 35 45
Implement Weight Row Spacing Opener Style ADI345 ADI334
7 in Shear Bolt Hoe 14945 lbs 11292 lbs
7 in Spring Reset Hoe 16250 lbs 12278 lbs
10 in Shear Bolt Hoe 13500 lbs 10200 lbs
10 in Spring Reset Hoe 14440 lbs 10910 lbs
12 in Shear Bolt Hoe 12875 lbs 9728 lbs
12 in Spring Reset Hoe 14000 lbs 10321 lbs
Overall Transport Height ADI334: 13 ft, 2 in
ADI345: 15 ft, 8 in
Overall Transport Width 20 ft
Overall Road Clearance 8 1/2 in
Distance Between Ranks 28 in
Seed Hose Primary: 2 1/2-in inner dimension
Secondary: 1-in inner dimension
Tires 9.5L x 15 6-ply tires on 15-in rims
Tractor Horsepower Requirements 34-foot implement - 180 horsepower
45-foot implement - 240 horsepower (Horsepower requirements will vary with
soil type, terrain and tillage practices.)
Tractor Hydraulic Requirements Three sets of hydraulic outlets
Load-sensitive or closed-center hydraulics
Capacity 15 to 30 gallons per minute at 2000 pounds per square inch

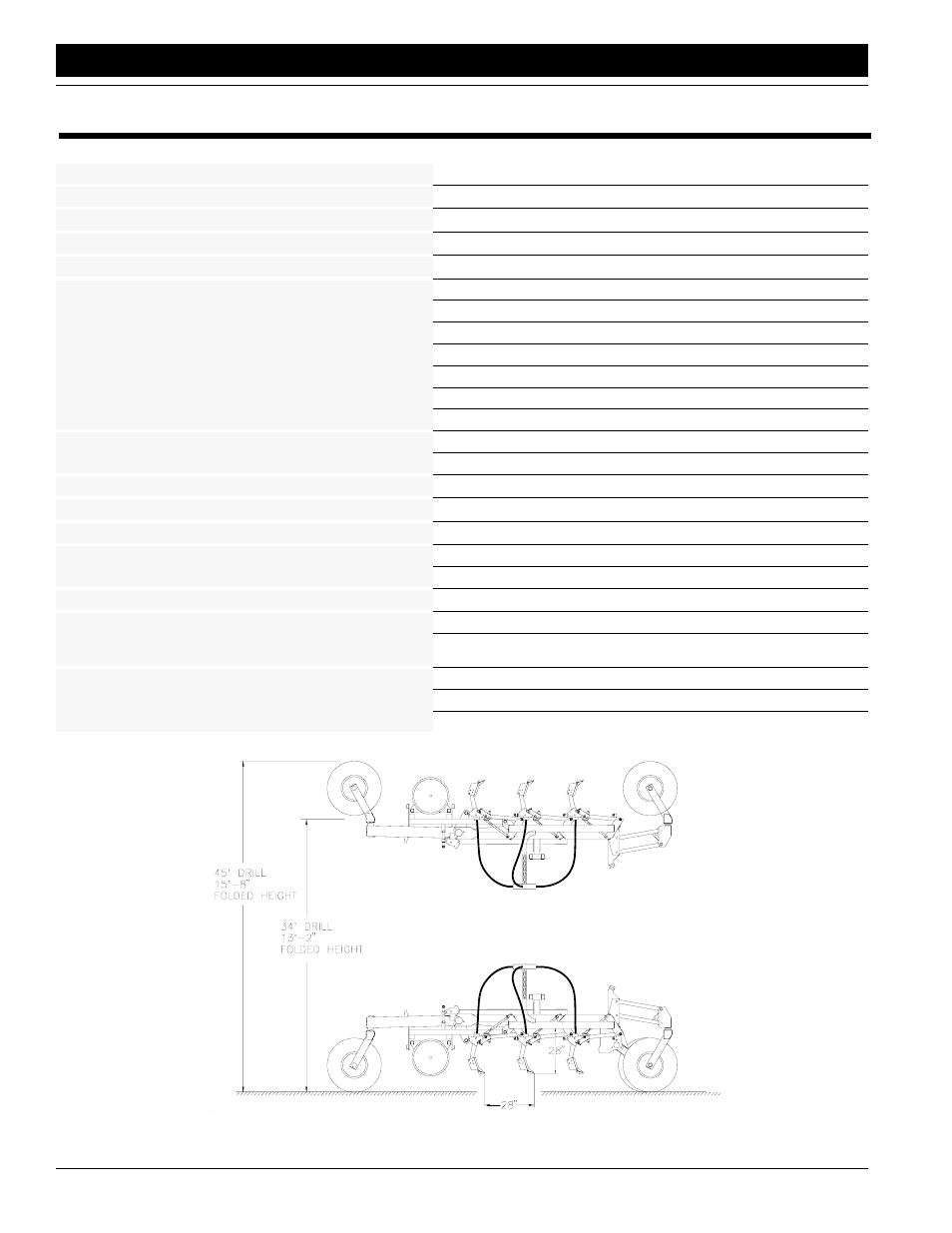

Specification Drawing
16556
