Models ADI334 and ADI345 Air Drill Implement 160-195M

5/11/05

Great Plains Mfg., Inc.

14465

45-Foot Lifting Hydraulics

Hydraulic Hose Sizes

Item

Part Number

I.D.

Length

1

811-124C

3/8

268

2

811-125C

3/8

90

3

811-310C

3/8

198

4

811-245C

3/8

74

5

811-245C

3/8

74

6

811-236C

3/8

84

7

811-123C

3/8

51

8

811-124C

3/8

268

9

811-311C

3/8

242

10

811-127C

3/8

111

11

811-127C

3/8

111

12

811-125C

3/8

82

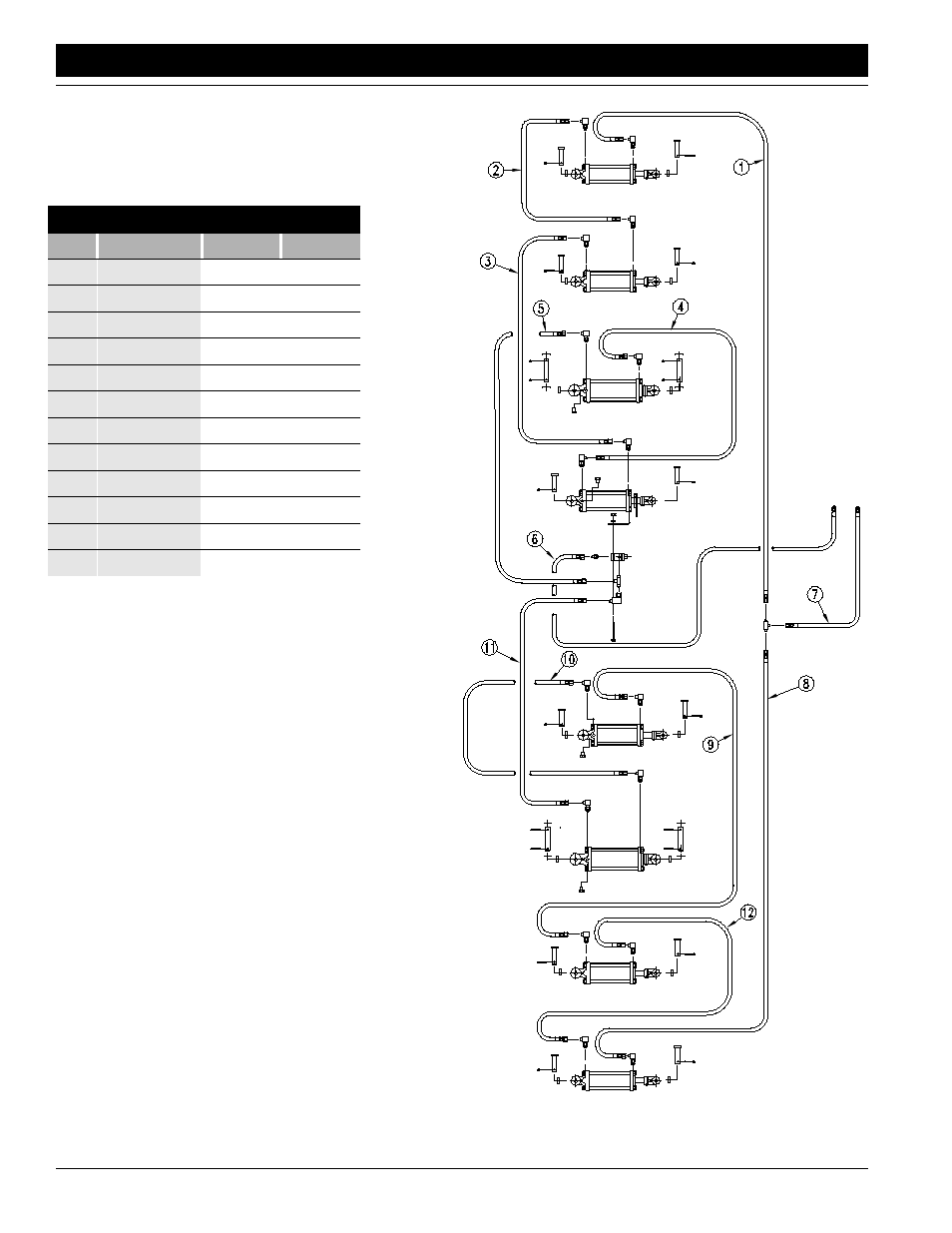

Hydraulic Schematics–45-Foot Drill
