5. O PERATION W HEATHEART - P ORTABLE D RIVE O VER P IT
5.2. O PERATOR C ONTROLS 10" & 13"
22 30686 R0
Note: A hydraulic system will still be required to operate the wheel lift system.
5.2. OPERATOR CONTROLS
5.2.1. H
YDRAULIC
D
RIVE
The Portable Pit is an easy to use transfer auger that offers the convenience of a
single point control for switching between the auger and transport wheel lift
hydraulic circuits.
The hydraulic circuit selector valve is located on the body of the discharge tube
as shown in Figure 5.1.
• when located in the neutral position (centered) the augers will operate
• when moved up, the wheel lift cylinder will extend to place the unit in
transport position
• when moved down, the wheel lift cylinder will retract to place the unit in
the operating position

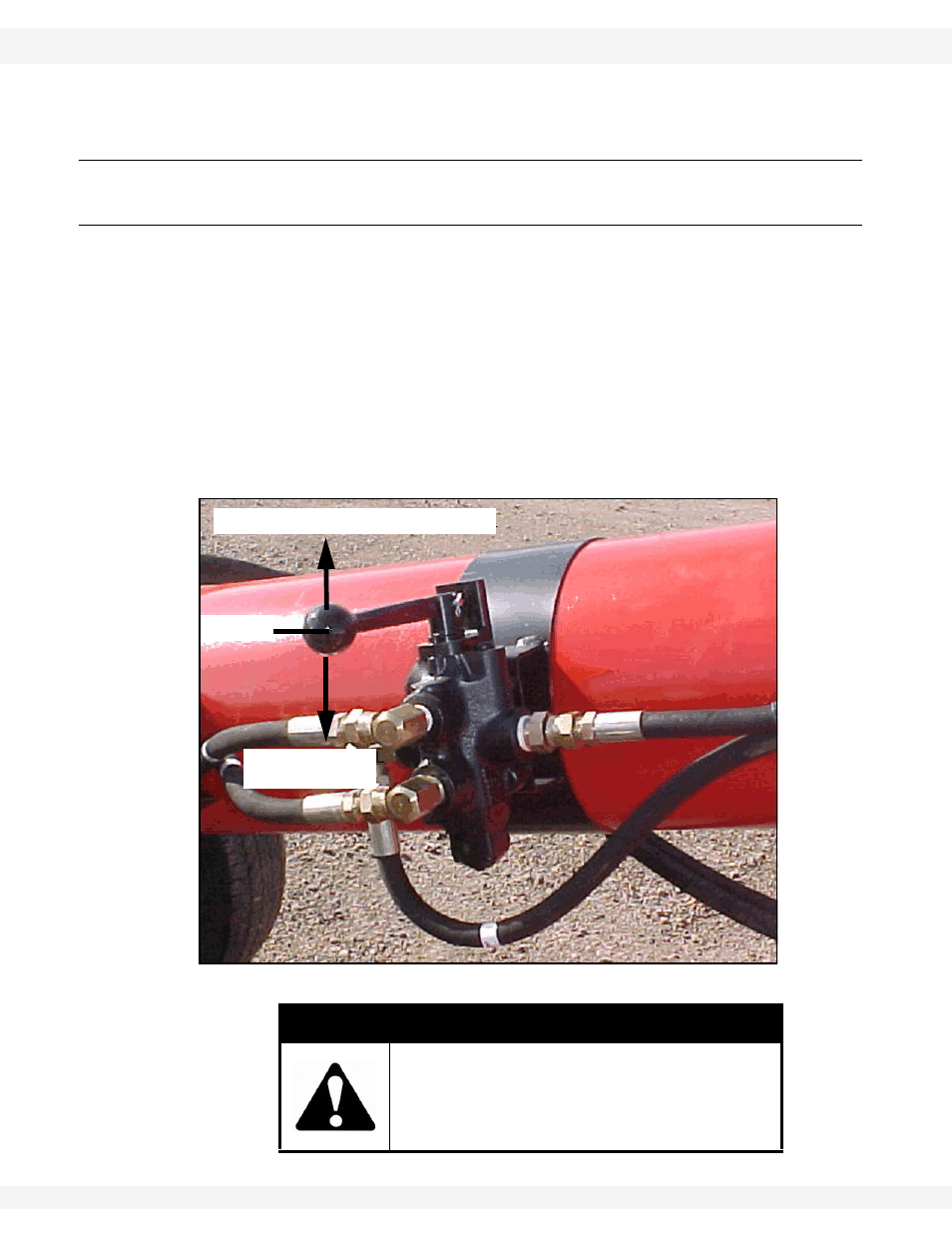

Figure 5.1 Hydraulic Selector Valve
WARNING
Stay clear of tires when raising/lowering drive-
over pit as tires move back and forth.
Ensure pit will rest on level, unobstructed
ground.
EXTEND WHEEL LIFT CYLINDER
NEUTRAL
RETRACT WHEEL
LIFT CYLINDER
