5. M AINTENANCE W HEATHEART - L IVESTOCK W ATERER
M ODELS : H50, H50L, EH50, EEFH50, SH50, ESH50, C50, EC50, C100, EC100, C200, EC200
18 IM11 R1
• Do not over-tighten the clip screws: thermostat must not bind when clip is in
place.
• When electrical package is refit to the waterer, ensure that the heat sensitive
surface of the thermostat is flush against the stainless steel pan.

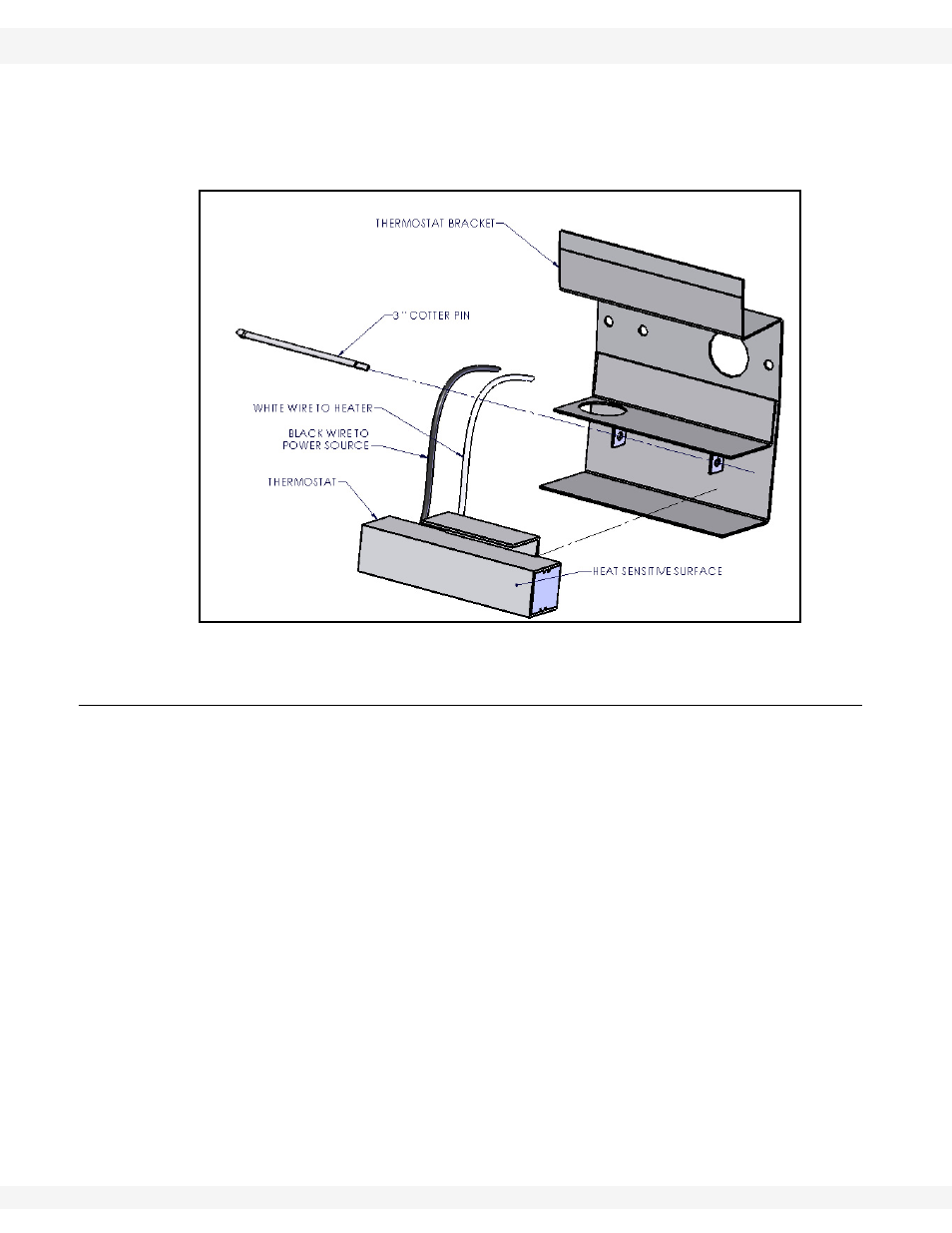

Figure 5.1 Thermostat Replacement
5.4. FLOATING LID KIT INSTALLATION (OPTIONAL)
The floating lid is an optional kit available with the livestock waterer and is
designed to reduce heat loss. Instructions are included with kit, but are also
included below.
F
OR
C100
AND
EC100 W
ATERERS
O
NLY
:
1. Remove existing float cover from livestock waterer.
2. Turn
off electrical power at the source.
3. Turn off water supply.
4. Disconnect hose and remove valve from waterer.
5. Remove rubber washer and slip threadless plastic nut over plastic nipple
(Figure 5.2).
6. Slip rubber washer back onto nipple and reinstall valve in waterer pan.
7. Reconnect hose, turn on water, and check for leaks.
8. Adjust water level to water level mark on valve body.
9. Turn power back on.
F
OR
C50, EC100, EC50,
AND
C100 W
ATERERS
:
1. Fold template included with float lid installation kit along dotted line at 90°.
