MUSICA I R E M I T T E R
All specifications subject to change without notification. All rights reserved. Copyright©2004 NetStreams
main.512.977.9393 / fax.512.977.9398 / 3600 W. Parmer Lane, Suite 100, Austin, TX 78727 / www.netstreams.com
NS-1104-7069
20

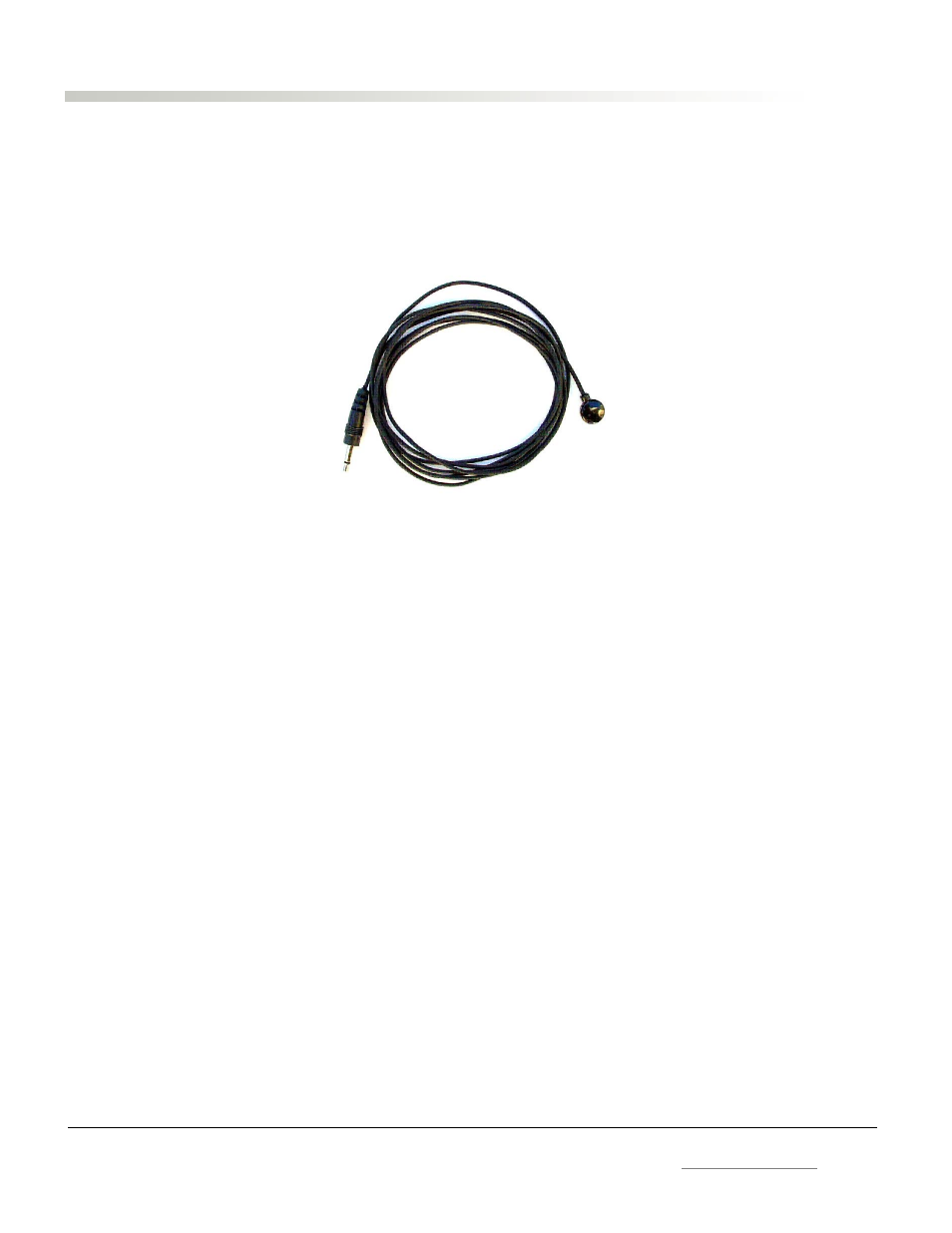

IR Emitter
IR emitters are connected to the Musica ADC (see Fig. A, next page) and run and installed at the house-wide
sources. The IR emitters will deliver the IR codes programmed into a Musica keypad, and stored in the ADC. Four
(4) IR Emitters MU4601IRE are provided with the Audio Distribution Center. Additional IR Emitters may be
purchased.
TIPS:
•
Use the supplied IR emitters to transmit the commands from your keypads to your source components.
•
An emitter must be connected from the Musica ADC to each of your four sources. (see Fig. A, next page)
•
Remove the adhesive backing and stick the emitter directly over the source components IR window. Be sure to
wipe the window clean of any finger prints before applying the emitter.
•
Keep the source components away from fluorescent light sources as this can interfere with emitters.
•
Dip-switches for each
emitter are located below the emitter inputs on the back of the Musica ADC.
