MUSICA K E Y P A D A M P L I F I E R DISPLAY SCREENS
All specifications subject to change without notification. All rights reserved. Copyright©2004 NetStreams
main.512.977.9393 / fax.512.977.9398 / 3600 W. Parmer Lane, Suite 100, Austin, TX 78727 / www.netstreams.com
NS-1104-7069
17

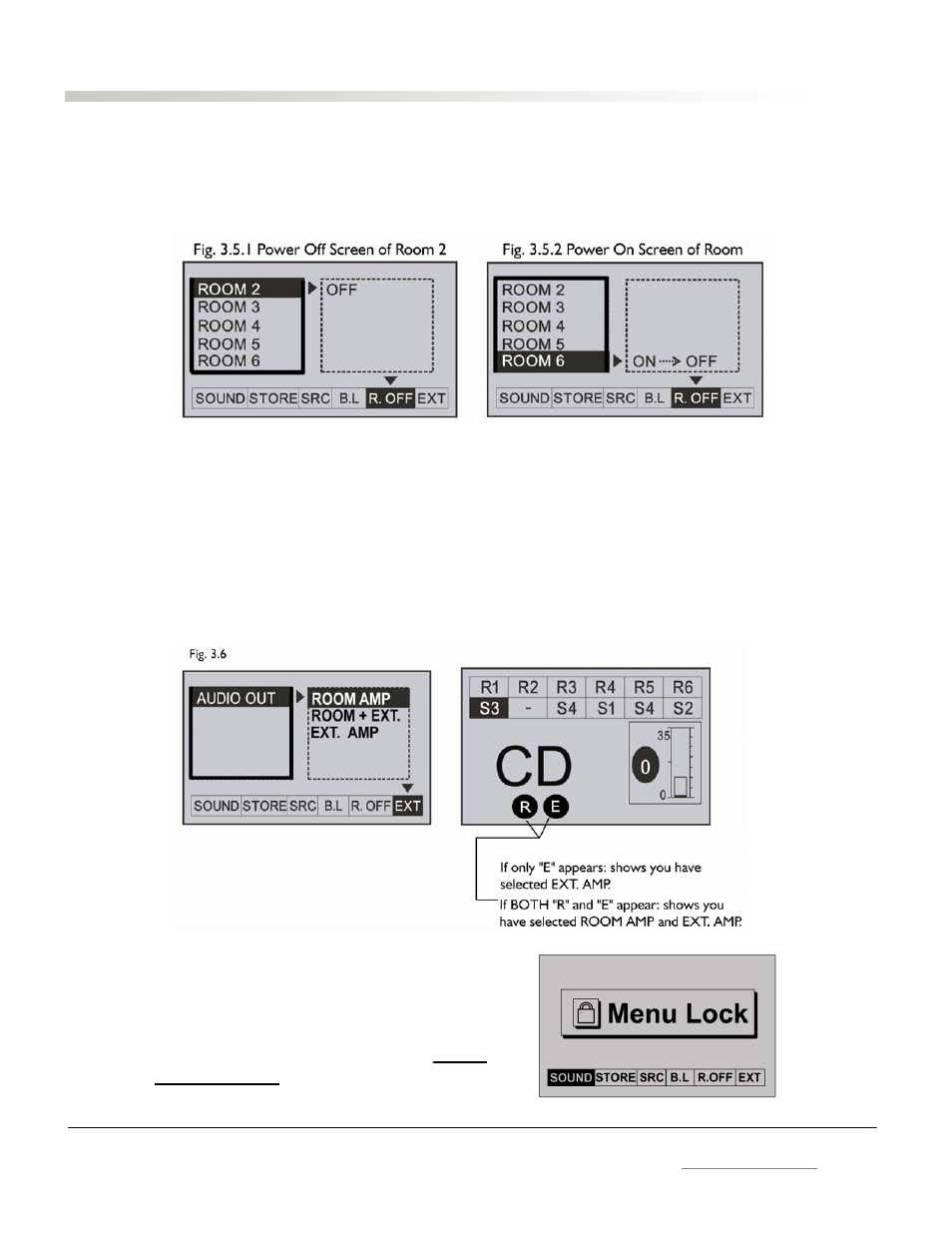

3.5 Room Off Menu:
Displays the brightness, color and On/Off status of back lighting.
Displays the current value of each sub-item in Sub 1 Menu. [Refer to Fig. 3.4.1]
Shows the new value of selected sub-item in Sub 2 Menu if necessary.
3.6 Audio port menu:
Defines the direction of the audio signal when the Audio Port (EIM) is in use.
ROOM + EXT: Uses both the keypad amp and external amp.
EXT AMP: Passes the audio signal into the external amplifier or audio system at line level.
This menu is only available if the Audio Port is connected
All ADC controls are available for use with the Audio Port, SRC control is not supported in this
mode.
3.7 Locking the menu:
Press the Menu button and 1,2,3,4 to lock the
menu.
Press the Menu button and 5,6,7,8 on the
remote control to unlock the menu.
Please note: 5, 6, 7,8 will not unlock using the keypad
