i
nstAllAtion
G
uide
2
connections and controls
ElEcTRicAl cONNEcTiONS
1x RJ45 connection with EIM (Expansion Interface Module used with SpeakerLinX, Musica Keypad,
NaimNet and Quartet Keypad. Optional power injector may be required).
1x RJ45 connection with AP (Audio Port connection used with SpeakerLinX, TLA250, or Musica and
Quartet Keypad).
ZONE NAmE SElEcTOR
The Zone Name Selector is a 16-position rotary switch (labeled Set ID that is used to select which
of 16 zone names the BluePort uses to identify itself to paired wireless audio devices.
STATuS lEd
The small LED illuminates to indicate the BluePort connection and streaming status. For more infor-
mation about the LED status, refer to the Pairing the Wireless Device later in this guide.
RESET BuTTON
Pressed to initiate the connection between the BluePort and the external audio device. Also used
to restore the BluePort to factory defaults

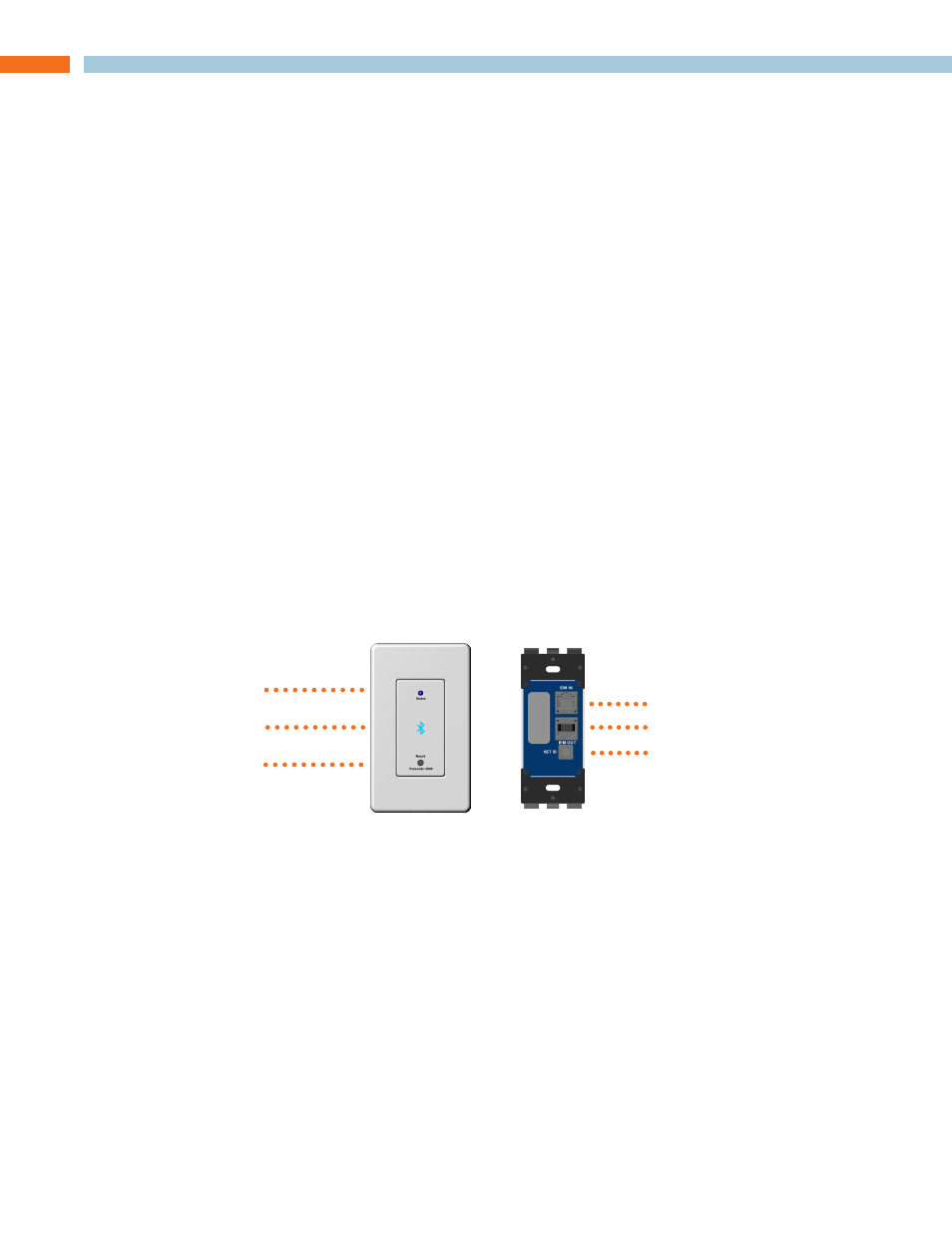

LED Status Indicator
Internal Bluetooth
Antenna
Reset Button
Zone Name Selector
EIM Out RJ45
EIM In RJ45
Front view Rear view
PhySicAl chARAcTERiSTicS
dimensions (Excluding connectors)
In-Wall Dimensions
1-3/4” x 2-13/16” x 1-1/4”
(45mm x 71mm x 32mm)
External Dimensions
2-3/4” x 4-5/8” x 1-1/3”
(45mm x 71mm x 32mm)
The unit is designed to fit in a standard single gang box, wired from behind.
