2 OF 2
STYLE NUMBER
KD8701MM
:

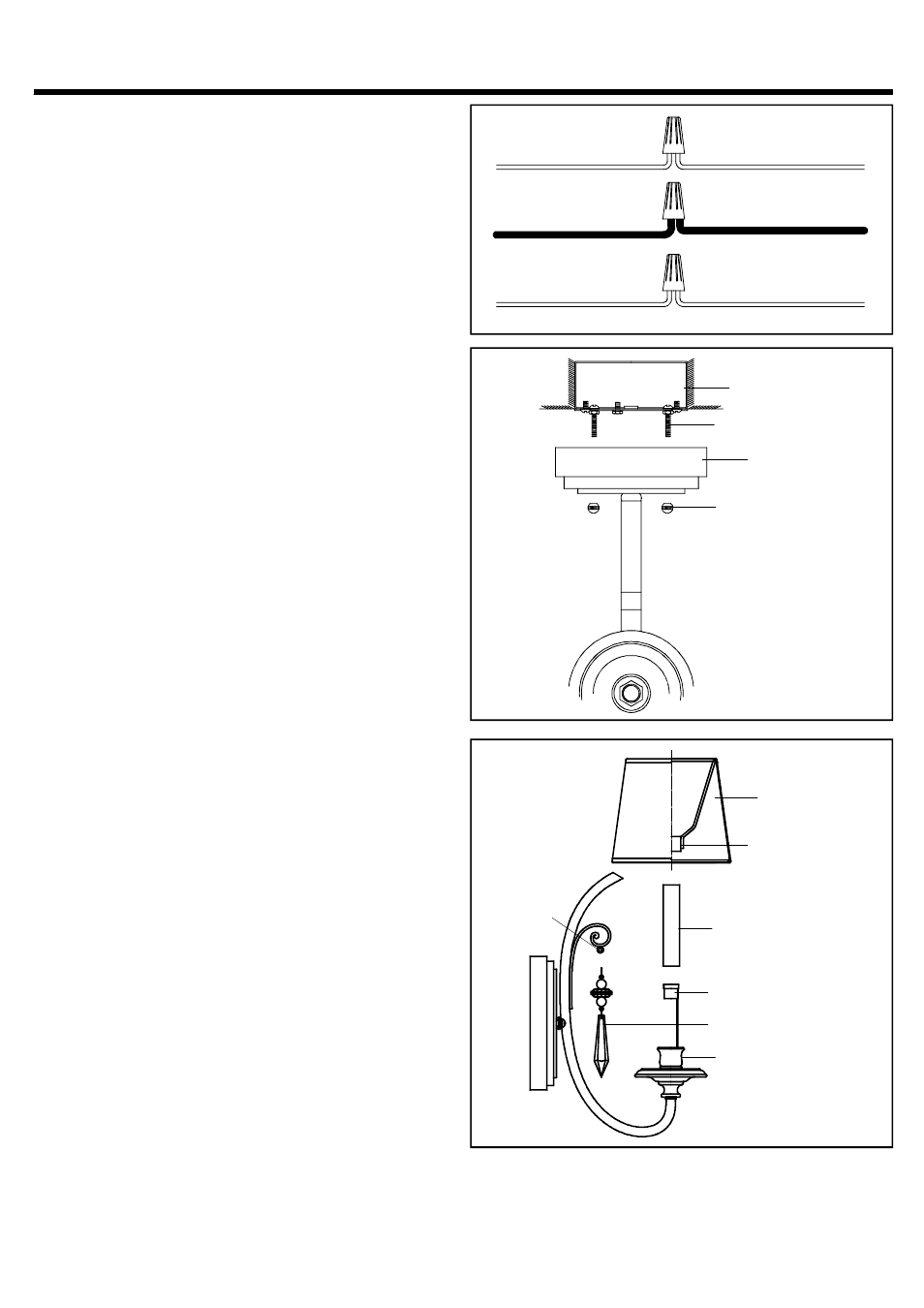

STEP 3
:
a. Place the Backplate over the Mounting Screws and
secure with Mounting Balls. Hand tighten until
snug.
STEP 4
.
.
.
.
.
:
a
Locate Crystal Pendant onto the Hanger
b Place Candle Cover over Socket setting into
the Cup
And then place the Harp inside of
the Shade onto the top end of the Candle
Cover
STEP 2
:
*
(
)
.
.
.
(
)
.
(
)
(
).
.
.
Use Wire Connectors not supplied to connect
the wires
a Connect the House Ground Wire to the Fixture
Ground Wire.
b Connect the House White Wire to the Fixture
Supply Wire White or Ribbed Side .
c Connect the House Black or Red Wire to the
Fixture Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical
tape and carefully stuff all of the connected wires
into the Outlet Box
WHITE WIRE
BLACK OR RED WIRE
(
)
FROM HOUSE
GROUND WIRE
GROUND WIRE
FROM HOUSE
FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE
FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
Mounting Screw
Backplate
Mounting Ball
Shade
Harp
Candle Cover
Socket
Crystal Pendant
Cup
Outlet Box
Hanger
INSTALLATION INSTRUCTIONS
STEP 5
:
a. Install the correct Bulb referring to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
