Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

4of4

Assembly Instruction Sheet #IS-TF1508TVB

For Style TF1508TVB

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

,

.

.

.

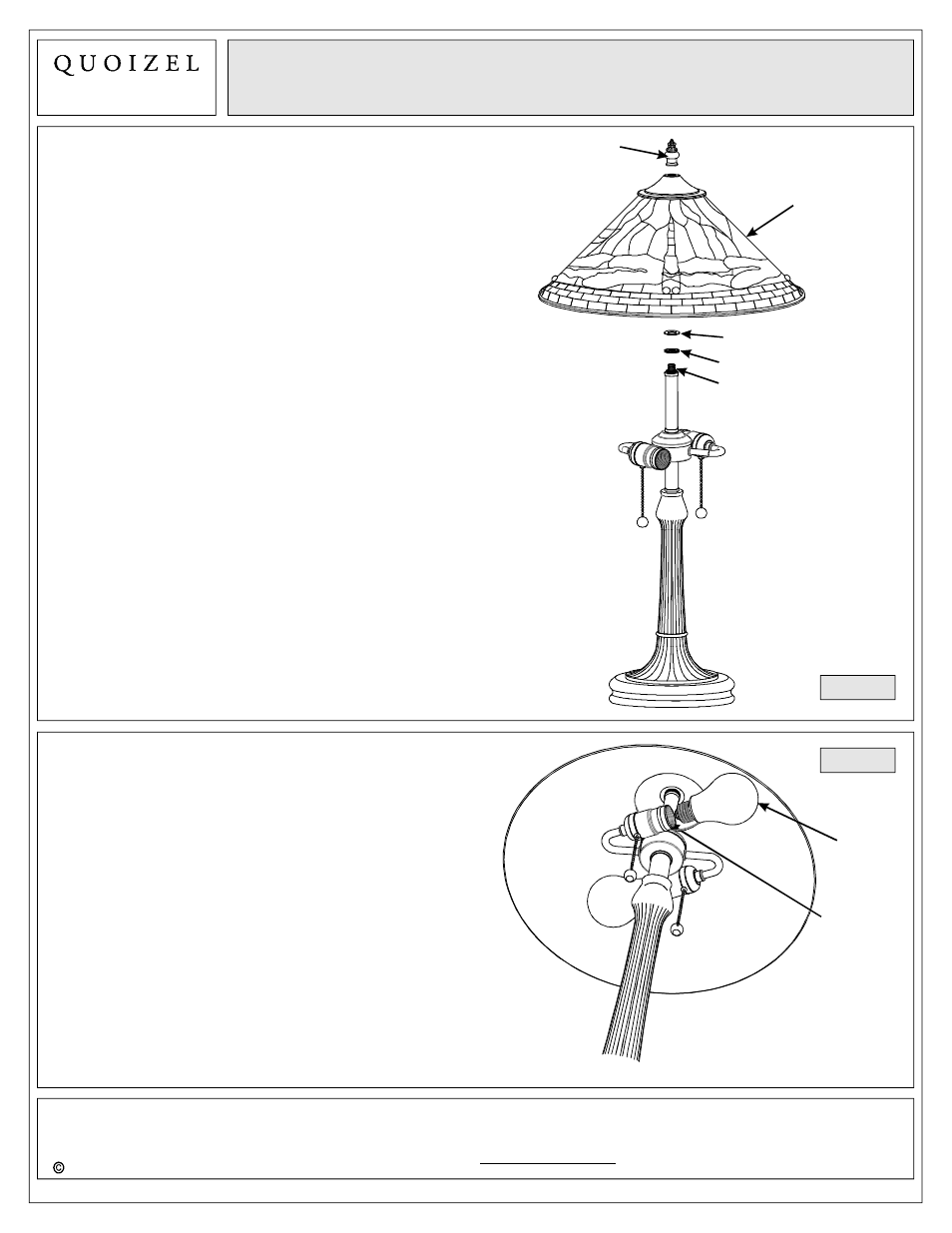

STEP 3

attach Shade to Fixture Body

-

A. Thread Big Knurled Nut (C) onto Center Stem (G).
B. Place the Flat Washer (K) and the Shade (B) over

Center Stem (G).Adjust the Big Knurled Nut (C) to
proper location for the Flat Washer (K), the Shade (B)
and Finial (A). Thread the Finial (A) onto the Center
Stem (G) until snug to secure the Shade (B).

Figure 3

Shade

Big Knurled Nut

2014 QuoizelInc.

Center Stem

Finial

STEP 4 - Install Bulb

A. This fixture uses standard bulb with standard screw

base . Maximum 75 watts.

B. Insert bulb and screw snugly into place.

Your lamp is now assembled and ready to use.
Enjoy!

Figure 4

Bulb

Socket

Flat Washer

January2014
