Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of4
Assembly Instruction Sheet #IS-TF1508TVB
For Style TF1508TVB
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2014 QuoizelInc.
Figure 2

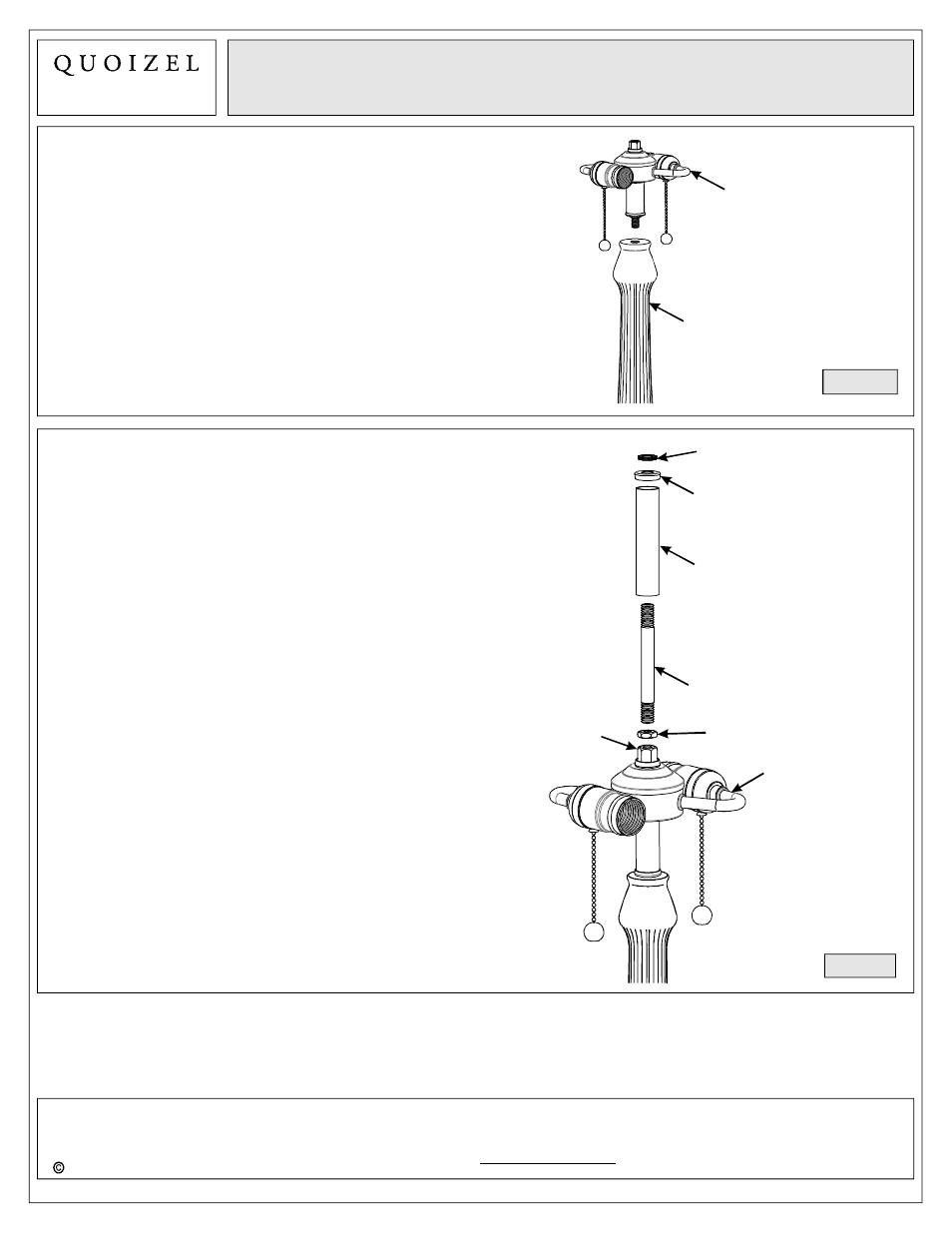

STEP 1 attach Socket Assembly to Base -
A. Thread Socket Assembly (H) to Base (I), hand tighten
until snug.
Figure 1
Base
Socket Assembly
STEP 2 Attach Center Stem to Fixture Body -
A. Screw the Hex Nut (J) onto one end of the Center Stem
(G). Thread the hex nut end of Center Stem (G) into Hex
Coupling on the top of Socket Assembly (H).
B. Please Tube (F) and Check Ring (E) over the Center
Stem (G). Secure by thread Small Knurled Nut (D) onto
the Center Stem (G). Hand tighten until snug.
Socket Assembly
Tube
Center Stem
Hex Coupling
Check Ring
Small Knurled Nut
January2014
Hex Nut
