Quoizel UST1716WT Union Station User Manual
Hardware contents package contents, Warnings and cautions

Hardware Contents
Package Contents
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax
631.231.7102
www.quoizel.com
Warnings and Cautions
1of2

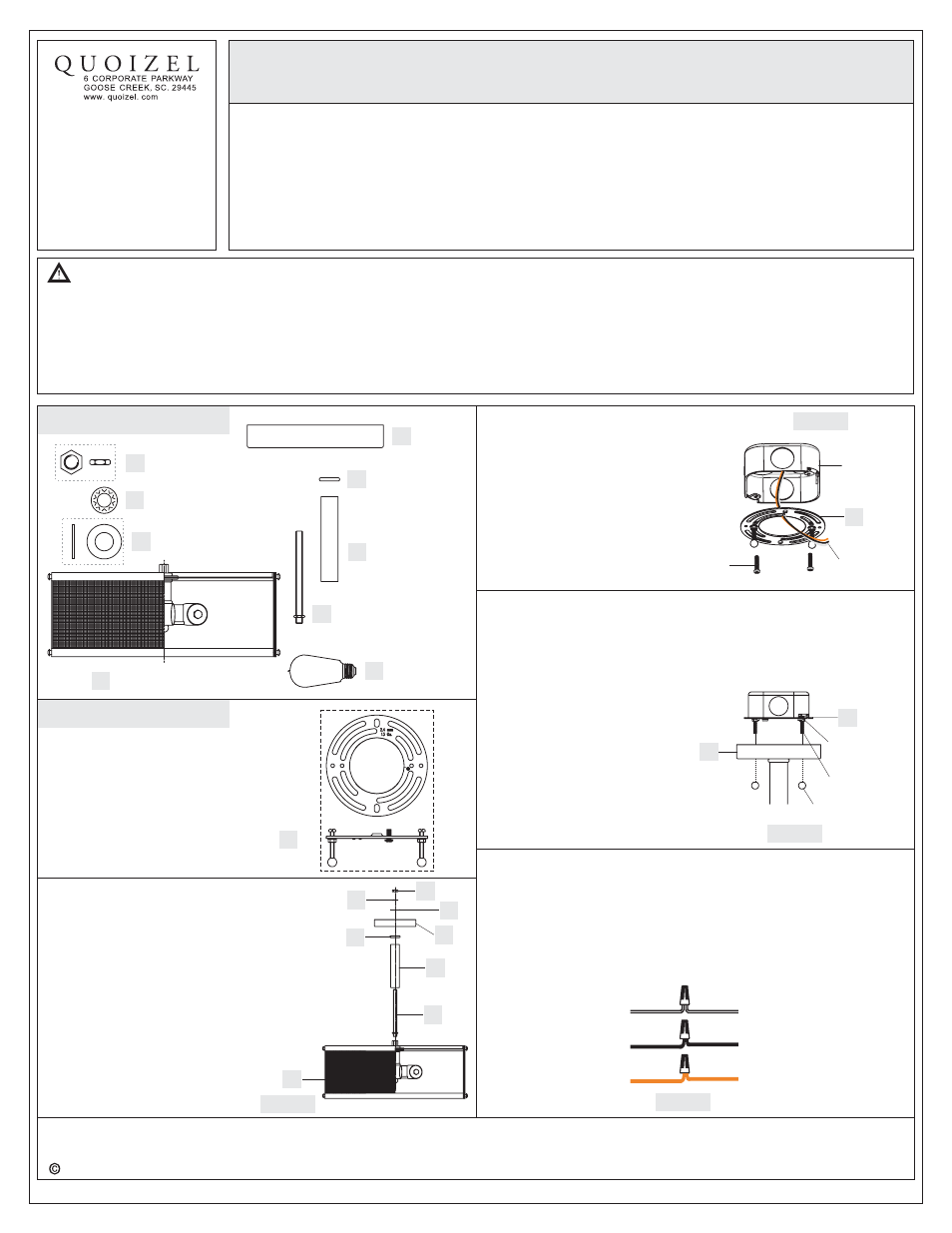

Assembly Instruction Sheet #IS-UST1716WT
For Style UST1716WT
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
May2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
B
Shade with Sockets
x 1
AA
Crossbar Assembly
x 1
A
Ceiling
Canopy
x 1
E
Check Ring
x 1
Spacer Tube
x 1
H
Figure 1
A
STEP 1
Assemble the Ceiling Canopy,
Spacer Tube and Shade with
Sockets
-
A. Thread one end of the Nipple with Hex Nuts
(G) into the Hex Coupling on the top center of
the Shade with Sockets (H). By using pliers,
thread one Hex Nut against the hex coupling
and hand tighten until snug.
B. Place the Spacer Tube (F), the Check Ring
(E), the Ceiling Canopy (D), the Flat Washer
F
D
Edison Bulb
x 3
STEP 2
Install Crossbar Assembly
-
A. Pass the supply wires through the
Crossbar Assembly (AA). Attach the
Crossbar Assembly (AA) to the Outlet
Box with the head of the Green
Ground Screw facing you. Secure it
with Outlet Box Screws (not included).
Tighten until snug
.
Supply Wires
with Ground Wire
AA
Outlet Box Screws
(not included)
Outlet
Box
Figure 2
STEP 3
Fit Ceiling Canopy to Crossbar Assembly
-
A.
Ceiling Canopy A to the
Ceiling Canopy A
ceiling
Remove mounting balls from the Crossbar Assembly (AA). Fit the
( )
Crossbar Assembly (AA) and secure with
mounting balls. Note: The
( ) should be snug
against the
and the mounting balls. If not, adjust the length of
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(3) Medium Base Decorative Filament 60W (supplied), Maximum 100W, Alternate bulb (3)
13W CFL
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Lock Washer
x 1
Hex Nut
x 1
G
Nipple with
Hex Nuts
x 1
I
B
C
E
F
G
H
(C) and the Lock Washer (B) over
the top end of the Nipple (G) in
turn. Secure them with the Hex Nut
(A) and hand tighten until snug.
Mounting Screw
Hex Nut and
Lock Washer
A
AA
Mounting Ball
Figure 3
the nipple on the Crossbar
Assembly (AA) by unscrewing
the preassembled hex nut and
lock washer and then screwing
the mounting screws in or out
of the crossbar until the correct
length is achieved. Once the
Ceiling Canopy (A) is secure,
remove the mounting ball and
Ceiling Canopy (A) and
proceed to Step 4.
STEP 4
Wire Connections
-
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
B. Connect White Supply Wire from the Outlet Box to Ribbed Side Wire
from fixture. Connect Black (or Red) Supply Wire from the Outlet
Box to Smooth Side Wire from Fixture. Connect Ground Wire from
White wire
from supply
Black wire from
supply (or Red)
Ground wire
from supply
Ribbed side wire
from fixture
Smooth side wire
from fixture
Ground wire
from fixture
Figure 5
C
Flat Washer
x 1
D
