Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
5of5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc.
Assembly Instruction Sheet #IS-PLR1716PN
For Style PLR1716PN
September2013

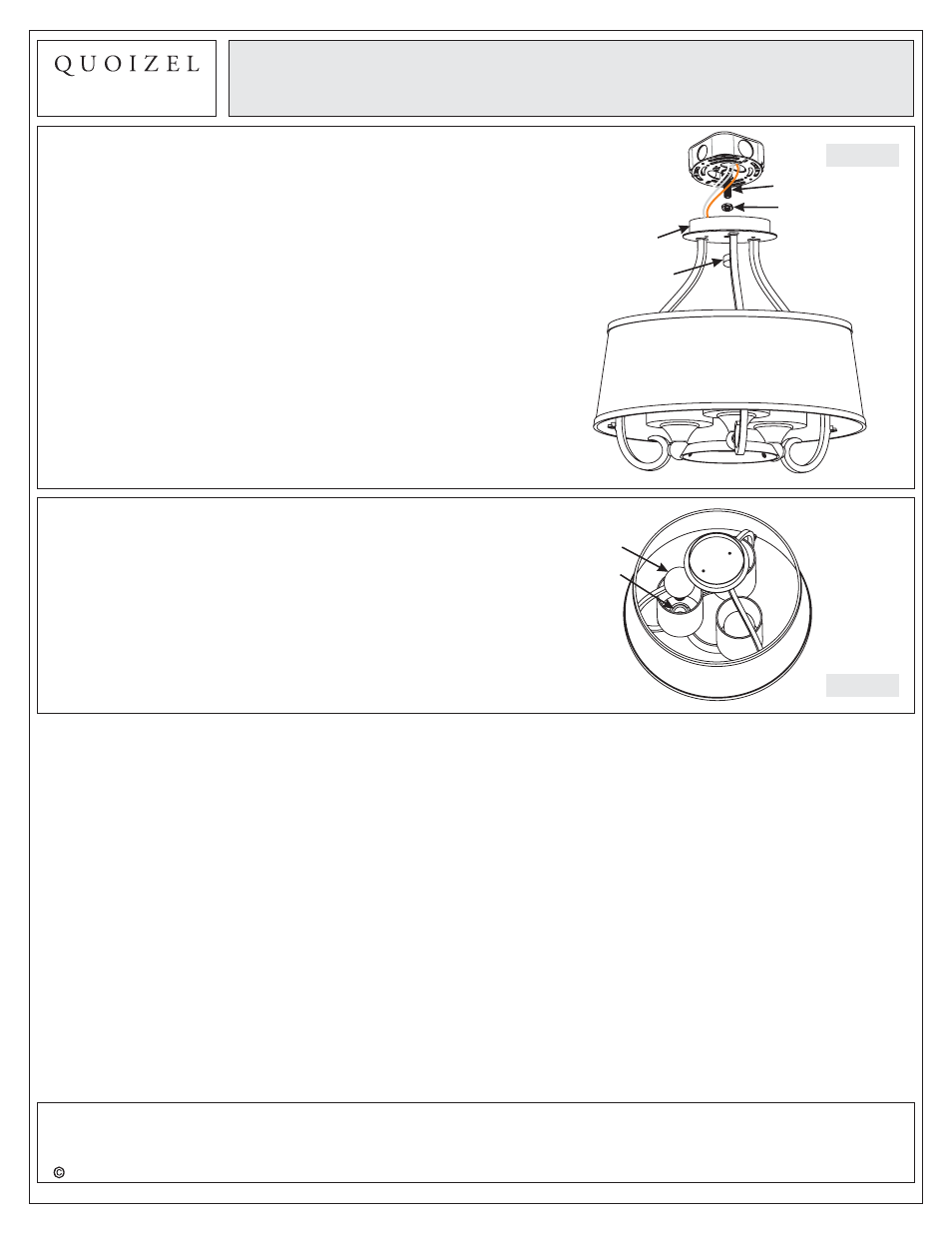

STEP 7
- Attach Ceiling Canopy to Mounting
Screw
A. Thread another Hex Nut (D) onto the end of the Nipple
(B).
B. Place the Ceiling Canopy over the Mounting Screws (B)
and secure with the Mounting Ball (E). Hand tighten
until snug.
Nipple
Mounting Ball
Ceiling Canopy
Figure 8
STEP 8
- Install Bulb
A. This fixture uses standard bulb with medium screw
base. Maximum 100 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Socket
Bulb
Figure 9
Hex Nut
