Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc.
Assembly Instruction Sheet #IS-PLR1716PN
For Style PLR1716PN

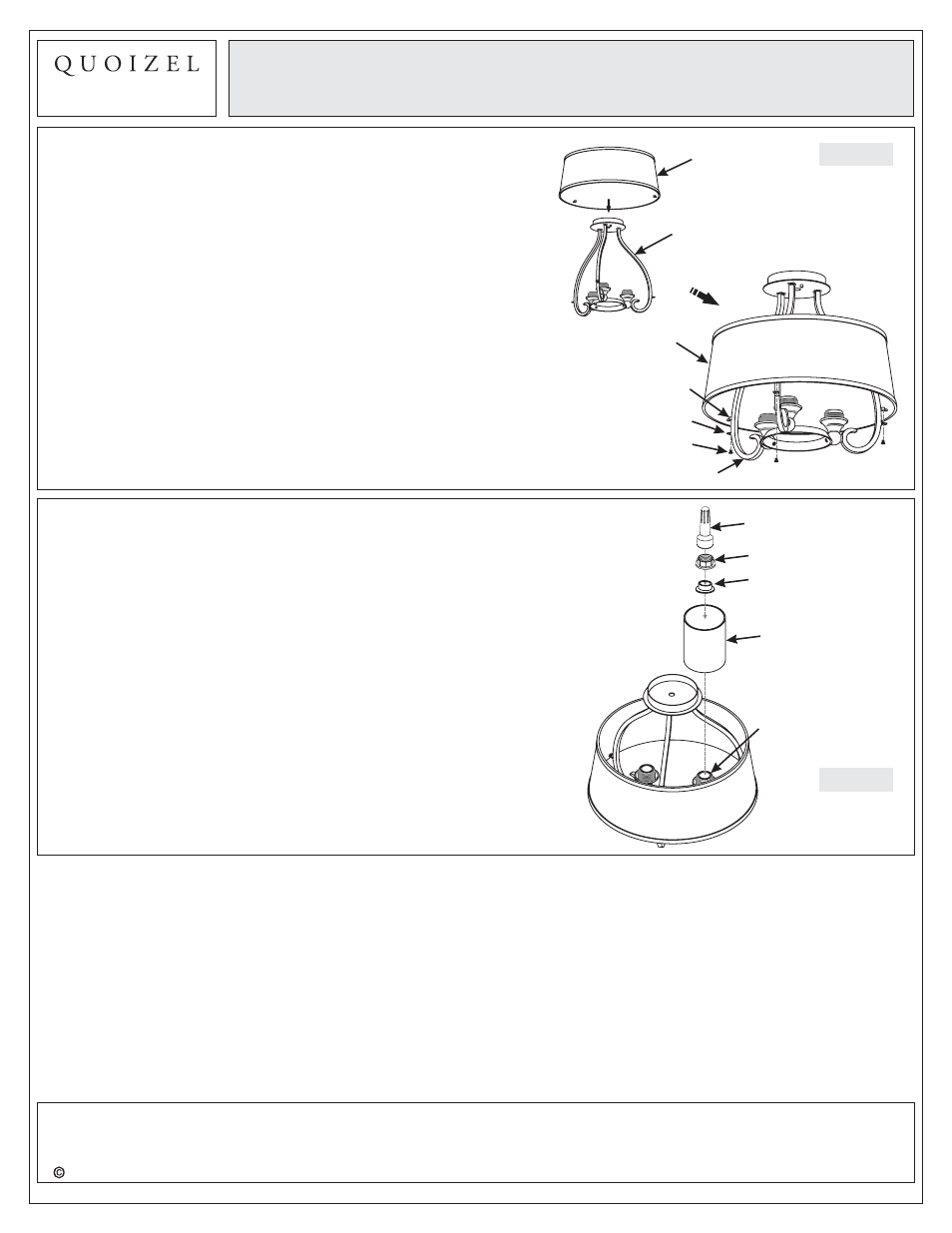

Figure 1
STEP 1 Install Organza Shade
-
A. Place the Organza Shade (I) from the top of the Socket
Assembly (H). Attach the Mounting Tabs in the bottom
edge of the Organza Shade (I) onto the Tabs on the Side
Arms. Secure the shade by threading the Lock Screws (L)
into the Mounting Tabs. Hand tighten until snug with
screwdrivers.
September2013
Organza
Shade
Socket
Assembly
Mounting Tab
Tab
Lock Screw
Side Arm
Organza
Shade
Figure 2
STEP 2 Install Glass Shade
-
A. Place the Glass Shade (G) and Steel Collar (F) over the
Socket and secure by using Socket Collar Tool (K)
threading the Socket Collar (J) onto the Socket. Hand
tighten until snug.
Side Arm
Steel Collar
Shade
Socket
Socket Collar
Socket Collar Tool
