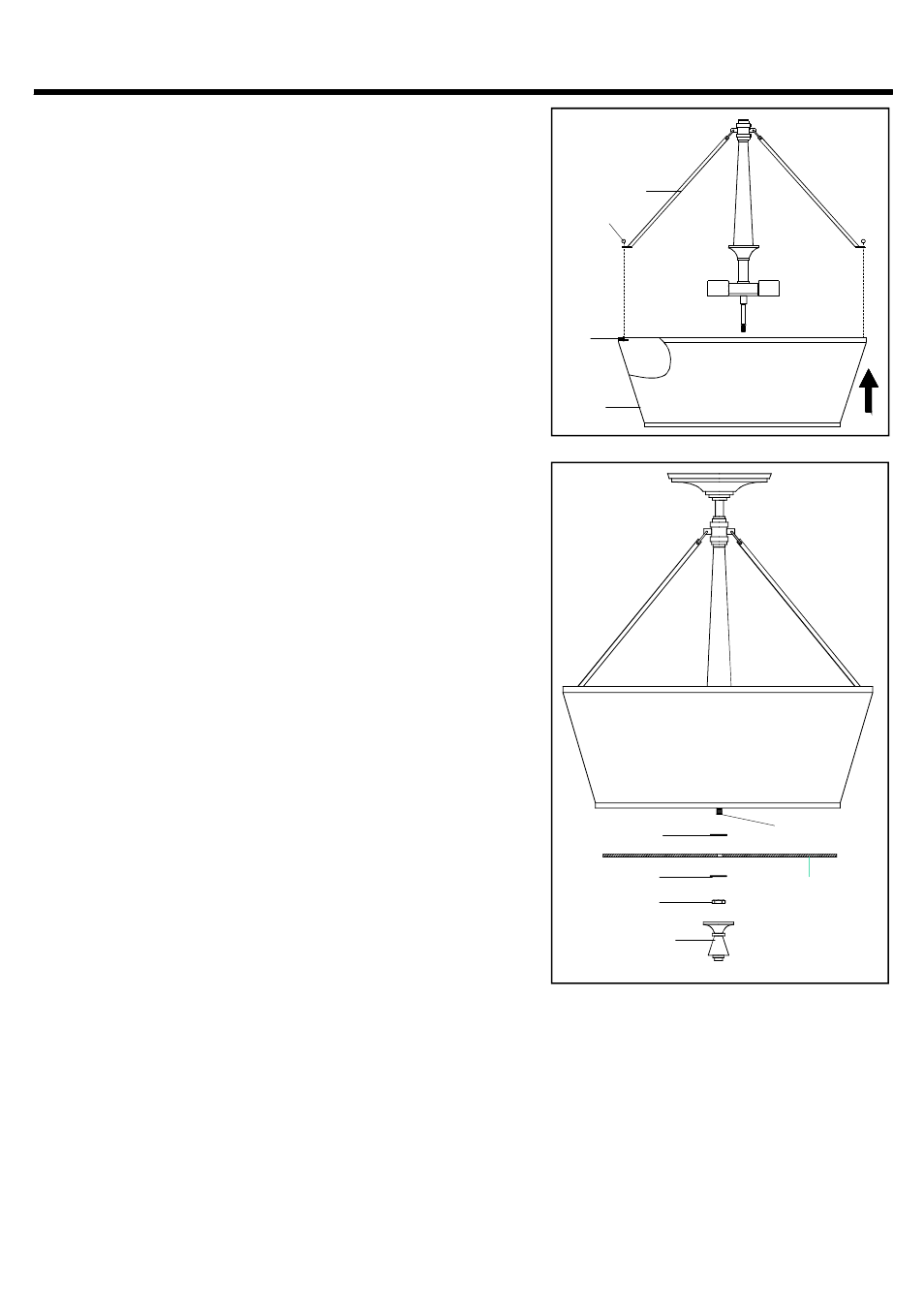

STEP 5 :
a Lift the Shade upward and make the Studs through the
hole on the ends of Side Arms. Secure the Shade by
threading Lock Balls onto the Studs. Hand tighten until
snug.
.
INSTALLATION INSTRUCTIONS
STYLE NUMBER DX1718C :
Stud
Shade
Side Arm
Lock ball
STEP 6 :
a Locate the Rubber Washer, the Glass Panel and the
Rubber Washer over the end of the Stem in turn. Secure
them with the Hex Nut and tighten gently until snug.
b Thread the Finial onto the end of the Stem and hand
tighten until snug.
.
.
Stem
Rubber Washer
Finial
Rubber Washer
Glass Panel
Hex Nut
STEP 7 :
a Install correct bulbs referring to fixture markings and or labels for maximum wattage . / .
. . . Your installation is completed now Restore electricity Retain this sheet for future reference
