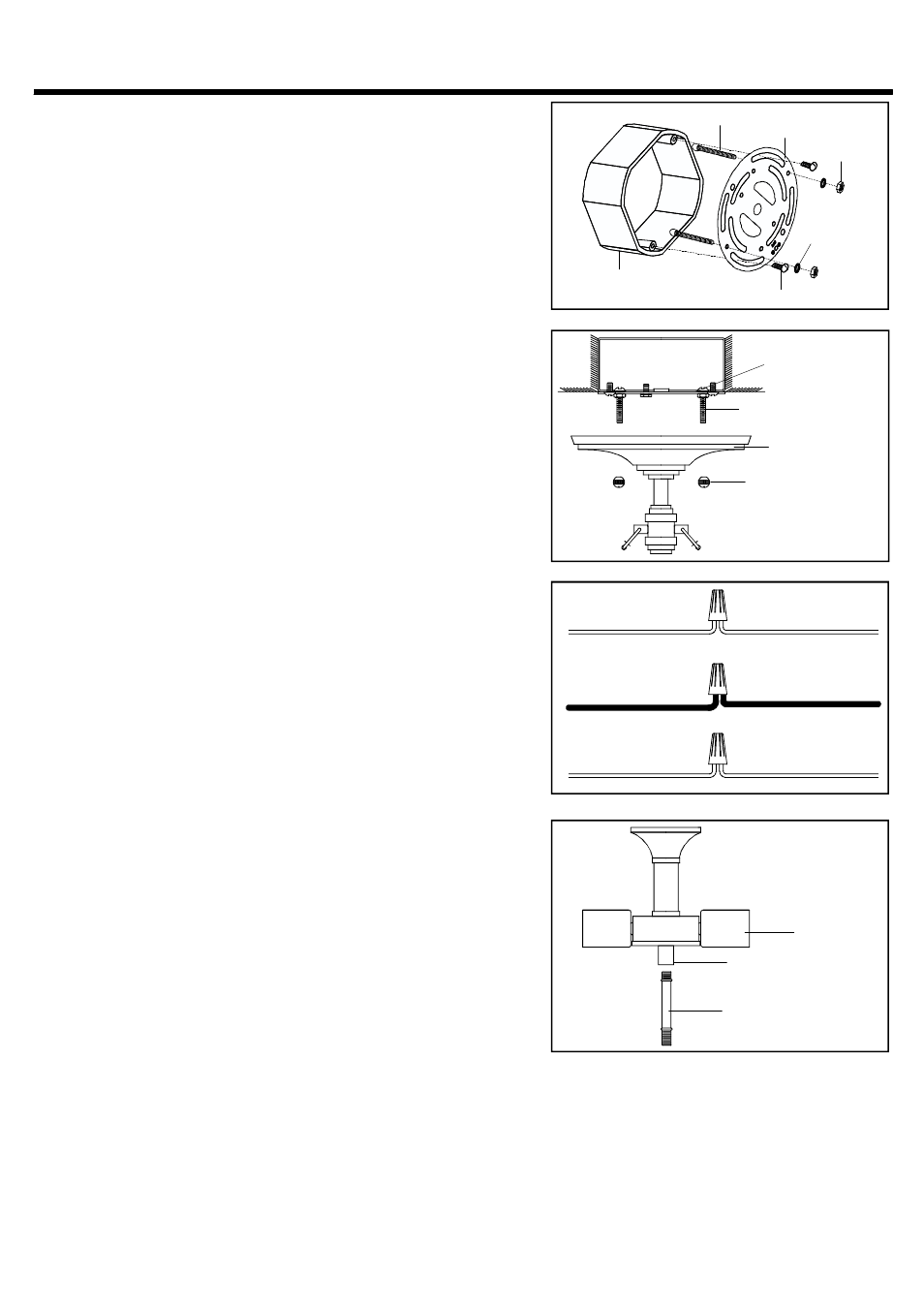

INSTALLATION INSTRUCTIONS
2 OF 3
STYLE NUMBER DX1718C :
Crossbar
Mounting Screw
Fixture Canopy
Mounting Ball
STEP 4 :
a Thread the short nipple end of the Stem into the Coupling
underside of the Socket Assembly. Hand tighten until
snug.
.
Stem
Socket
Assembly
Coupling
STEP 1:
a Screw the Mounting Screws into the Crossbar place the
Lock Washers over the Mounting Screws and thread the
Hex Nuts onto the Mounting Screws as shown
Secure the
position of the Mounting Screws by tightening the Hex
Nuts against the Crossbar
b Secure the Crossbar to the Outlet Box with Outlet Box
Screws
. ,
.
.
.
.
Outlet Box
Crossbar
Mounting Screw
Hex Nut
Outlet Box Screw
Lock Washer
STEP 2 :
.
. - . a Refer to Step 3 Wire Connections to connect wires
b. Place Fixture Canopy onto Outlet Box aligning 2 holes in
the Backplate with 2 Mounting screws threaded on the
Crossbar and secure it against wall with Mounting Balls
WHITE OR RIBBED
BLACK OR RED WIRE ( )
FROM HOUSE
GROUND WIRE GROUND WIRE
FROM HOUSE FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
STEP 3 :
* ( )
.
.
. ( )
( )
. ( )
( ).
.
.
Use Wire Connectors not supplied to connect the
wires
a Connect the House Ground Wire to the Fixture Ground
Wire.
b Connect the House White or Ribbed Wire to the
Fixture Supply Wire White or Ribbed Side .
c Connect the House Black or Red Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
carefully stuff all of the connected wires into the Outlet
Box
