Assembly Instruction Sheet #IS-CY1718PN
For Style CY1718PN

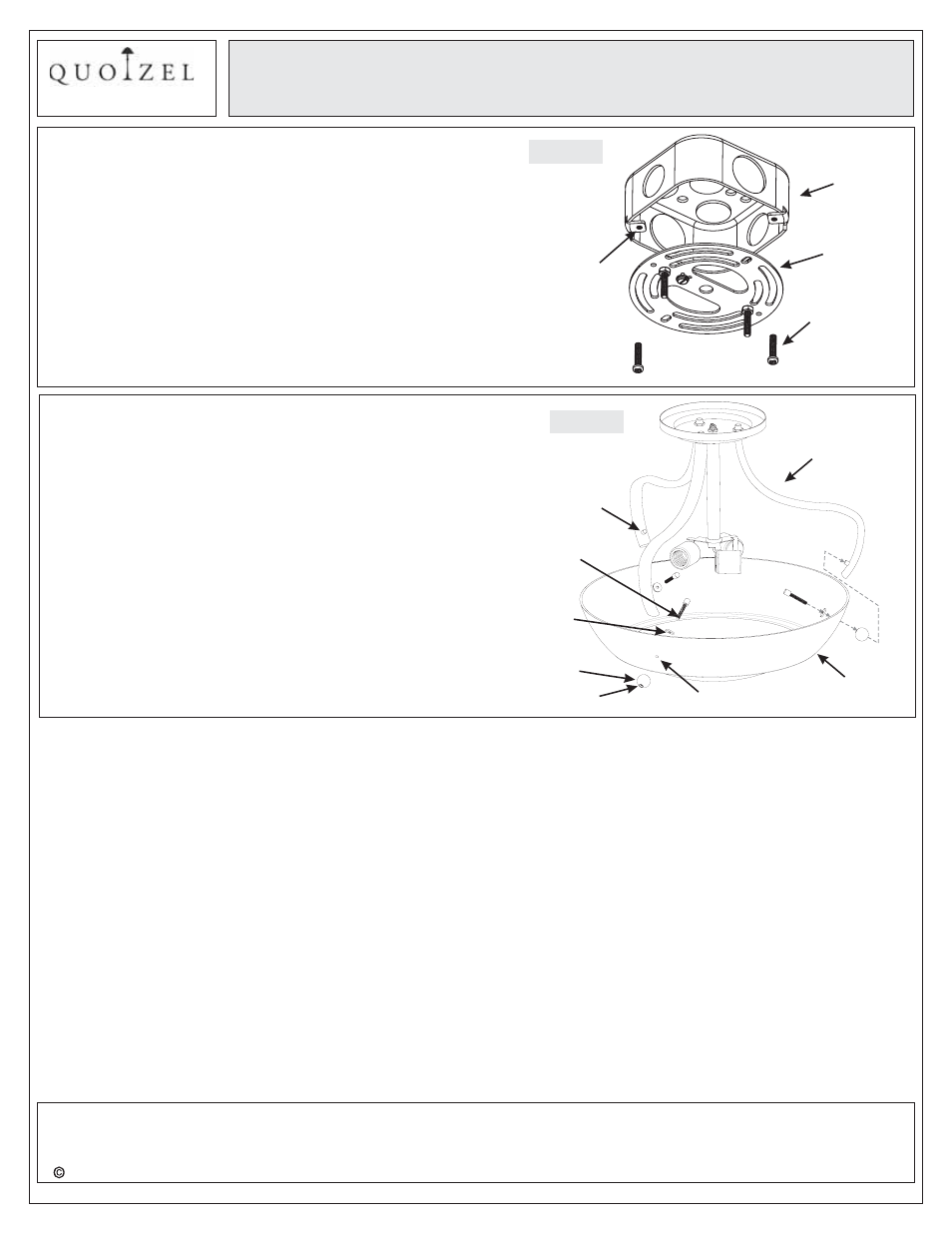

STEP 3
- Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Crossbar
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Figure 3
STEP 4
- Attach Shade to Socket Assembly
A. Pass the Lock Screw (H) through the Rubber Washer
(I), the side Hole of the Shade (G) and the Ball (J).
B. Insert the Blot on the Side Arm into the Counterbore on
the Ball (J). Thread the Lock Screw (H) into the Bolt and
hand tighten until snug to secure the Shade (G) and the
Socket Assembly (F) together.
Figure 4
Side Arm
Bolt
Rubber
Washer
Ball
Lock
Screw
Shade
Hole Counterbore
