Quoizel CY1718PN Chantilly - Manual (Page 3)

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .

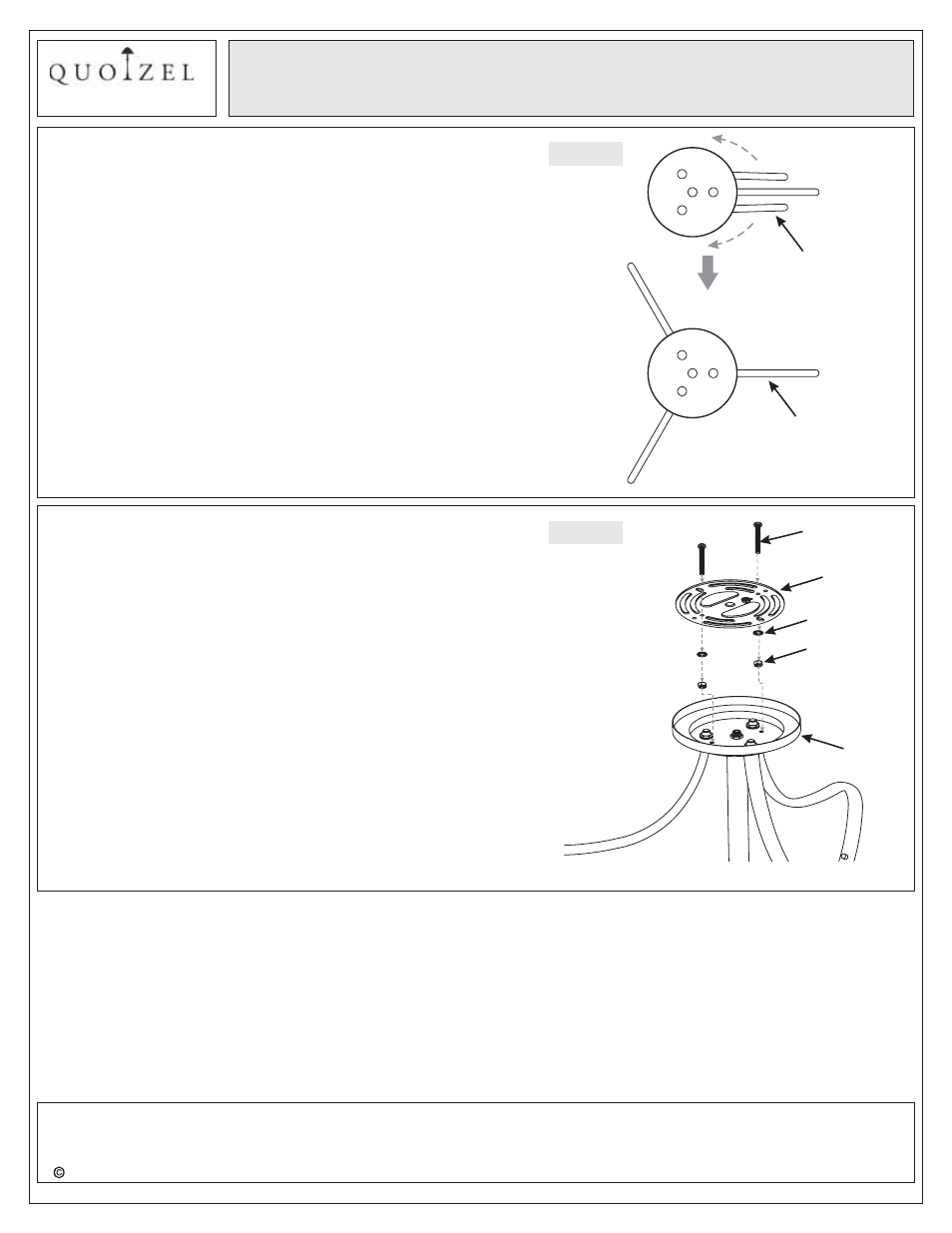

Figure 1
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2011 QuoizelInc.
3of6
Side Arm
STEP 1 Unfold Side Arms
-
A. Unfold Side Arms to proper location as shown.
August2011
Assembly Instruction Sheet #IS-CY1718PN
For Style CY1718PN
Side Arm
Figure 2
Crossbar
Mounting
Screw
Lock Washer
Hex Nut
Ceiling
Canopy
STEP 2
- Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy.
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
