Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
3of4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc.
Assembly Instruction Sheet #IS-VLA1618C
For Style VLA1618C
November2013

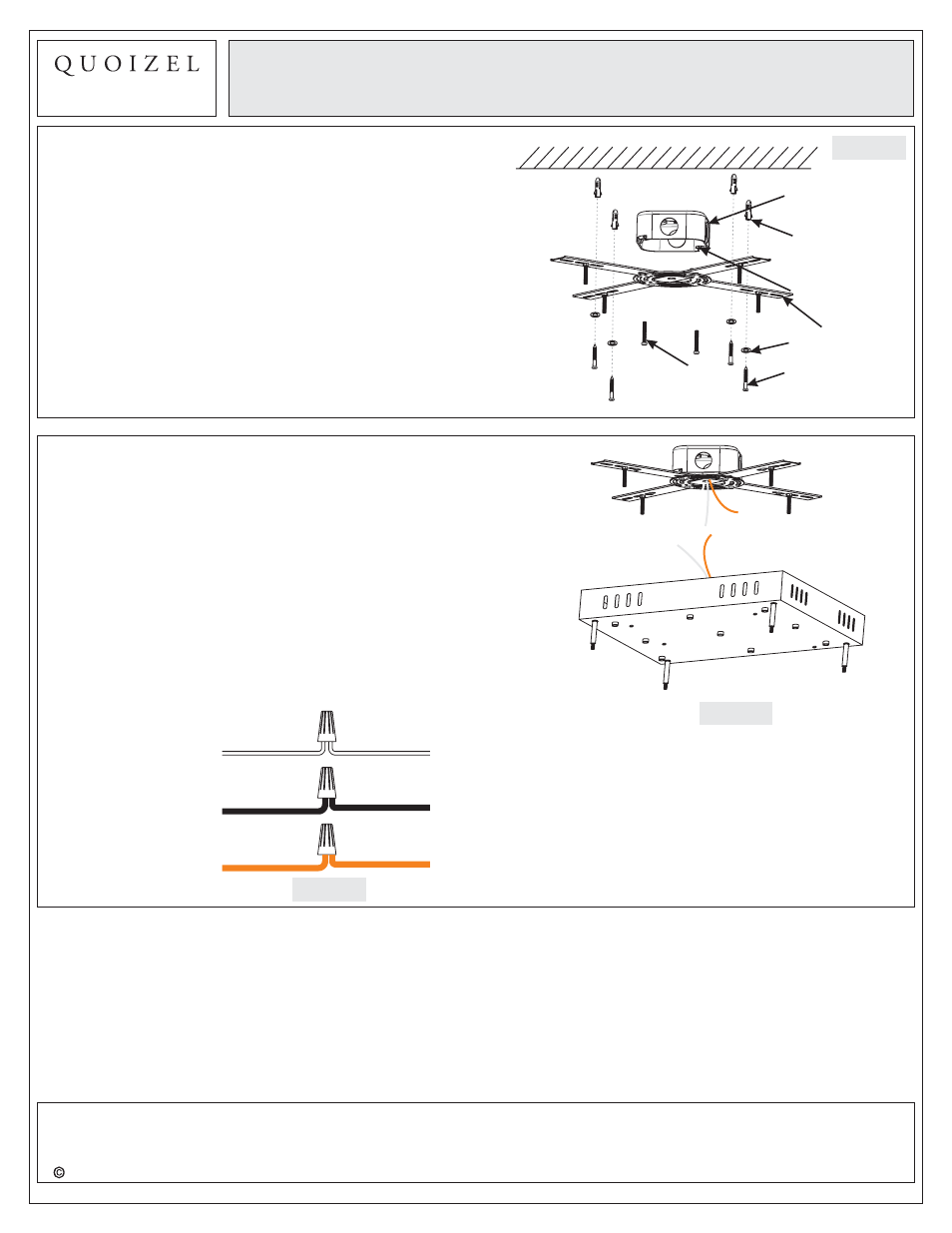

Figure 1 STEP 1
- Attach Inner Backplate to Outlet
Box
A. Place the Crossbar (A) onto the ceiling and line up one
set of holes onto mounting holes on Outlet Box. Using a
pencil, mark the locations for Wall Anchors (E).
B. Remove the Crossbar (A) and drill holes from the marks
and then push the Wall Anchors (E) into the holes.
C. Position the Crossbar (A) back onto the Ceiling. Thread
the Outlet Box Screws (not supplied) into the mounting
holes on the Outlet Box to secure it. Hand tighten until
snug.
D. Pass the Washers (I) over the Self-tapping screws (F)
and then thread the self-tapping screws (F) into the
Wall Anchors (E). Hand tighten until snug.
Figure 2
STEP 2 Make Wire Connections
-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 3
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply Ground wire from fixture
CEILING
Wall Anchor
Self-tapping
Screw
Crossbar
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Washer
