Page 6

For technical questions, please call 1-800-444-3353.

Item 68104

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Tool Set Up

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Release the Trigger and unplug the tool from its electrical outlet before

performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY:

DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR REMOVED.

Moving guards must move freely and close instantly.

1. Raise the Saw if it is locked down by pushing

down on it and pulling out the Lock Ball (21).

2. Open the Movable Guard (40) and tighten the

Bolt (39) to secure it while working on the Wheel.

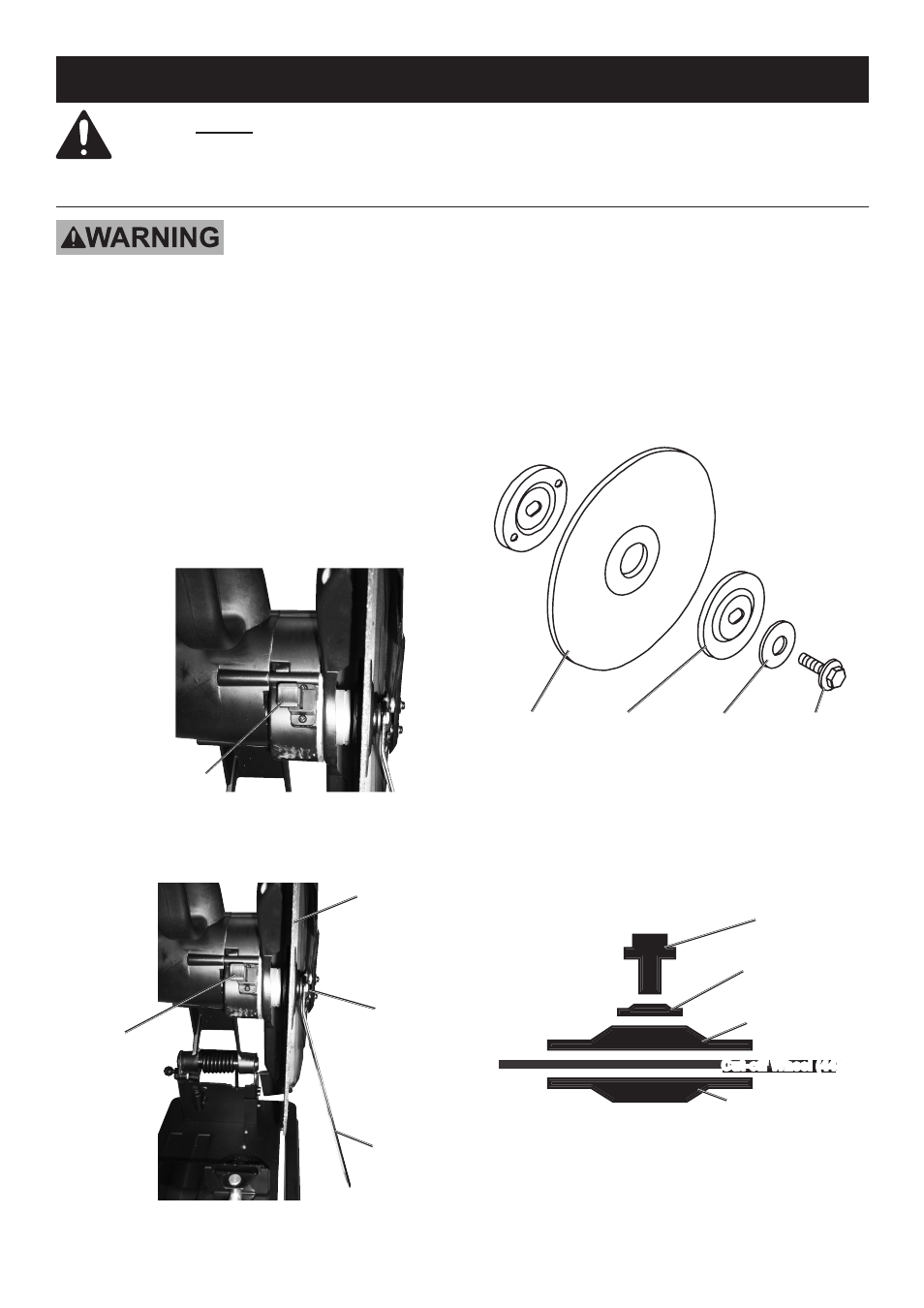

3. Push in the Spindle Lock Pin towards the

Fixed Guard as shown in Figure F. Rotate the

wheel until the Lock Pin slides into place.

Spindle Lock

Pin (61)

Figure F: Spindle Lock Pin

4. While continuing to hold down the Spindle Lock Pin,

use the Wrench (92) to remove the Arbor Bolt (41).

Spindle Lock

Pin (61)

Wrench

(92)

Cut-off

Wheel (44)

Arbor

Bolt (41)

Figure G: Removing Cut-off Wheel

5. Remove the Arbor Bolt (41), Arbor Washer (42),

Outer Flange (43), and Cut-off Wheel (44).

Arbor

Bolt (41)

Arbor

Washer (42)

Outer

Flange (43)

Cut-off

Wheel (44)

Figure H: Removing Wheel

6. Replace with a new Cut-off Wheel, and

reassemble the parts shown in Figure H.

The concave side of the Outer Flange

and Arbor Washer must face the wheel,

as shown in Figure I. While holding the Spindle

Lock Pin, tighten the Arbor Bolt with the Wrench.

Arbor

Bolt (41)

Arbor

Washer (42)

Outer

Flange (43)

Cut-off Wheel (44)

Inner Flange (46)

Figure I: Flange and Washer Cross-section

7. Loosen Depth Nut (8), and adjust

Depth Bolt (7) to prevent new Cut-off Wheel

from cutting into underlying surface.

Tighten Depth Nut afterwards. See Figure C.
