STEP 1
- Attach Inner Backplate to Outlet
Box
A. Place the Inner Backplate (D) onto the ceiling and
line up one set of holes on the Inner Backplate onto
mounting holes on the Outlet Box. Using a pencil,
mark the locations for Wall Anchors (E).
B. Remove the Inner Backplate (D) and drill holes from
the marks and then push the Wall Anchors (E) into the
holes.
C. Position the Inner Backplate (D) back onto the
Ceiling. Thread the Outlet Box Screws (not supplied)
into the mounting holes on the Outlet Box to secure it.
Hand tighten until snug.
D. Pass the Washers (I) over the Self-tapping screws
(F) and then thread the self-tapping screws (F) into
the Wall Anchors (E). Hand tighten until snug.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
4of8
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2014 QuoizelInc.
Assembly Instruction Sheet #IS-EMP1623C
For Style EMP1623C
March2014
Figure 2
STEP 2
- Attach Lanyard
A. The purpose of the lanyard is to provide the installer a
means to support the fixture from the junction box while
connecting the electrical wires. This enables the fixture
to hang from the junction box and your hands are free to
make the wire connections.
B. Turn the Button Stop so it may be inserted into the
crossbar slot. Make sure the Button Stop is completely
inside the crossbar. Slowly release the fixture to make
sure it is supported by the Button Stop. Proceed to the
wiring steps. Once you are complete with the wiring there
is nothing to do with Lanyard. The Lanyard will push into
the junction box when the fixture is placed for final
mounting.
CEILING
Wall
Anchor
Self-tapping
Screw
Inner
Backplate
Outlet
Box
Outlet Box
Screw
Mounting
Hole
Washer

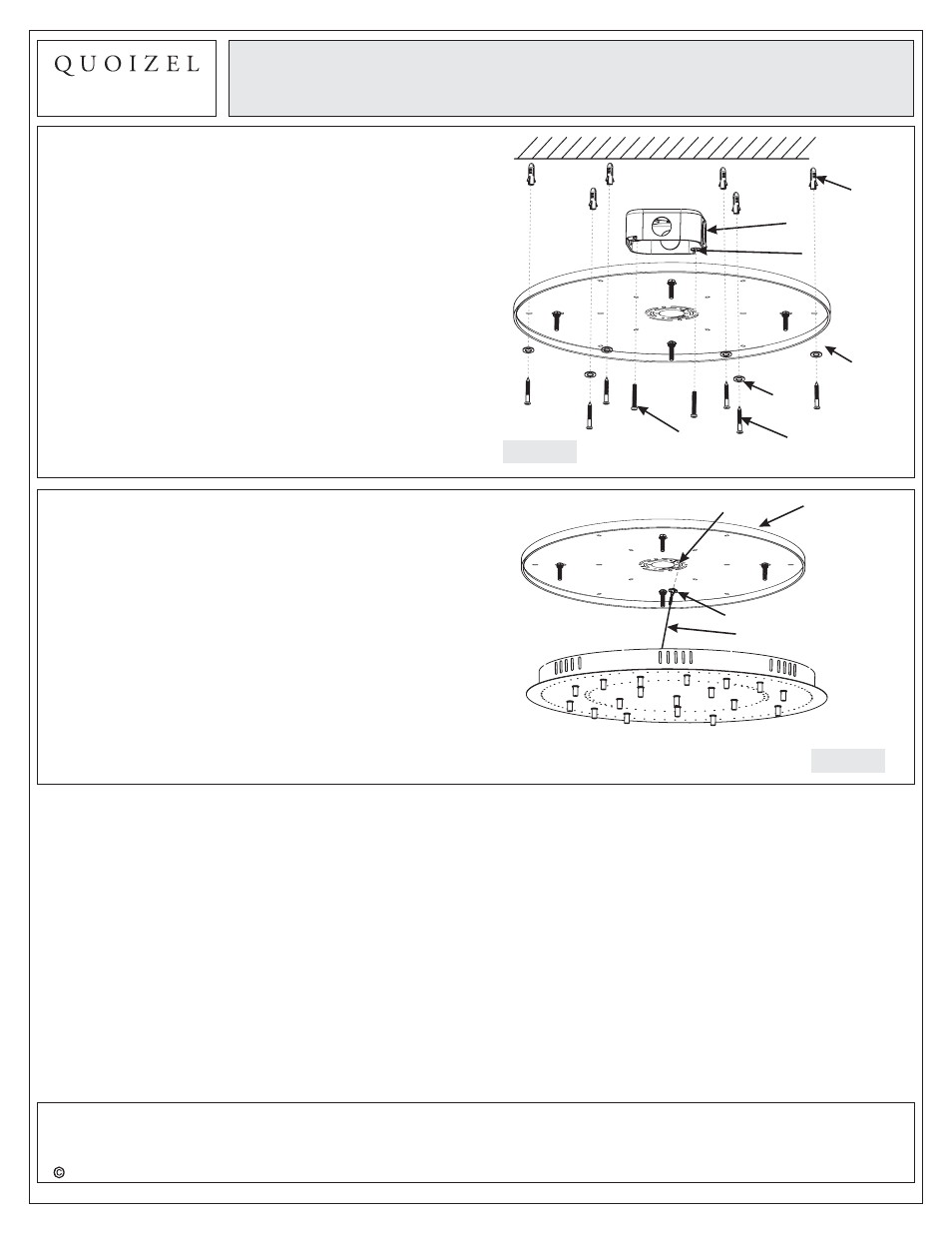

Figure 1
Inner
Backplate
Slot
Button Stop
Lanyard
