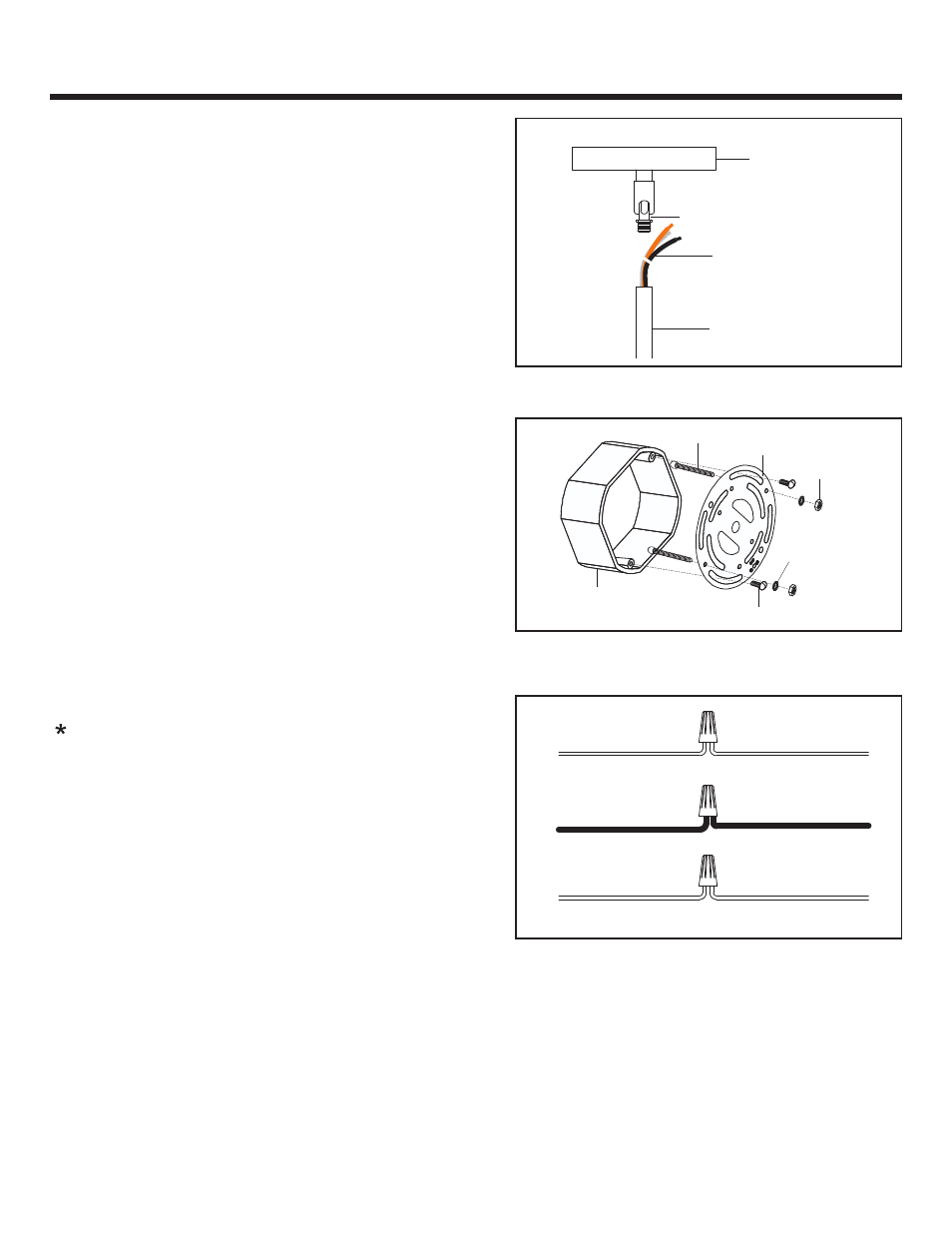

INSTALLATION INSTRUCTIONS
STEP 4:
a. Pass the Supply Wires with Ground Wire through the
Swivel and Ceiling Canopy.
b. Thread the Swivel onto the top end of the Upper Rod.
Hand-tighten until snug.
Swivel
Ceiling Canopy
Supply Wire with
Ground Wire
Upper Rod
STEP 5:
a. Screw the Mounting Screws into the Crossbar place
the Lock Washers over the Mounting Screws and
thread the Hex Nuts onto the Mounting Screws as
shown
Secure the position of the Mounting Screws by
tightening the Hex Nuts against the Crossbar
b. Secure the Crossbar to the Outlet Box with Outlet Box
Screws
,
.
.
.
Outlet Box
Crossbar
Mounting Screw
Hex Nut
Outlet Box Screw
Lock Washer
STEP 6:
a. Connect the House Ground Wire to the Fixture Ground
Wire.
b. Connect the House White (or Ribbed) Wire to the
Fixture Supply Wire (Black or Smooth Side).
c. Connect the House Black (or Red) Wire to the Fixture
Supply Wire (Black or Smooth Side).
d. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box.
WHITE OR RIBBED
BLACK (OR RED) WIRE
GROUND WIRE
WHITE OR RIBBED
BLACK OR SMOOTH
GROUND WIRE
FROM HOUSE
FROM HOUSE
FROM HOUSE
FROM FIXTURE
FROM FIXTURE
FROM FIXTURE
Use Wire Connectors (not supplied) to connect the
wires.
STYLE NUMBER: VR1503PN, VR1503ES
