Installation instructions step 2, Step 1, Step 3 – Quoizel VR1503ES Venture User Manual
Page 2
STYLE NUMBER: VR1503PN, VR1503ES
INSTALLATION INSTRUCTIONS

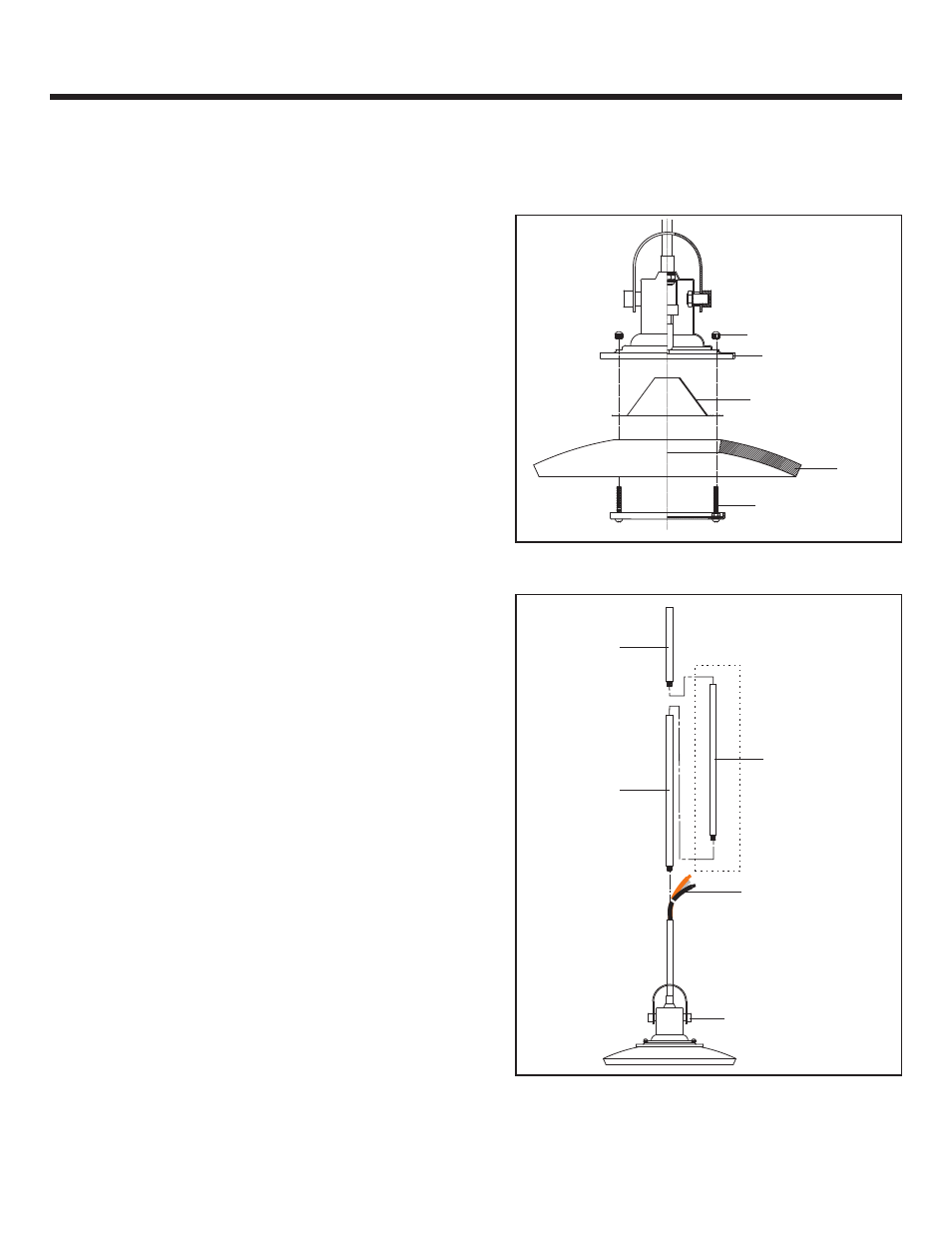

STEP 2:
a. Place the Mounting Screws on the Diffuser through the
holes on Glass Shade, the Reflex Housing and the
Shade Holder. Secure them together by threading the
Mounting Balls onto the Mounting Screws. Hand-
tighten until snug.
STEP 1:
a. Install the correct bulb referring to fixture markings and/or labels for maximum wattage. Please make sure
the Bulb is properly seated it the Socket.
IMPORTANT: Do not touch the bulb with bare hands use a cloth or glove.
Mounting Ball
Shade Holder
Reflex Housing
Diffuser with
Mounting Screws
Glass
Shade
6” Rod
12” Rod
12” Rod
Socket Assembly
Supply Wires with
Ground Wire
STEP 3:
a. Determine the Rods to be assembled according to your
desired hanging height.
b. Pass the Supply Wires with Ground Wire through the
chosen Rods and then thread Rods and Socket
Assembly together as shown. Hand-tighten until snug.
2 OF 4
