INSTALLATION INSTRUCTIONS

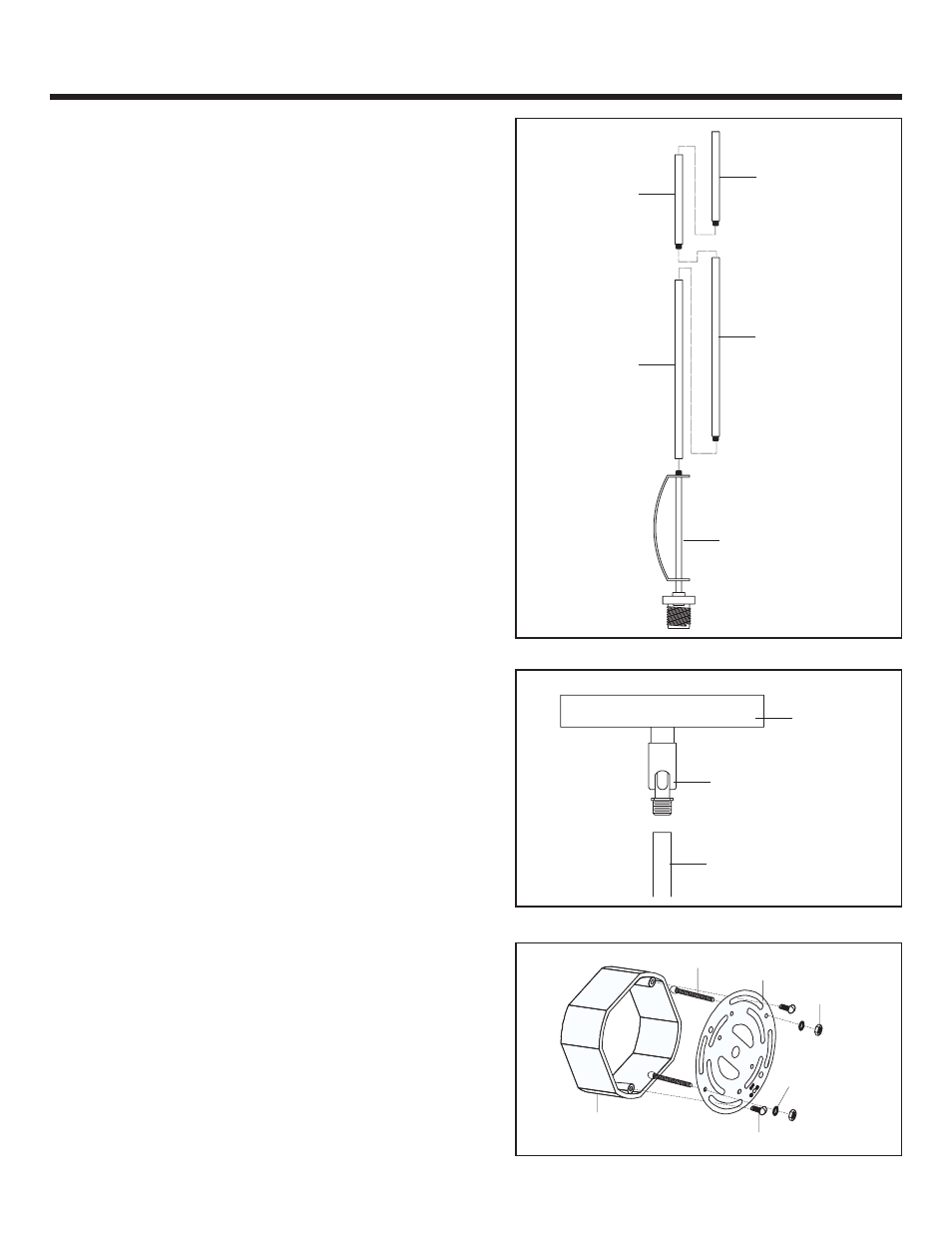

STEP 1:
a. Determine the Rods to be assembled according to your
desired hanging height.
b. Secure the chosen Rods and the Socket Assembly
together. Hand-tighten until snug.
STEP 2:
a. Screw the Swivel underside of the Ceiling Canopy to
the Upper Rod. Hand-tighten until snug.
STYLE NUMBER: TY1504AN, TY1504WT
6” Rod
12” Rod with Nipple
6” Rod
12” Rod
Socket Assembly
Ceiling
Canopy
Swivel
Upper Rod
STEP 3:
a. Screw the Mounting Screws into the Crossbar place
the Lock Washers over the Mounting Screws and
thread the Hex Nuts onto the Mounting Screws as
shown
Secure the position of the Mounting Screws by
tightening the Hex Nuts against the Crossbar
b. Secure the Crossbar to the Outlet Box with Outlet Box
Screws
,
.
.
.
Outlet Box
Crossbar
Mounting Screw
Hex Nut
Outlet Box Screw
Lock Washer
2 OF 3
