Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc. March2014
QPP1775TC
PART NUMBER
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2 "
REPLACEMENT PART DESCRIPTION REQ. NO.
1
FINISH: TUSCAN BROWN

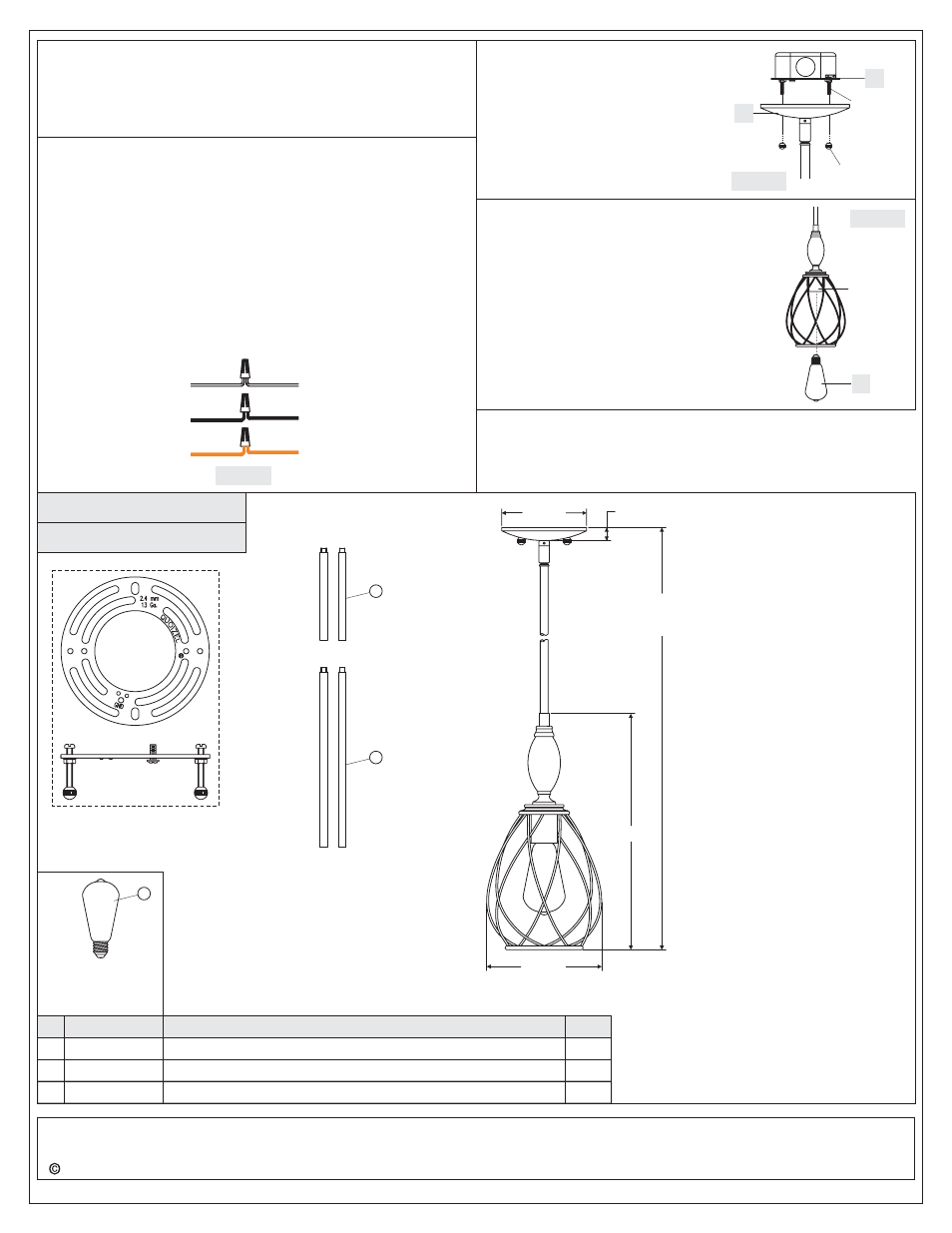

STEP 4 Wire Connections -
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
B. Connect White Supply Wire from the Outlet Box to Ribbed Side Wire
from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth
Side Wire from Fixture.
D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
Black wire from
supply (or Red)
Ground wire
from supply
Ribbed side wire
from fixture
Smooth side wire
from fixture
Ground wire
from fixture
Figure 4
Mounting
Screw
A
AA
Mounting Ball
Figure 5
STEP 5 Install Fixture Body -
A. Carefully tuck all wires into the outlet
box and position the Ceiling Canopy
(A) over the outlet box. Align the
holes in the Ceiling Canopy (A) with
the mounting screws, then attach the
Ceiling Canopy (A) using the
previously removed mounting balls.
Hand tighten until snug.
Figure 6
STEP 6 Install Bulb -
A. This fixture uses standard bulb 60W
(supplied) with a standard screw base.
Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to
use. Enjoy!
not, adjust the length of the nipple on the Crossbar Assembly (AA)
by unscrewing the preassembled hex nut and lock washer and then
screwing the mounting screws in or out of the crossbar until the
correct length is achieved. Once the Ceiling Canopy (A) is secure,
remove the mounting ball and Ceiling Canopy (A) and proceed to
Step 4.
Socket
E
5” Dia. 1”
15”
7” Dia.
53.5”
OVERALL HEIGHT
(2) 6” AND (2) 12” RODS
INCLUDED
(1)Medium Base
Decorative Filament
60W bulb (provided),
Maximum 100W.
2
3
9012EXTC
9006EXTC
I1101EC
ROD EXT TUSCAN BROWN 12"L X 0.5"D
ROD EXT TUSCAN BROWN 6"L X 0.5"D
VINTAGE BULB 60W 1910 INCANDESCENT
2
2
1
1
2
3
