Quoizel QPP1775TC Quoizel Piccolo Pendant User Manual
Hardware contents package contents, Warnings and cautions

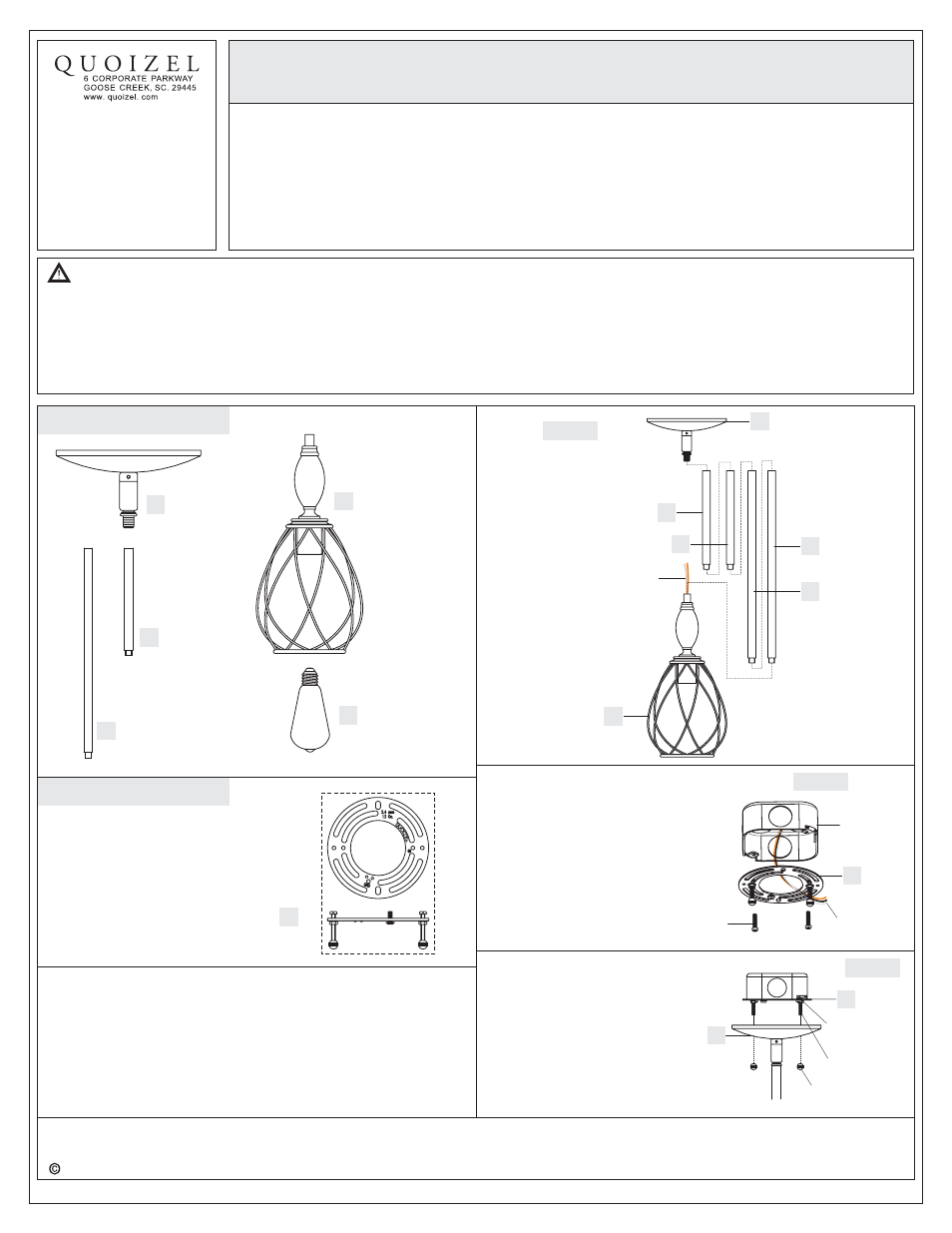

Hardware Contents
Package Contents
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax
631.231.7102
www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(1) Medium Base Decorative Filament 60W bulb (supplied), Maximum 100W, Alternate bulb
(1) 23W CFL Maximum.
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-QPP1775TC
For Style QPP1775TC
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
March2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
B
6” Rod
x 2
AA
Crossbar Assembly
x 1
A
Ceiling
Canopy
x 1
C
12” Rod
x 2
D
Socket
Assembly
x 1
E
Bulb
x 1
Figure 1
A
B
B
C
C
D
Supply Wires
and Ground Wire
STEP 2
Install Crossbar Assembly
-
A. Pass the supply wires through the
Crossbar Assembly (AA). Attach the
Crossbar Assembly (AA) to the Outlet
Box with the head of the Green
Ground Screw facing you. Secure it
with Outlet Box Screws (not included).
Tighten until snug
.
Figure 2
STEP 3
Fit Ceiling Canopy to
Crossbar Assembly
-
A.
Ceiling Canopy A to the
Ceiling Canopy A
ceiling
Remove mounting balls from the
Crossbar Assembly (AA). Fit the
( )
Crossbar Assembly (AA) and
secure with mounting balls.
Note: The
( )
should be snug against the
and the mounting balls. If
STEP 1
Assemble the Rods and the Ceiling Canopy
-
A. Determine the Rods (B/C) to be assembled to the Socket Assembly
(D) according to your hanging height.
B. Pass the supply wires and ground wire through the chosen rods
(B/C) and the Ceiling Canopy (A). Thread the Socket Assembly (D),
the chosen Rods (B/C) and the Ceiling Canopy (A) together. Hand
tighten until snug.
Mounting Screw
Hex Nut and
Lock Washer
A
AA
Mounting Ball
Figure 3
Supply Wires
with Ground Wire
AA
Outlet Box Screws
(not included)
Outlet
Box
