Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
4of6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc.
Assembly Instruction Sheet #IS-CKMS442TM
For Style CKMS442TM
October2013

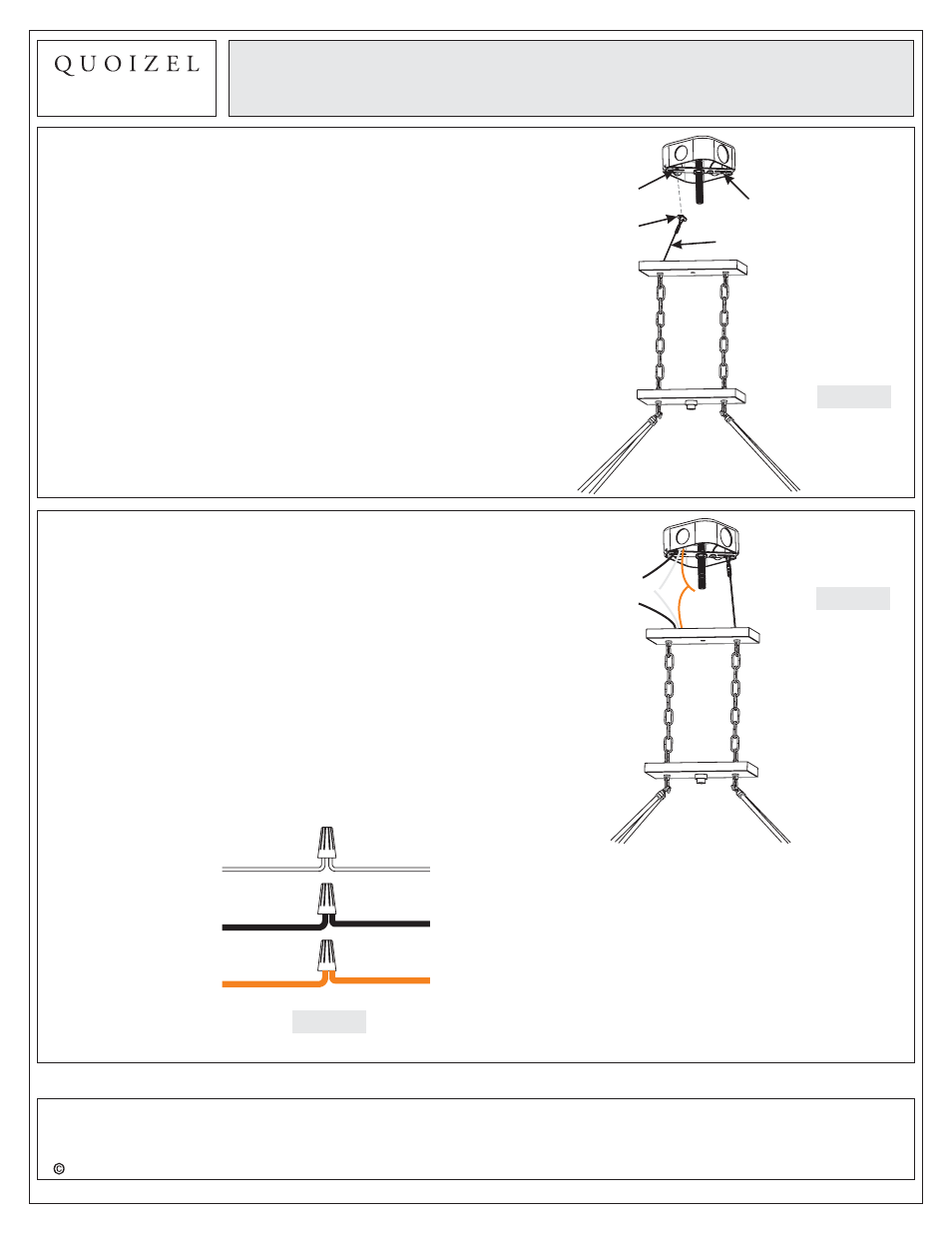

Figure 4
STEP 4
- Attach Lanyard
A. The purpose of the lanyard is to provide the installer a
means to support the fixture from the junction box while
connecting the electrical wires. This enables the fixture
to hang from the junction box and your hands are free to
make the wire connections.
B. Turn the Button Stop so it is inserted into the crossbar
slot. Make sure the Button Stop is completely inside the
crossbar. Slowly release the fixture to make sure it is
supported by the Button Stop. Proceed to the wiring
steps. Once you are complete with the wiring there is
nothing to do with Lanyard. The Lanyard will push into
the junction box when the fixture is placed for final
mounting.
Crossbar
Button Stop
Lanyard
Slot
STEP 5 Make Wire Connections
-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to
Ribbed side Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Smooth side Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 6
White wire from supply
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Figure 5
Ribbed side wire from fixture
Smooth side wire from fixture
