Assembly Instruction Sheet #IS-CKMS442TM

For Style CKMS442TM

October2013

STEP 1

- Attach Side Arm to Fixture Body

A. Place the Hook on the Side Arm (G) hook on the Loop on

the Canopy, the other side Hook on the Side Arm (G)
hook on the Loop on the Shade.

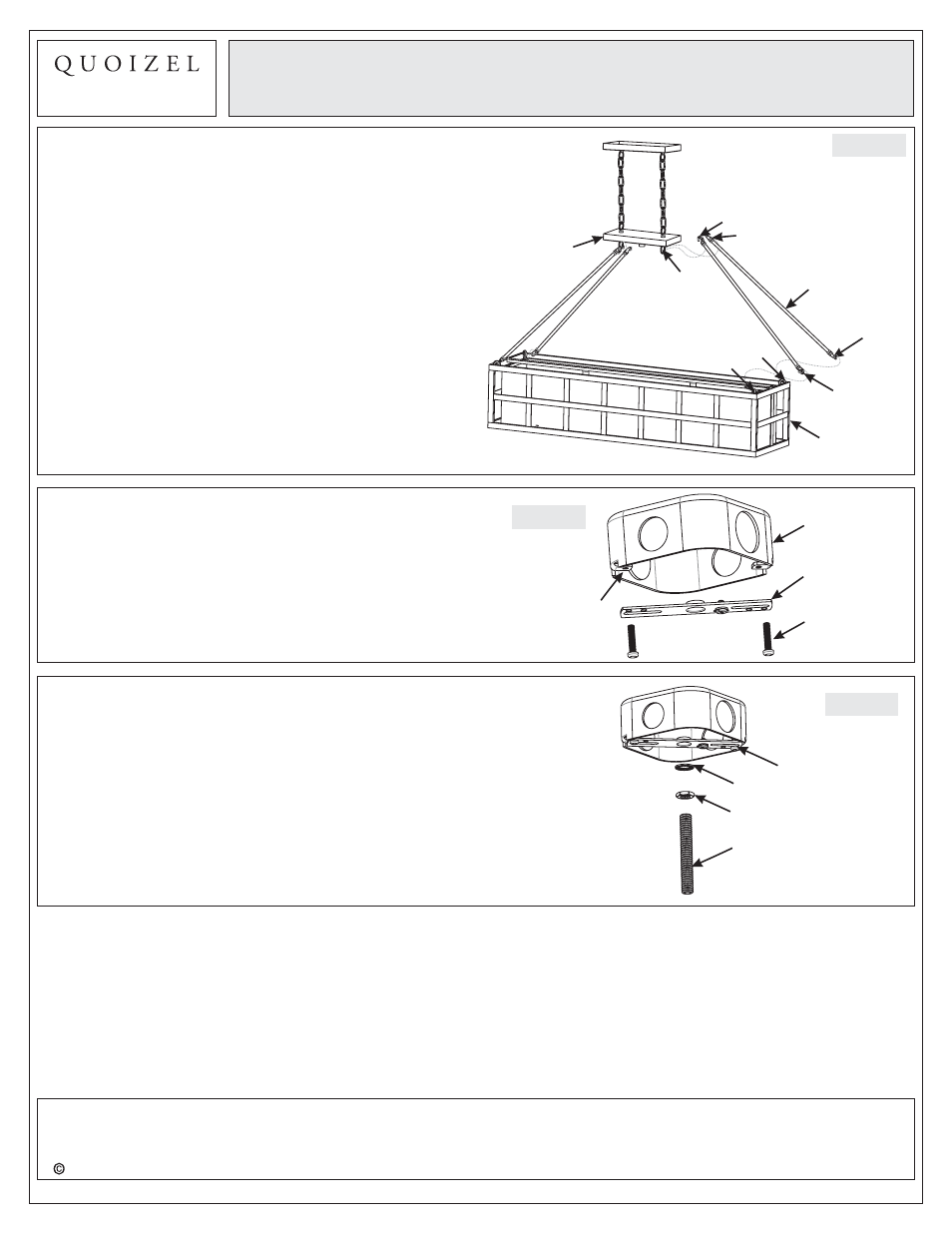

Figure 1

Canopy

Hook

Loop

Hook

Loop

Side Arm

Shade

STEP 2

- Attach Crossbar to Outlet Box

A. Secure the Crossbar (A) to the outlet box with outlet

box screws (not supplied). Tighten until snug.

Figure 2

Outlet Box
Screw (not
Supplied)

Crossbar

Outlet Box

Mounting

Hole

Figure 3

STEP 3

Attach Nipple to Crossbar

A. Thread one Hex Nut (D) onto the top end of the Nipple

(B).

B. Place one Lock Washer (C) over the top end of the

Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).

C. Using pliers, thread the Hex Nut (D) against the

Crossbar (A) and hand tighten until snug.

Socket

Crossbar

Lock Washer

Hex Nut
