Quoizel ER353BN Emery User Manual
Package contents, Warnings and cautions, Hardware contents

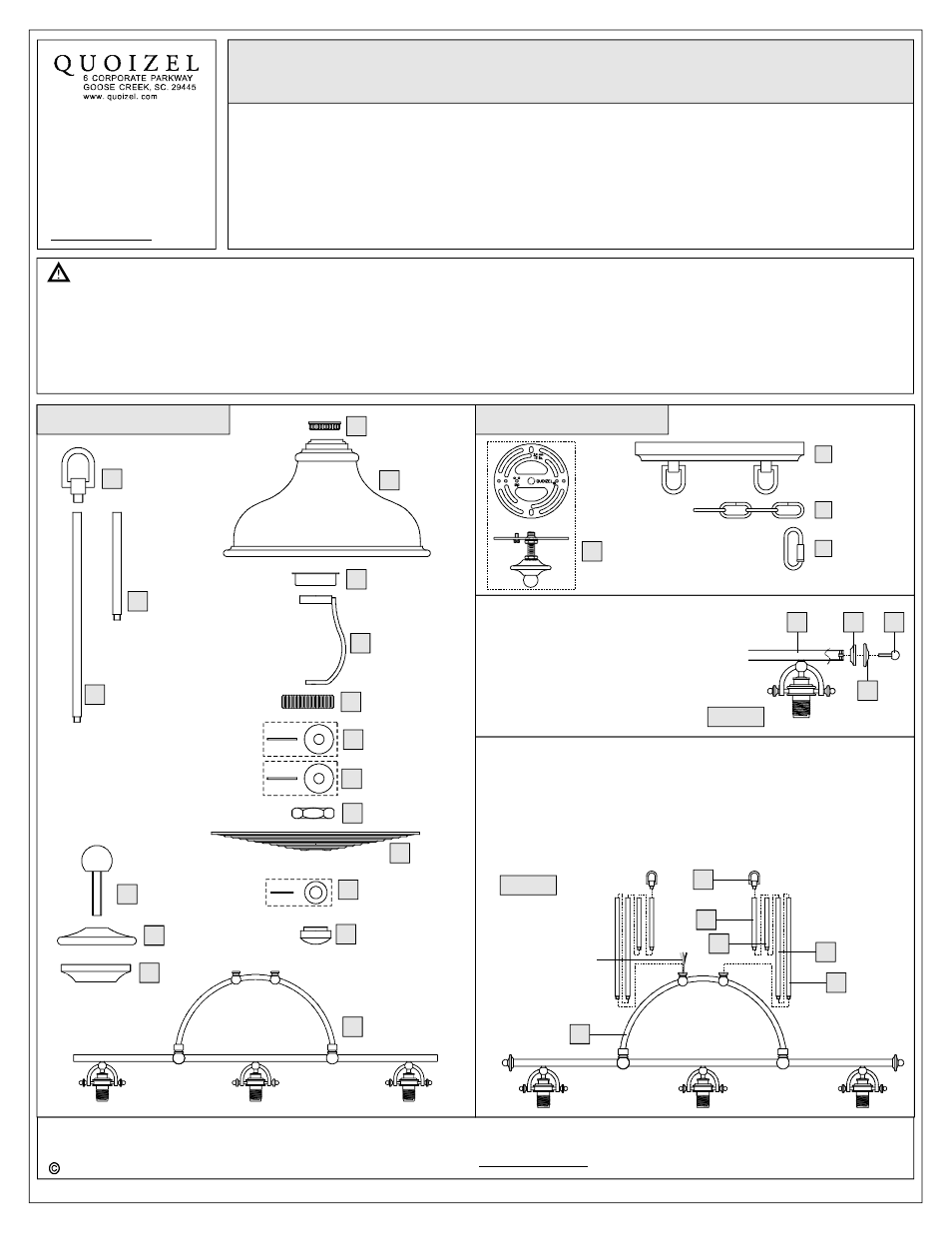

Package Contents
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax
631.231.7102
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.
Bulb Recommended:
Estimated Assembly Time:
Preparation:
(3) Medium Base 100W bulbs Maximum, Alternate bulb (3) 23W CFL Maximum.
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
1of3
Assembly Instruction Sheet #IS-ER353BN
For Style ER353BN
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
2014 QuoizelInc.
March2014
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
F
B
Steel Collar
x 3
6
” Rod
x 4
A
Fixture Loop
x 2
E
Shade
x 3
C
12
” Rod
x 4
D
Upper Collar
x 3
G
Harp with
Socket Collar
x 3
I
Flat Washer
x 3
J
Rubber Washer
x 3
Diffuser
x 3
L
Small Flat
Washer
x 3
M
Finial
x 3
STEP 1
Attach Caps to Socket
Assembly
-
A. Attach the Caps (P/Q) to the ends of the
Socket Assembly (R) and secure with the
Lock Screws (O). Hand tighten until snug.
Figure 1
Lock Screw
x 2
N
Cap A
x 2
O
Cap B
x 2
R
Socket
Assembly
x 1
Hardware Contents
AA
Crossbar
Assembly
x 1
BB
Ceiling
Canopy
x 1
CC
Fixture Chain
x 2
DD
Quick Link
x 4
STEP 2
Assemble the Rods and the Fixture Loop
-
A. Determine the Rods (B/C) to be assembled to the Socket Assembly
(R) according to your hanging height.
B. Pass the supply wires and ground wire through the chosen rods
(B/C) and the Fixture Loop (A). Thread the Socket Assembly (R),
the chosen Rods (B/C) and the Fixture Loop (A) together. Hand
tighten until snug.
Figure 2
R
Supply Wires
and Ground Wire
C
B
B
A
R
C
H
Nipple
x 3
K
Hex Nut
x 6
P
Q
Q
P
O
