INSTALLATION INSTRUCTIONS
3 OF 3

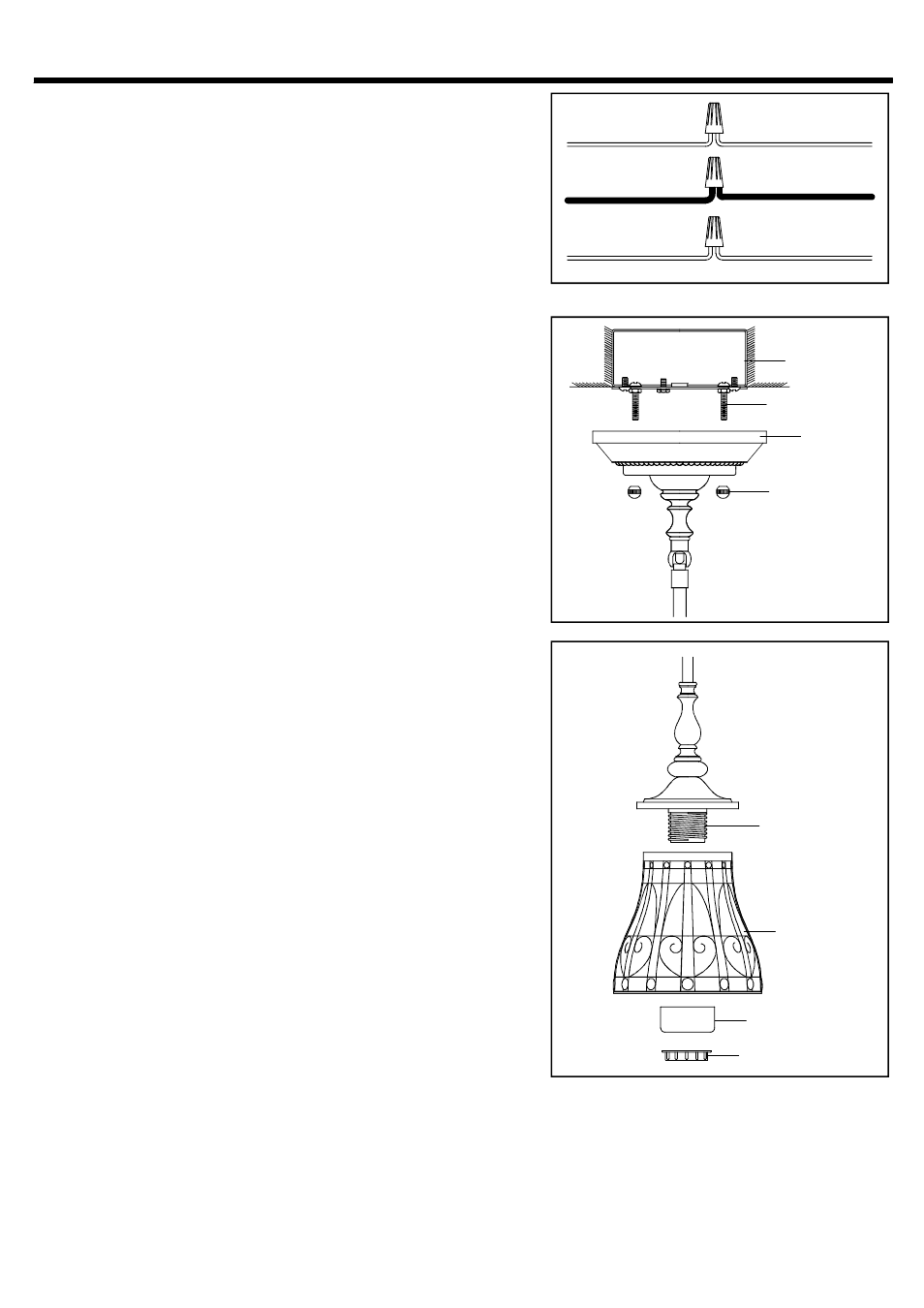

STEP 5:
a Place the Ceiling Canopy over the Mounting Screws and
thread Mounting Balls onto the Mounting Screws to secure
it. Hand tighten until snug.
.
Outlet Box
Mounting Screw
Ceiling
Canopy
Mounting Ball
STEP 7
.
:
a Install the correct Bulb referring to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
STEP 6:
a Place the Shade and the Steel Collar over the Socket as
shown Secure by threading the Socket Collar onto
the Socket Hand tighten until snug
.
.
. .
Socket
Shade
Steel Collar
Socket Collar
STEP 4 :
* ( ) .
.
.
( )
. ( )
( ).
.
.
Use Wire Connectors not supplied to connect the wires
a Connect the House Ground Wire to the Fixture Ground
Wire.
b Connect the House White Wire to the Fixture Supply Wire
White or Ribbed Side .
c Connect the House Black or Red Wire to the Fixture
Supply Wire Black or Smooth Side
d Wrap each connection with approved electrical tape and
carefully stuff all of the connected wires into the Outlet
Box
WHITE WIRE
BLACK OR RED WIRE ( )
FROM HOUSE
GROUND WIRE GROUND WIRE
FROM HOUSE FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
STYLE NUMBER TFAV156VB :
