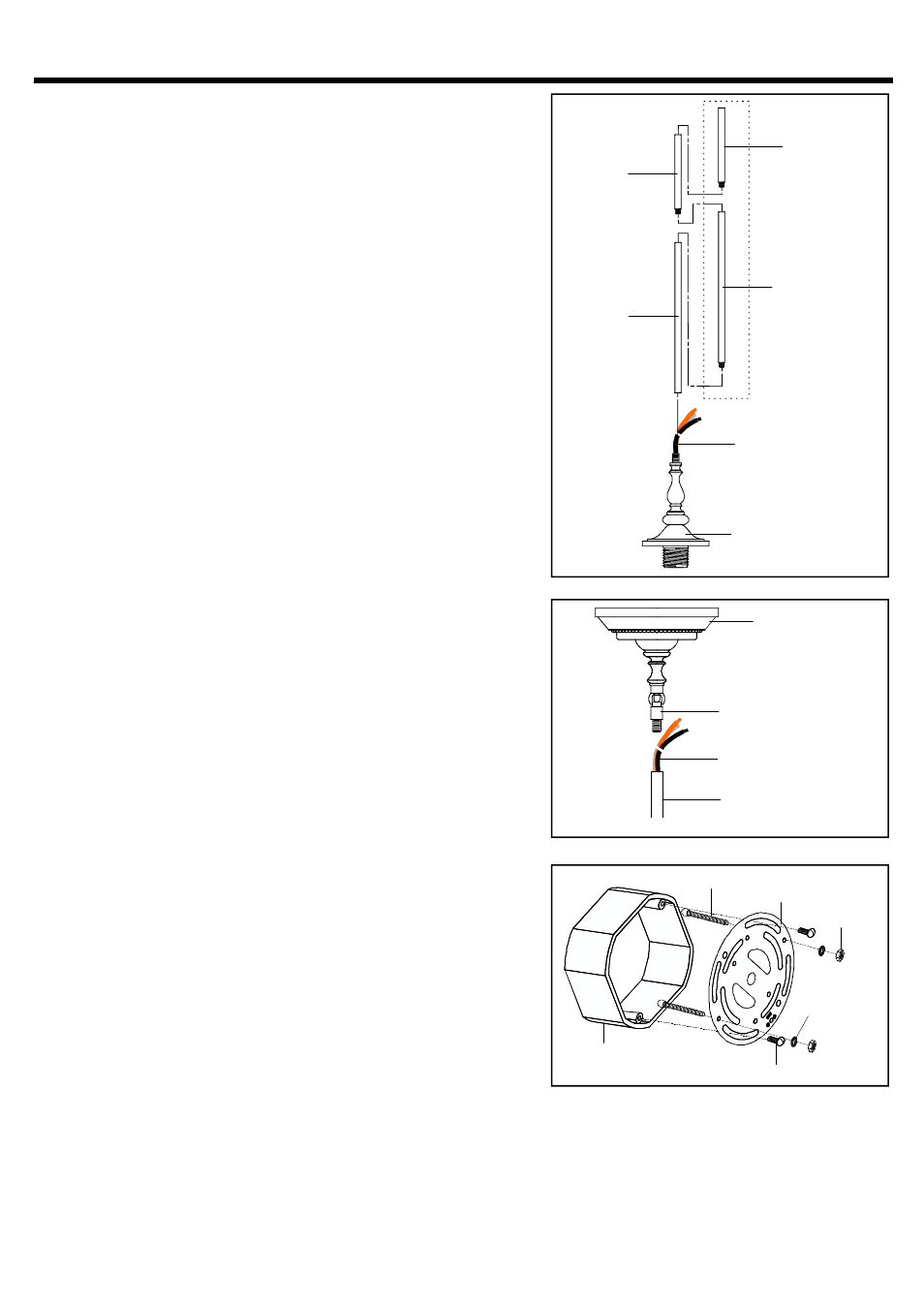

STEP 1 :
a. Determine the Rods to be assembled according to your
desired hanging height.
b. Pass the Supply Wires with Ground Wire through the
chosen Rods and then thread the Rods and Socket
Assembly together as shown. Tighten until snug.
STEP 2 :
.
. "
a Pass the Supply Wires with Ground Wire through the
Swivel and Ceiling Canopy.
b Thread the Swivel onto the top end of the 6 Rod and hand
tighten until snug.
Swivel
Ceiling Canopy
Supply Wire with
Ground Wire
6 Rod "
STEP 3:
a Screw the Mounting Screws into the Crossbar place the
Lock Washers over the Mounting Screws and thread the
Hex Nuts onto the Mounting Screws as shown
Secure
the position of the Mounting Screws by tightening the Hex
Nuts against the Crossbar
b Secure the Crossbar to the Outlet Box with Outlet Box
Screws
. ,
.
.
.
.
Outlet Box
Crossbar
Mounting Screw
Hex Nut
Outlet Box Screw
Lock Washer
2 OF 3
INSTALLATION INSTRUCTIONS STYLE NUMBER TFAV156VB :
6” Rod
12” Rod
12” Rod
with Nipple
6” Rod
Socket Assembly
Supply Wires with
Ground Wire
