Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
5of5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
2014 QuoizelInc.
Assembly Instruction Sheet #IS-CKAD836PN
For Style CKAD836PN

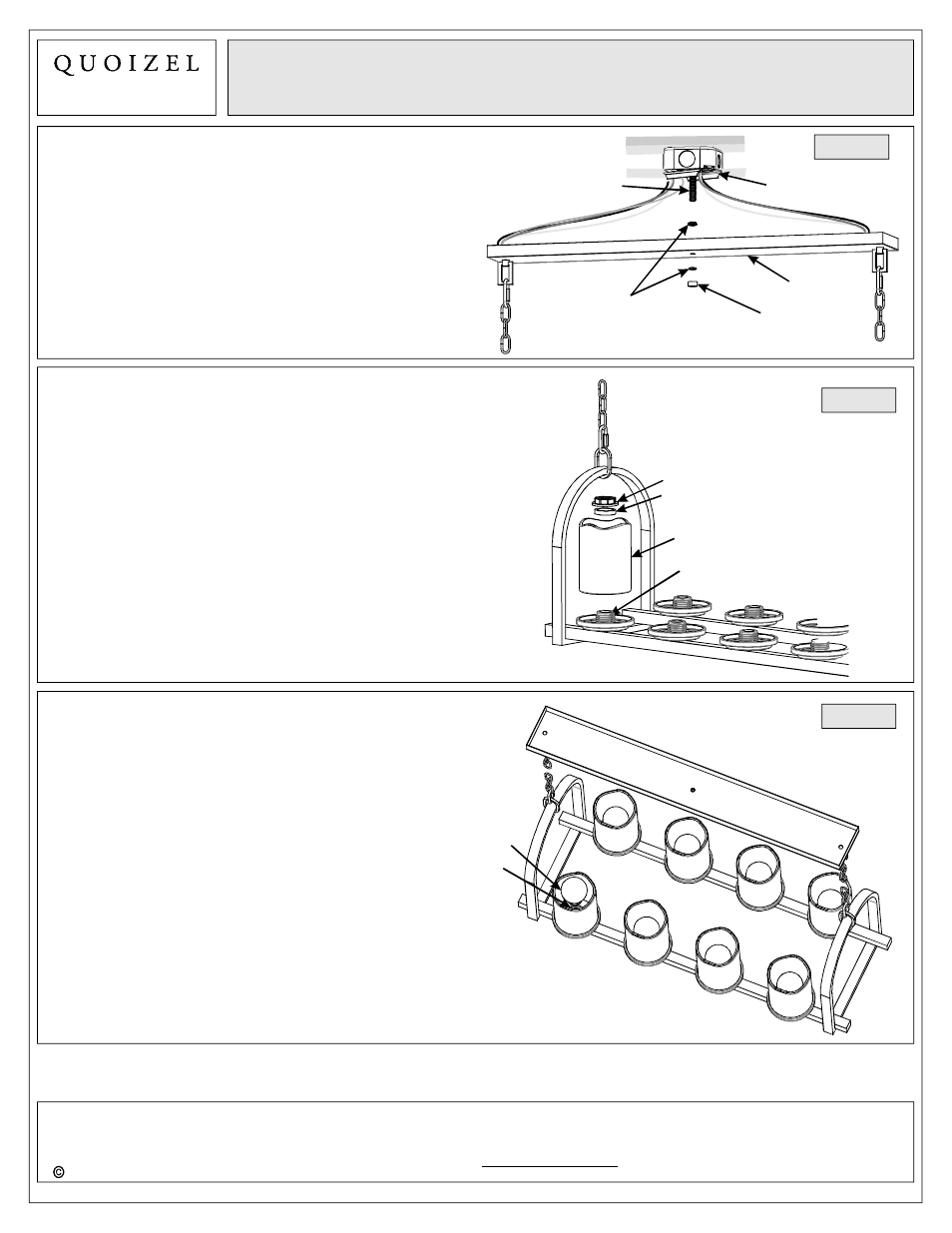

STEP 6
Attach Ceiling Canopy
-
A. Thread one Hex Nut onto the Nipple (C) and adjust the
Hex Nut (E) to proper location so that the Ceiling
Canopy (H) attach onto it after assembly.
B. Pass the Ceiling Canopy (H) over the end of the Nipple
(C) and secure with another Hex Nut (E). Hand tighten
until snug.
C. Thread the Finial (F) onto the end of Nipple (C) and
hand tighten until snug.
Figure 7
Finial
Crossbar
Nipple
Ceiling
Canopy
Hex Nut
Shade
Figure 8
Socket Collar
Socket
STEP 7 - Attach Shade to Fixture Body
A. Place Shade (J) and Steel Collar (K) over the Socket,
secure by threading Socket Collar (I) to Socket. Tighten
until snug.
STEP 8
Install Bulb
-
A. This fixture uses standard bulbs with a standard screw
base. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Bulb
Socket
Figure 9
Steel Collar
June2014
