Quoizel YU5149IB Yuma User Manual
Assembly / installation instructions

OUTLET BOX
HOUSE SUPPLY and
GROUND WIRES
OUTLET BOX SCREWS
not supplied
(
)
CROSSBAR
LOCK WASHER A
LOCK NUT A
NIPPLE
LOCK NUT B
LOCK WASHER B
CANOPY CHAIN LOOP
FIXTURE SUPPLY
and GROUND WIRE
FIXTURE CHAIN
CEILING CANOPY
CANOPY LOCK RING
FIXTURE SUPPLY
and GROUND WIRE
FIXTURE LOOP
CENTER COLUMN
FINIAL
SUPPORT ARM
SOCKET
SHADE
HOLDER
SHADE
SOCKET
COLLAR
SOCKET COLLAR
TOOL(supplied)
QUICK LINK

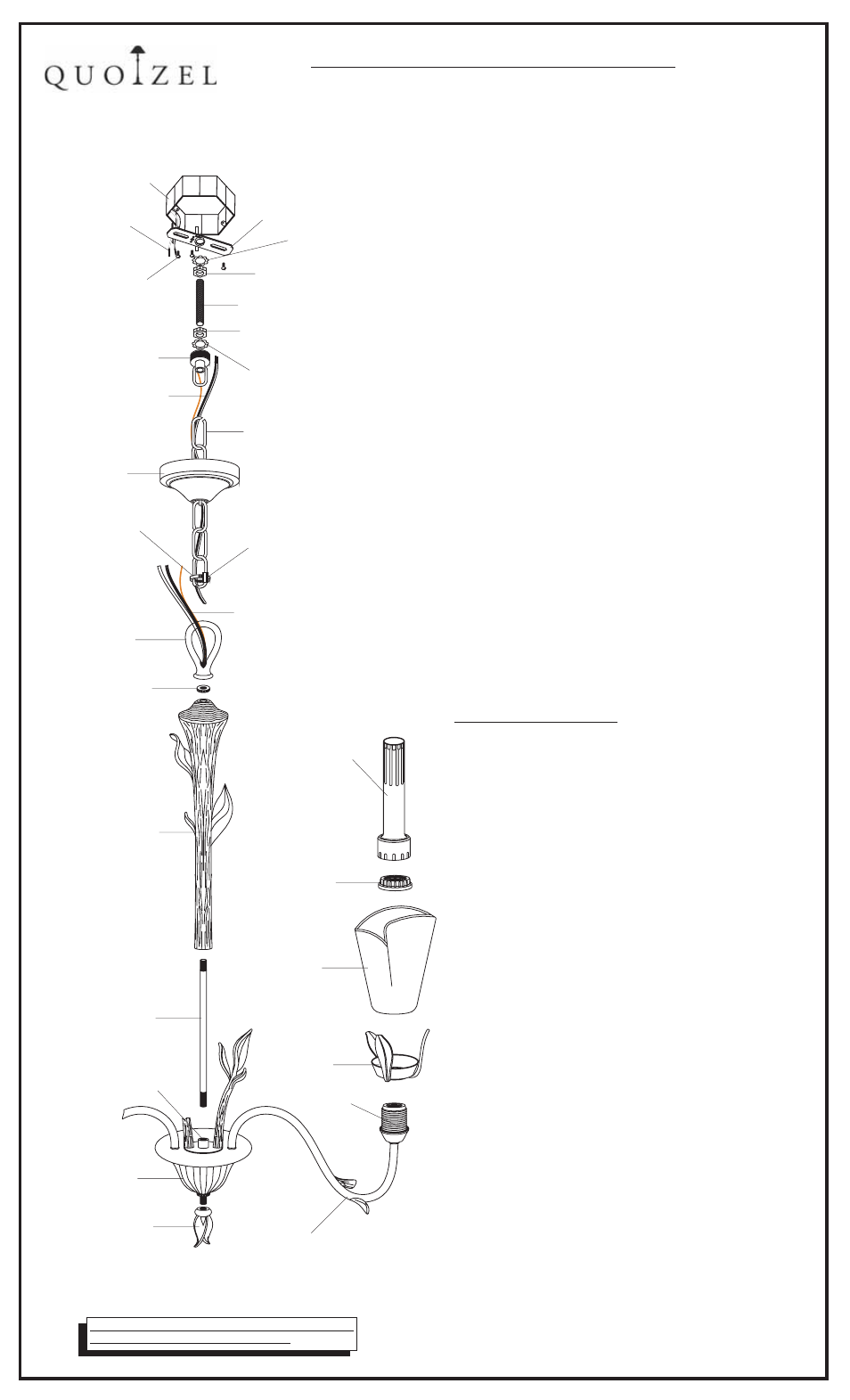

1 Before beginning the installation carefully unpack and
identify all parts referring to the illustration
2 Turn power to the installation point OFF at circuit breaker
3.Unfold SUPPORTARMS to proper locations. Thread the end
of NIPPLE into COUPLING on the top center of JUNCTION
BOX. Hand tighten until snug. Proceed to locate CENTER
COLUMN over top end of NIPPLE and secure it with
KNURLED NUT. Tighten until snug.
4. Thread FINIAL onto the nipple on the bottom center of
JUNCTION BOX and hand tighten until snug. Proceed to
thread FIXTURE LOOP onto the nipple on the top end of
CENTER COLUMN and hand tighten until snug.
5
)
Fasten the CROSSBAR to the OUTLET BOX with
(2)OUTLET BOX SCREWS(not supplied). Proceed to
thread LOCK NUT A and LOCK WASHER A onto
the top end of NIPPLE. Thread NIPPLE into the center of
CROSSBAR. Locate the LOCK NUT B onto the bottom end
of the NIPPLE. Tighten LOCK NUT A against CROSSBAR
with plier until snug.
6. Locate the FIXTURE CHAIN and determine desired
hanging height of fixture. Adjust chain by removing links if
needed. Please note that depending on chain material
thickness, you might be required to use chain pliers to
spread links open. Proceed to attach the QUICK LINK onto
one end of chain and FIXTURE LOOP, attached to top of
fixture. Pass the fixture wires through FIXTURE CHAIN
alternating links. Proceed to pass the fixture wires through
the following mounting components in this order:
1)CANOPY LOCK RING; 2)CEILING CANOPY
3 CANOPY CHAIN LOOP 4 LOCK WASHER B
and LOCK NUT B 5 NIPPLE 6 LOCK NUT A and
LOCK WASHER A
7.
(2 people recommended for the
remaining steps)
Position the fixture under the ceiling mounted outlet box.
Pass LOCK WASHER B over the NIPPLE. Thread
CANOPY CHAIN LOOP onto NIPPLE. Thread LOCK NUT B
down the NIPPLE, against the CANOPY CHAIN LOOP and
snug with pliers. Pass the wires through the NIPPLE. Take
up wire slack and trim wires so that approx. 6” will remain
inside outlet box. Proceed to attach the top of the FIXTURE
CHAIN to the bottom of the CANOPY CHAIN LOOP. Using
wire connectors (not supplied) connect the HOUSE
GROUND WIRE to the FIXTURE GROUND WIRE
connect the HOUSE WHITE WIRE to the FIXTURE
SUPPLY WIRE (WHITE or RIBBED SIDE); connect the
HOUSE BLACK (or RED) WIRE to the FIXTURE SUPPLY
WIRE(BLACK or SMOOTH SIDE). Wrap each connection
with approved electrical tape.
8.With the proper connections made, proceed to push the
CEILING CANOPY upward over the OUTLET BOX. Be sure
that all wires are carefully tucked into the OUTLET BOX
cavity. Secure canopy against ceiling by threading
CANOPY LOCK RING onto the CANOPY LOOP. Tighten
until snug.
9 Position SHADE HOLDER and SHADE over the SOCKET.
Use SOCKET COLLAR TOOL(supplied), thread SOCKET
COLLAR onto SOCKET and hand tighten until snug to
secure them.
10.Install bulbs referring to fixture markings and/or labels for
maximum wattage.
11. Restore power to the installation point ON. Retain this
sheet for future reference.
.
.
.
(
,
,
.
.
;
)
)
; )
; )
.
;
.
For Canadian installations, please refer to Page 2
Making the connections:
ASSEMBLY / INSTALLATION INSTRUCTIONS
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,
CONSULT A LICENSED ELECTRICIAN!
JUNCTION BOX
NIPPLE
COUPLING
KNURLED NUT
IS YU5149
Page 1 of 3
Revised 2008 01 28
-
- -
