Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

5of6

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

2013 QuoizelInc.

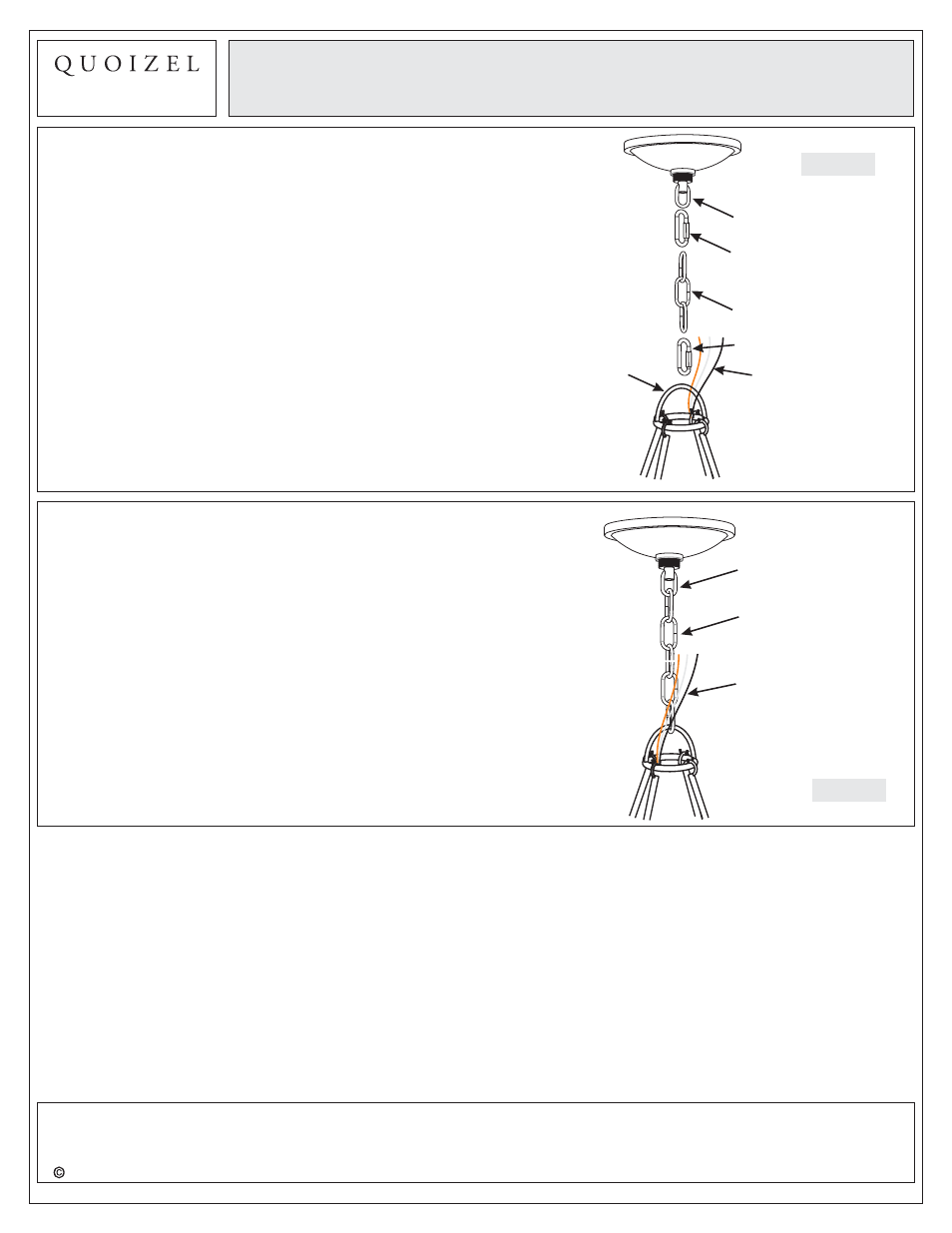

Figure 9

Supply Wire
and Ground Wire

Fixture Chain

Canopy Chain
Loop

STEP 9

Pass Supply Wires through Fixture

Chain

A. Pull the Supply Wires and Ground Wire up through the

Fixture Chain (H) alternating links. Push the wires up
through the Canopy Chain Loop (F) into the outlet box.

December2013

Assembly Instruction Sheet #IS-VYR5012ML

For Style VYR5012ML

Figure 8

STEP 8

Install Fixture Chain

A. Adjust the Fixture Chain (H) to your desired length by

removing the links if needed. You may need to use plier
to open the chain links. If so, put a cloth over the chain
to protect the finish from the pliers.

B. Attach one end of the Fixture Chain (H) onto the

Canopy Chain Loop (F) with one Quick Link (L) and then
attach the other end of the Fixture Chain (H) onto the
Fixture Loop (I) with the Quick Link (L).

Canopy Chain Loop

Fixture Chain

Supply Wire and
Ground Wire

Fixture Loop

Quick Link
