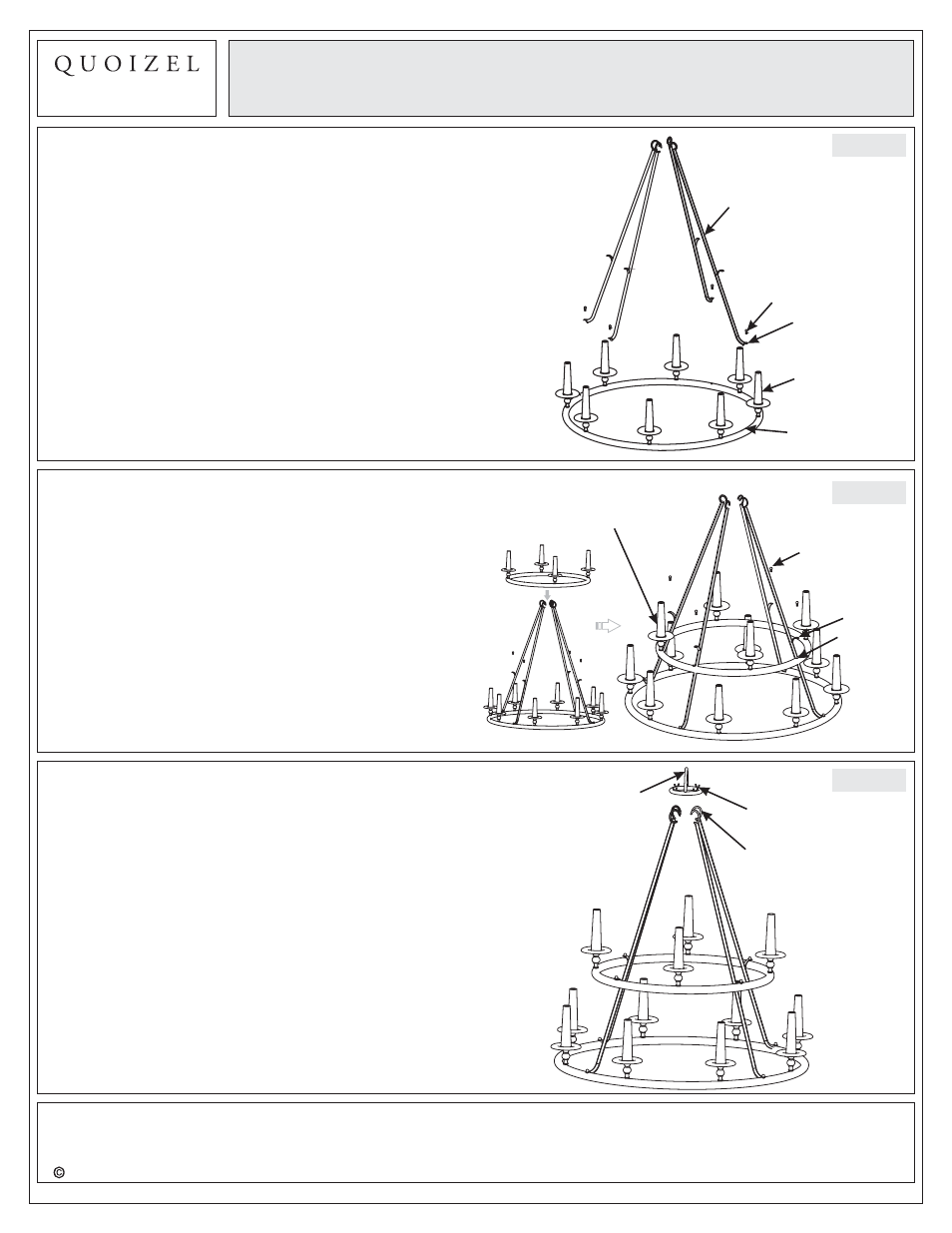

STEP 1 Install Side Arms to Eight Lights
Assembly
-
A. Attach the Tabs at the ends of the Side Arms (J) to the
ring of the Eight Lights Assembly (N). Line up the holes
at the Tabs to the Mounting Holes on the Ring. Secure
by threading Lock Screws (K) into the Mounting Holes.
Hand tighten until snug
.Notes: please pay attention to the fixture that there are
some alphabet on the fixture for you easily to assemble,
please assemble them as A---A1---A2, B--B1--B2
accordingly.
bottom tier: A, B, C
second tier: A1, B1, C1
top: A2, B2, C2
When the work is done, please remove the stickers.
Figure 1
December2013
STEP 2 Install Four Lights Assembly
-
A. Place the Four Lights Assembly (M) over the top ends
of Side Arms (J). Line up Mounting Holes on the Ring to
the bottom of the Tabs in the middle of the Side Arms
(J). Secure by threading Lock Screws (K) into the
Mounting Holes on the Four Lights Assembly (M). Hand
tighten until snug.
Figure 2
Assembly Instruction Sheet #IS-VYR5012ML
For Style VYR5012ML
Lock Screw
Side Arm
Eight Lights
Assembly
Tab
Mounting Hole
Four Lights Assembly
Lock Screw
Tab
Mounting
Hole
STEP 3 Install
-
Fixture Loop
A. Attach the Hooks on the top ends of Side Arms (J) to the
Hook Holders on the Fixture Loop (I)
.
Fixture Loop
Figure 3
Hook Holder
Hook
