Quoizel TFSM1818VB Samara User Manual

Warnings and cautions, Package contents, Hardware contents

Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445

Customer Service
Phone 631.273.2700
Fax

631.231.7102

www.quoizel.com

Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape,
safety glasses.

Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.

Warnings and Cautions

1of2

Assembly Instruction Sheet #IS-TFSM1818VB

For Style TFSM1818VB

Bulb Recommended: (3) Medium Base 100W Maximum, Alternate bulb (3) 23W CFL

6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2014 QuoizelInc.

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.

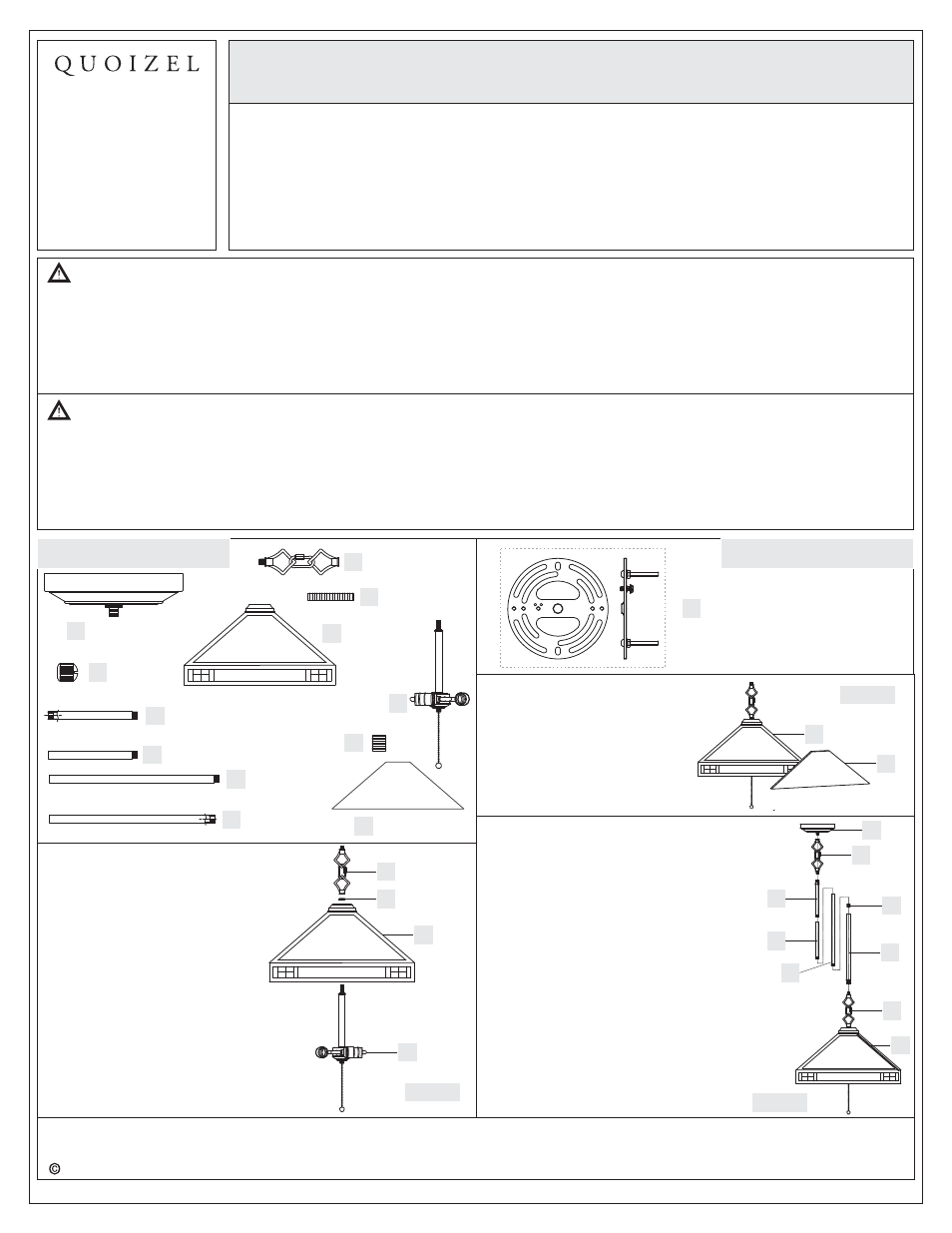

Package Contents

Hardware Contents

Ceiling Canopy
x 1

Crossbar Assembly
x 1

Care of Tiffany Style Shade

A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.

For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.

If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.

Shade
x 1

Lock Ball
x 2

Loop Assembly
x 2

GND

2.4mm
13Ga

QUOIZEL

6” Rod with
Connector
x 1

12” Rod
x 1

Socket Assembly

x 1

STEP 1

Attach Socket Assembly

and Shade Together

A. Place Shade (I) over the nipple on

the top of Socket Assembly (J),
secure with Knurled Nut (H).
Hand tighten until sung.

B. Thread the Loop Assembly (G)

onto the nipple on the top of
Socket Assembly (J). Hand
tighten until sung.

Figure 1

Knurled Nut
x 1

STEP 3

Assemble Rods

A. Determine the Rods (C/D/E/F) and

Connector (K) (Optional) to be assembled
to the Loop Assembly (G) on top of Shade
(L) according to your hanging height.

B. Pass Supply Wires and Ground Wire

through the chosen Rods (

. Then thread the

chosen Rods (

and

I together. Hand tighten until

snug.

C. Pass Supply Wires and Ground Wire

through Loop Assembly (G) and Ceiling
Canopy (A). Then thread the Ceiling
Canopy (A), Loop Assembly (G) and the
Upper Rod together. Hand tighten until
snug.

C/D/E/F) and

Connector (K) (Optional)

C/D/E/F) and Connector (K)

(Optional)

Loop Assembly (G) on top

of Shade ( )

Figure 3

Glass Panel
x 1

STEP 2

Attach panel to Shade

A. Insert Glass Panels (L) into the

slot in the Shade (I) then fold
the tabs to secure the Glass
Panels (L).

Figure 2

6” Rod
x 1

6” Rod with
Connector
x 1

Connector

x 1

August2014
