Installation instructions, Step 6, Step 7 – Quoizel KY2822IB Kyle User Manual
Page 4: Step 8, Step 9

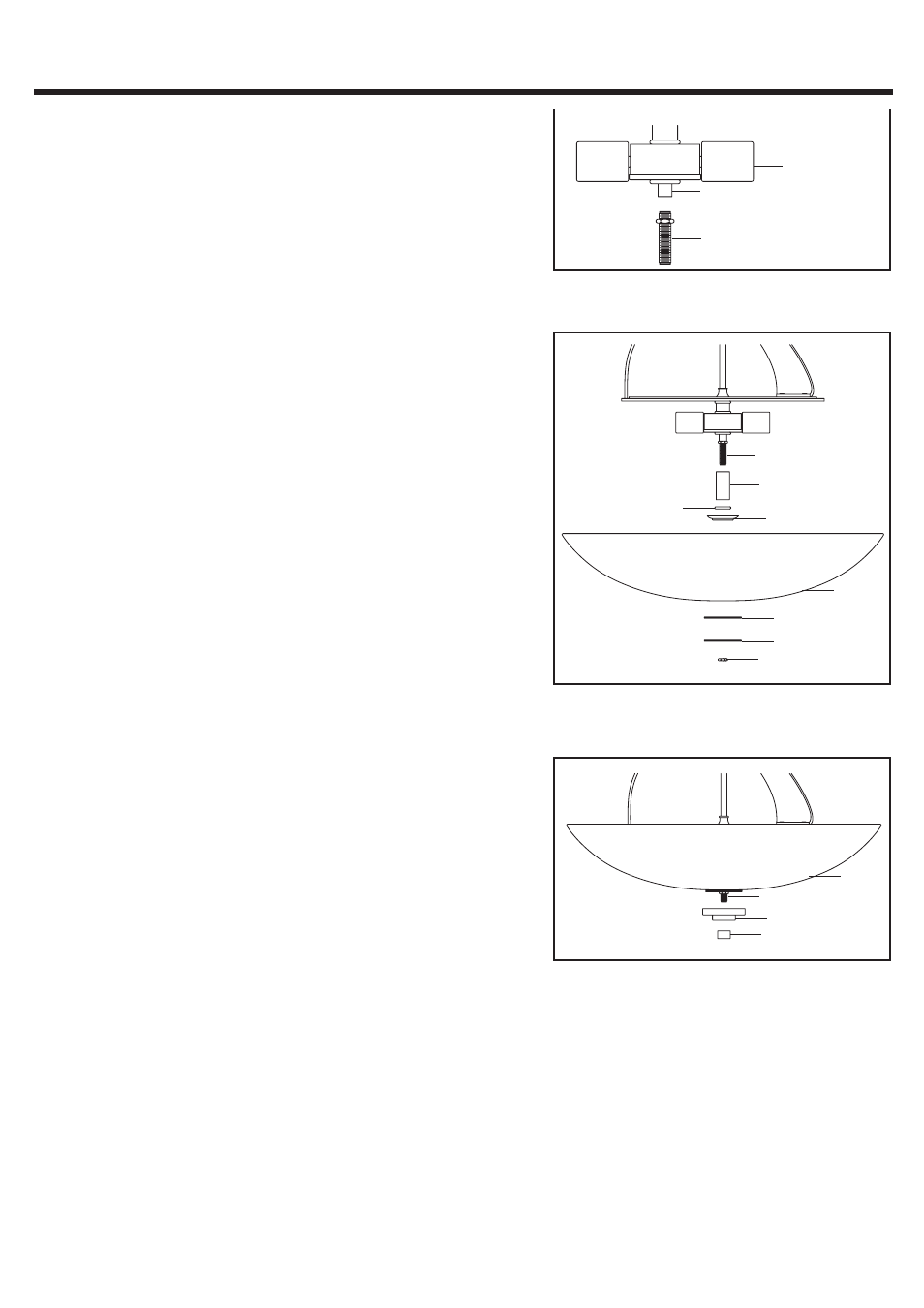

INSTALLATION INSTRUCTIONS
4 OF 4
STEP 6:
.
a
Screw the Hex Nut end of the Nipple with Hex Nut into the
Coupling underside of the Socket Assembly. Using pliers,
thread the Hex Nut against the Coupling and tighten until
snug.
STEP 7:
.
a
Place the Spacer Tube, the Check Ring, the Shade Stop, the
Shade, the Plastic Washer and the Flat Washer over the end
of the Nipple with Hex Nut. Secure them by threading the Hex
Nut onto the end of the nipple. Tighten gently until snug.
STEP 8:
.
a
Place the Cap over the end of the Nipple extruding from the
bottom center of the Shade. Secure by threading the Finial
onto the nipple and hand-tighten until snug.
STEP 9:
.
a
Install correct bulbs referring to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
Socket
Assembly
STYLE NUMBER KY2822IB
:
Nipple with Hex Nut
Coupling
Nipple with Hex Nut
Spacer Tube
Shade Stop
Check Ring
Shade
Plastic Washer
Hex Nut
Flat Washer
Nipple
Cap
Finial
Shade
