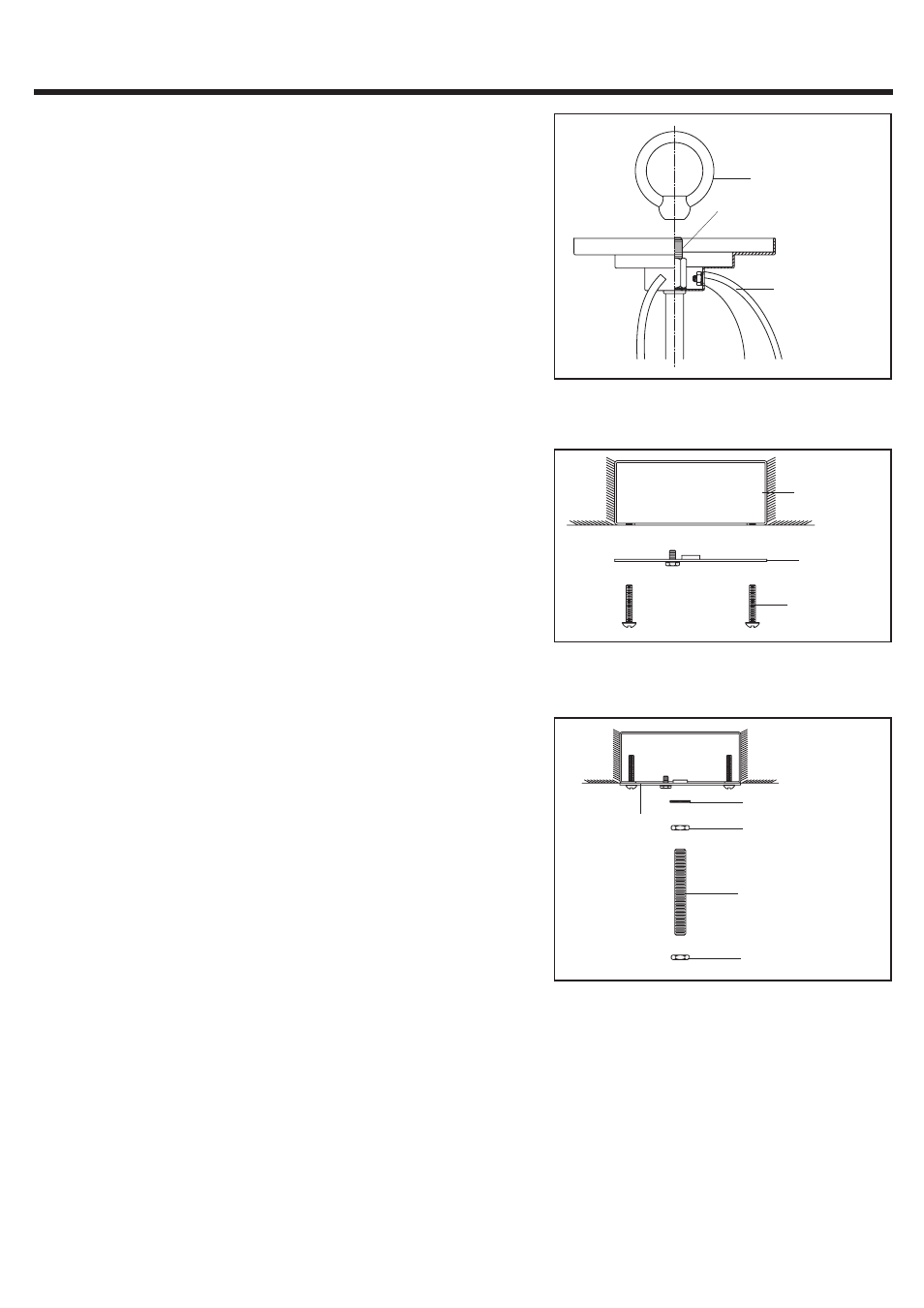

INSTALLATION INSTRUCTIONS

STEP 1

:

a Thread the Fixture Loop onto the Nipple in the top center of

the Fixture Assembly. Hand-tighten until snug.

.

Outlet Box

Crossbar

Outlet Box
Screw

STEP 2

:

a Secure the Crossbar onto the Outlet Box with Outlet Box

Screws

Tighten until snug

.

.

.

2 OF 4

Fixture Loop

Nipple

Fixture Assembly

STEP 3:

Pliers is required on this step

a

Thread one Hex Nut onto top end of the Nipple

b

Place one Lock Washer over the top end of the Nipple

and then thread the Nipple into the center lock hole of
the Crossbar

c Using pliers

thread the Hex Nut against the crossbar

and hand tighten until snug

d

Thread another Hex Nut onto the bottom end of the

Nipple

*

.

.

.

.

.

.

,

.

.

.

Lock Washer

Crossbar

Hex Nut

Nipple

Hex Nut

STYLE NUMBER KY2822IB

:
