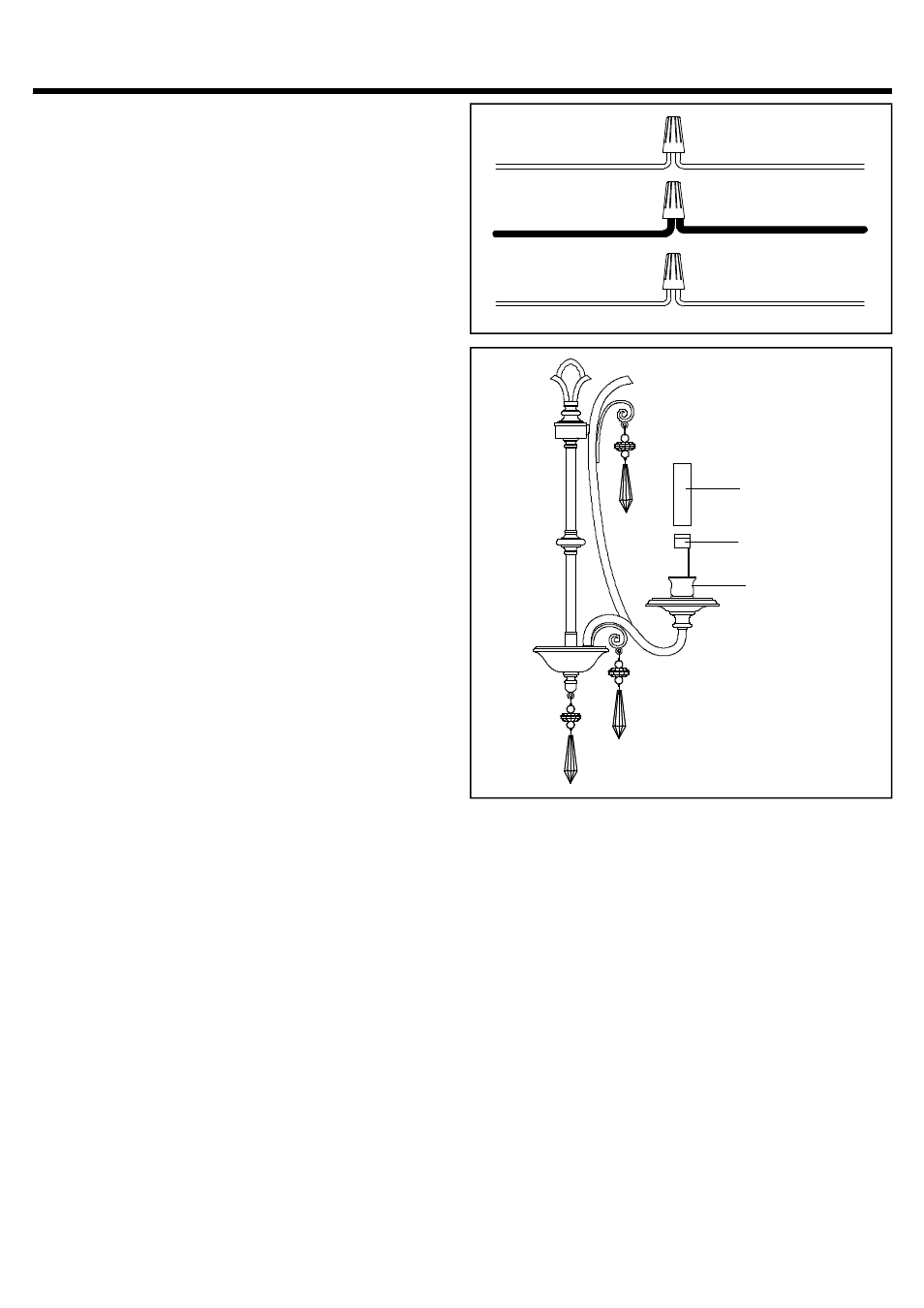

STEP 7
:
*
(
)
.
.
.
(
)
.
(
)
(
).
.
.
Use Wire Connectors not supplied to connect
the wires
a Connect the House Ground Wire to the Fixtur e
Ground Wire.
b Connect the House White Wire to the Fixture
Supply Wire White or Ribbed Side .
c Connect the House Black or Red Wire to the
Fixture Supply Wire Black or Smooth S ide
d Wrap each connection with approved electrical
tape and carefully stuff all of the connected wires
into the Outlet Box
WHITE WIRE
BLACK OR RED WIRE
(
)
FROM HOUSE
GROUND WIRE
GROUND WIRE
FROM HOUSE
FROM FIXTURE
WHITE OR RIBBED
FROM FIXTURE
FROM HOUSE
FROM FIXTURE
BLACK OR SMOOTH
STYLE NUMBER KD5003MM
:
STEP 8
:
a
Place the Candle Cover over the Socket
set
into the Cup
.
,
.
Candle Cover
Socket
Cup
STEP 9
.
:
a
Install correct Bulbs referr ing to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
