Quoizel TFIK1817VA Inglenook - Manual

1of2
Assembly Instruction Sheet #IS-TFIK1817VA
For Style TFIK1817VA 6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc.
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Bulb Recommended: (3) Medium Base 100W Maximum, Alternate bulb (3) 23W CFL
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering July result.
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
Package Contents
Hardware Contents
Shade
x 1
AA
BB
CC
DD
EE
FF
Crossbar
x 1
Lock Washer
x 2
Hex Nut
x 2
Long Nipple
x 1
Canopy
Chain Loop
x 1
Canopy Lock
Ring
x 1
Ceiling
Canopy
x 1
GG
Fixture Chain
x 1
HH
B
D
Socket
Assembly
x 1
C
Knurled Nut
x 1
Fixture Loop
x 1
A

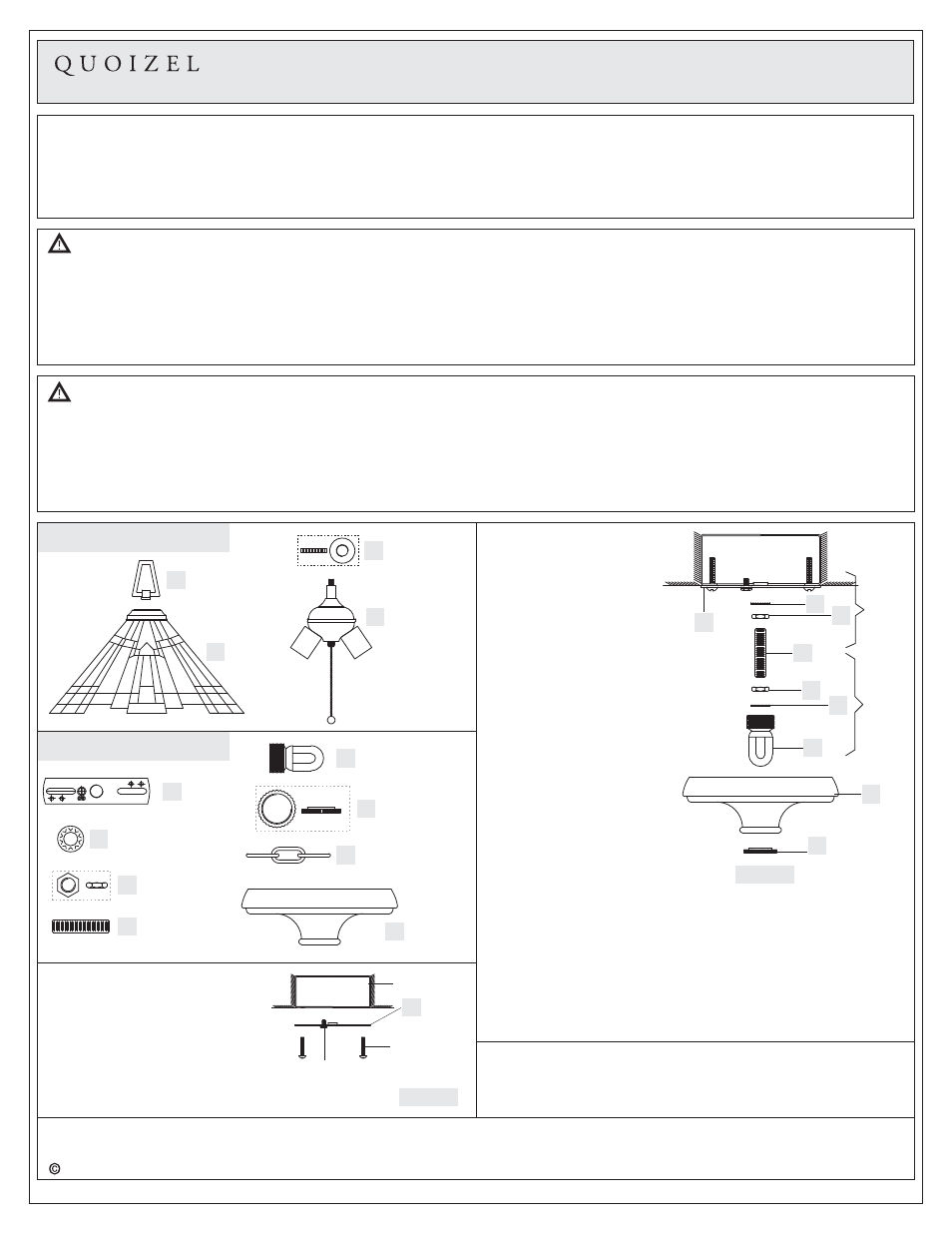

STEP 1 Install Crossbar -
A. AA) Attach the Crossbar ( to the
Outlet Box with the head of the
Green Ground Screw facing you.
Secure it with Outlet Box Screws
(not included)
Tighten until snug . .
Figure 1
Outlet Box
Outlet Box
Screw (not
included)
Green
Ground
Screw
AA
STEP 2 Install Canopy
Chain Loop and Nipple
-
* Pliers is required for this
step.
A. Thread one Hex Nut (CC) to
one end of the Nipple (DD)
until it is at least 0.25” from
the end. Pass one Lock
Washer (BB) over the end of
the Nipple (DD) and thread
the Canopy Chain Loop (EE)
onto the Nipple (DD). By
using pliers, thread the Hex
Nut (CC) against the Canopy
Chain Loop (EE) and hand
tighten until snug.
B. Thread another Hex Nut (CC)
to the middle of the Nipple
(DD). Place another Lock
Washer (BB) over the Nipple
(DD) and then thread the
Nipple (DD) into the
Crossbar (AA) until the
Nipple (DD) is about 0.375”
above the Crossbar (AA).
AA
BB
CC
Step B
Step A
DD
CC
BB
EE
FF
C. Remove the Canopy Lock Ring (FF) from the Canopy Chain Loop
(EE). Place the Ceiling Canopy (HH) over the Canopy Chain Loop
(EE) against the ceiling to determine the correct position of the
Nipple (DD). Thread the Canopy Lock Ring onto the Canopy Chain
Loop (EE). Adjust the Nipple (DD) to allow the Ceiling Canopy (HH)
to rest against the ceiling when held in place by the Canopy Lock
Ring (FF).
D. Remove the Canopy Lock Ring (FF) and the Ceiling Canopy (HH).
Tighten the Hex Nut (CC) against the Crossbar (AA) to secure in
place.
Figure 2
STEP 3 Install Shade and Socket Assembly -
A. Place Socket Assembly (D) inside of Shade (B). Pass the nipple on
the top end of Socket Assembly (B) through the hole on Shade (B)
HH
August2014
