2 OF 4

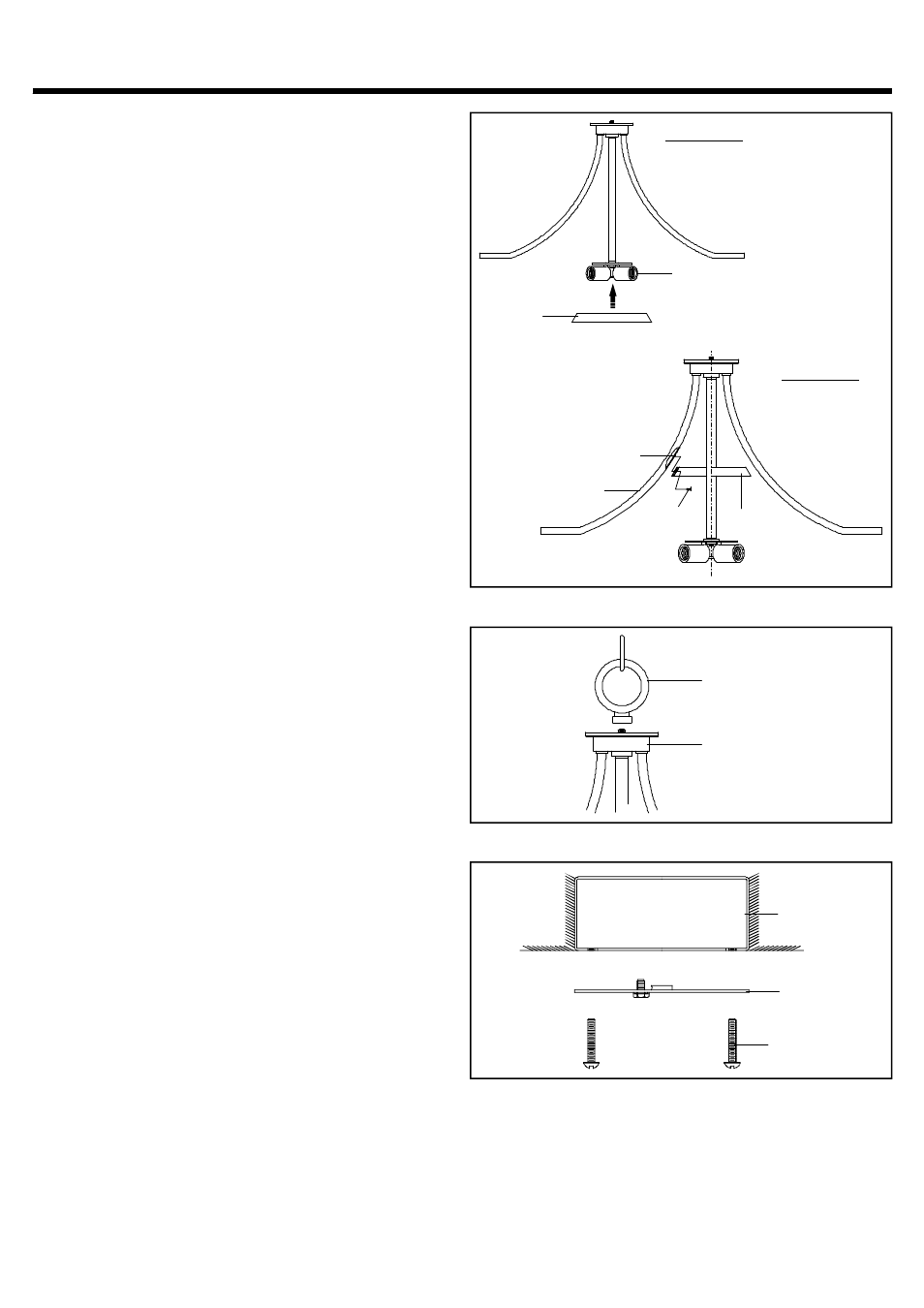

STEP 1

:

a Unfold Side Arms at the 120 degree locations.
b. Refer to Figure 1, place Steel Ring over Socket

Cluster as ar row direction. (Refer to Figure
2)Match the holes on the Ring onto the Mounting
Holes on the Side Arms.

c. Using screwdriver, thread Lock Screws into the

Mounting Holes and tighten until snug to secur e the
Steel Ring onto Side Arms.

.

STEP 2

:

a. Thread Fixtur e Loop onto the nipple on the top

center of the Fixture Assembly. Hand tighten until
snug.

Figure 1

Figure 2

Socket Cluster

Steel
Ring

Mounting Hole

Lock Screw

Steel Ring

Side Arm

Fixture Loop

Fixture Assembly

STEP 3:

a. Secur e the Crossbar onto the Outlet Box with

Outlet Box Screws

Tighten until snug

.

.

Crossbar

Outlet Box

Outlet Box Screw

INSTALLATION INSTRUCTIONS

STYLE NUMBER IE28 25BN

:
