Figure 5
Crossbar
Mounting Screw
Lock Washer
Hex Nut
Ceiling
Canopy
STEP 5
- Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy (F).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
4of6
Assembly Instruction Sheet #IS-EVE5103PN
For Style EVE5103PN
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2012 QuoizelInc.
STEP 4 Assemble Ceiling Canopy to Upper
Rod
-
A. Pass Supply Wires and Ground Wire through the Ceiling
Canopy (F) and then thread the Ceiling Canopy (F) and
the Upper Rod together. Hand tighten until snug.
Ceiling
Canopy
Upper Rod
Supply Wire and
Ground Wire
Figure 4

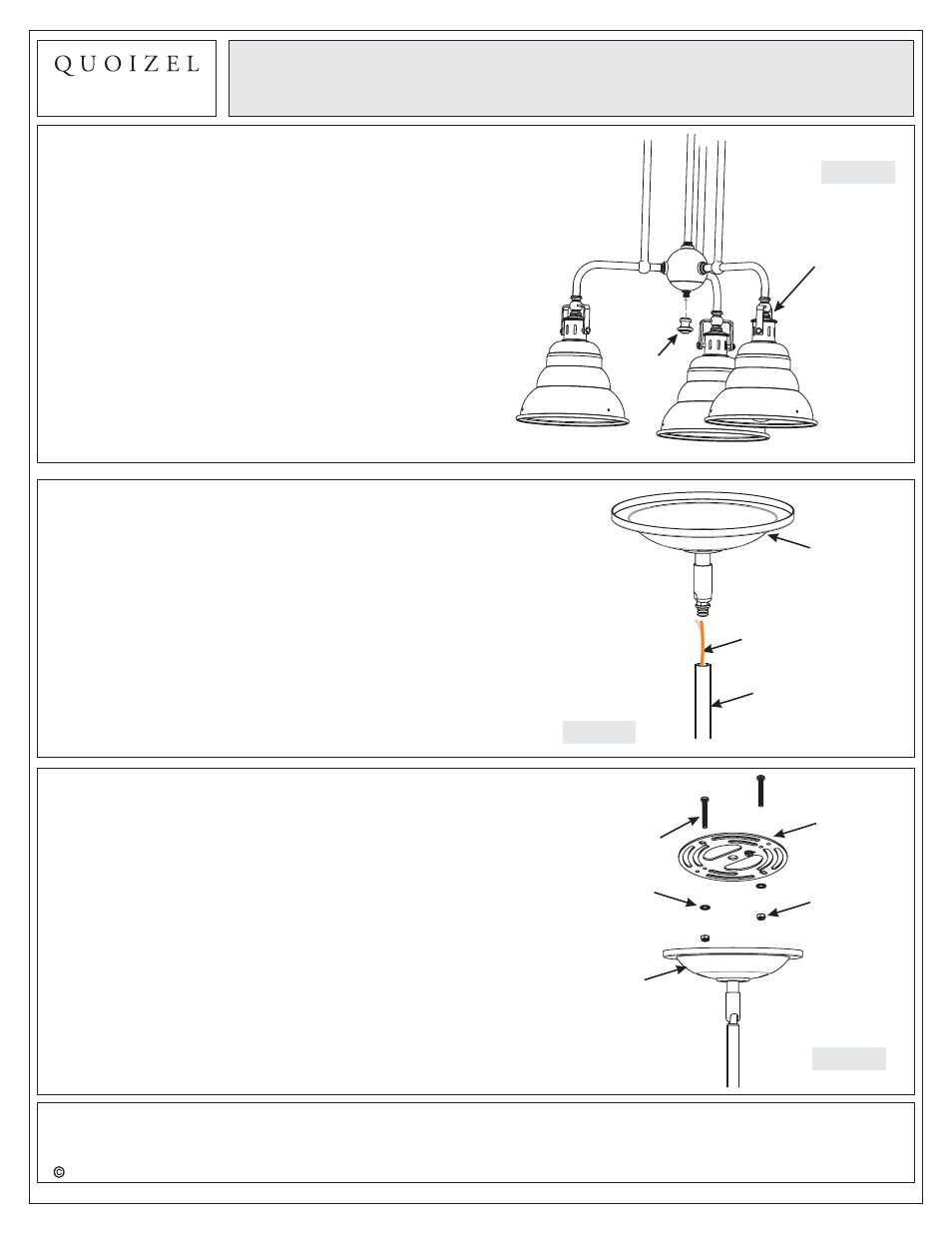

STEP 3 Assemble Finial
-
A. Thread the Finial (K) onto the nipple on the bottom center
of the Shade Assembly (N). Hand tighten until snug.
Finial
Figure 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
October2012
Shade Assembly
