Quoizel ADM5103AN Admiral User Manual
Page 6
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at
2013 QuoizelInc.
6of6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,
.
.
.

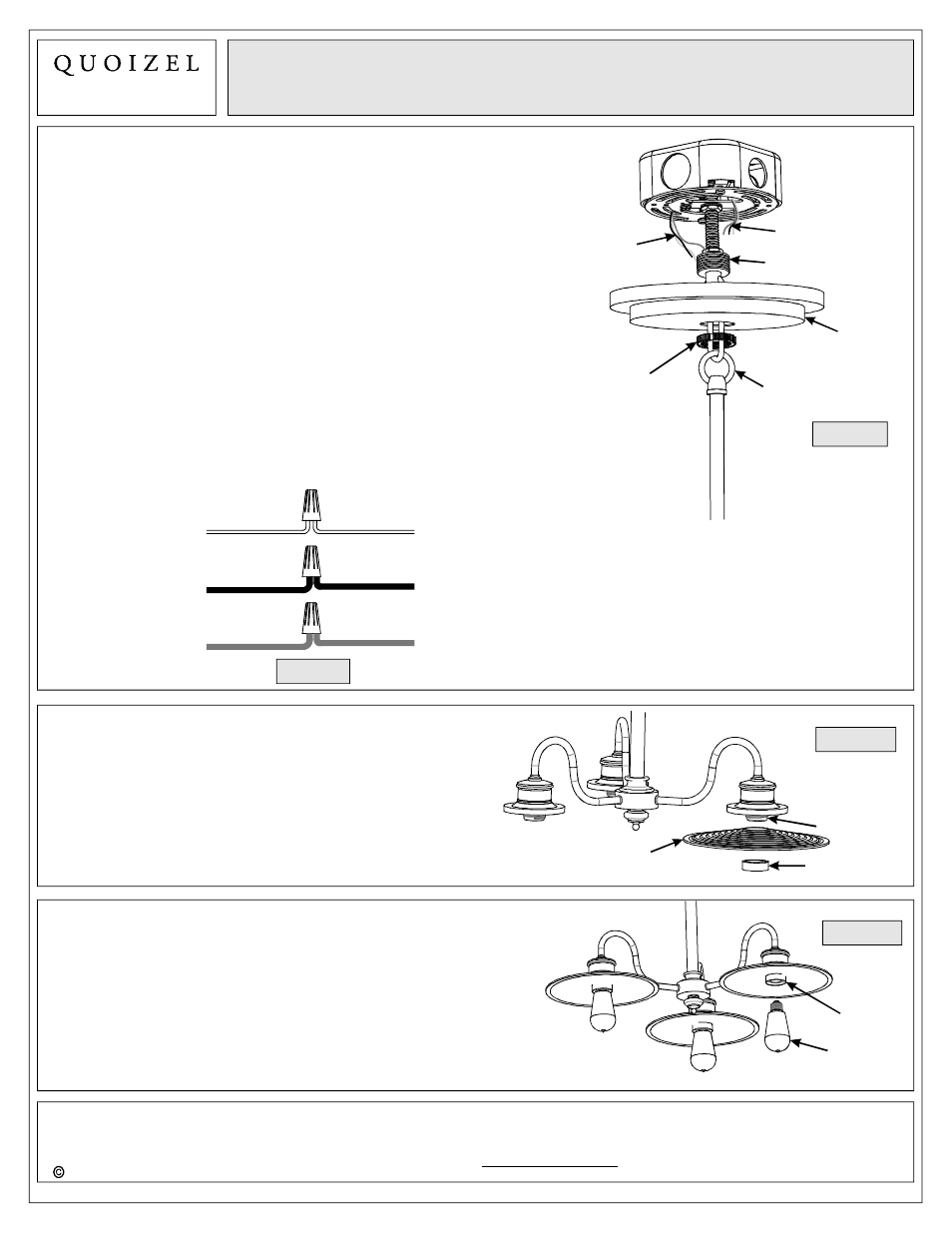

Assembly Instruction Sheet #IS-ADM5103AN
For Style ADM5103AN
October2013
Figure 12
Shade
STEP 11 - Attach Shade to fixture
A. Place the Shade (P) over the socket, secure by thread
the Steel Collar (Q) onto the Socket. Hand tighten until
snug.
Socket
Steel Collar
Figure 13
Socket
Bulb
STEP 10 - Make Wire Connections
A. Un-thread the Canopy Lock Ring (I) and slide Canopy Lock
Ring (I) and Ceiling Canopy (E) down the Fixture Chain.
B. Push all slack fixture wire through Canopy Chain Loop into
Outlet Box. Trim excess fixture wire leaving a minimum of 6
inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Black Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
I. Re-attach the Ceiling Canopy (E) as shown in Step 7.
Figure 11
White wire from supply
White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Ground wire from supply
Ground wire from fixture
Figure 10
Canopy Lock Ring
Fixture Chain
Ceiling
Canopy
Supply Wire
and Ground
Wire from
Outlet Box
Canopy Chain
Loop
Supply Wire and
Ground Wire
STEP 12 - Install Bulb
A. This fixture uses standard bulb 60W (supplied) with a
standard screw base. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use.
Enjoy!
