Assembly Instruction Sheet #IS-ADM5103AN
For Style ADM5103AN
October2013

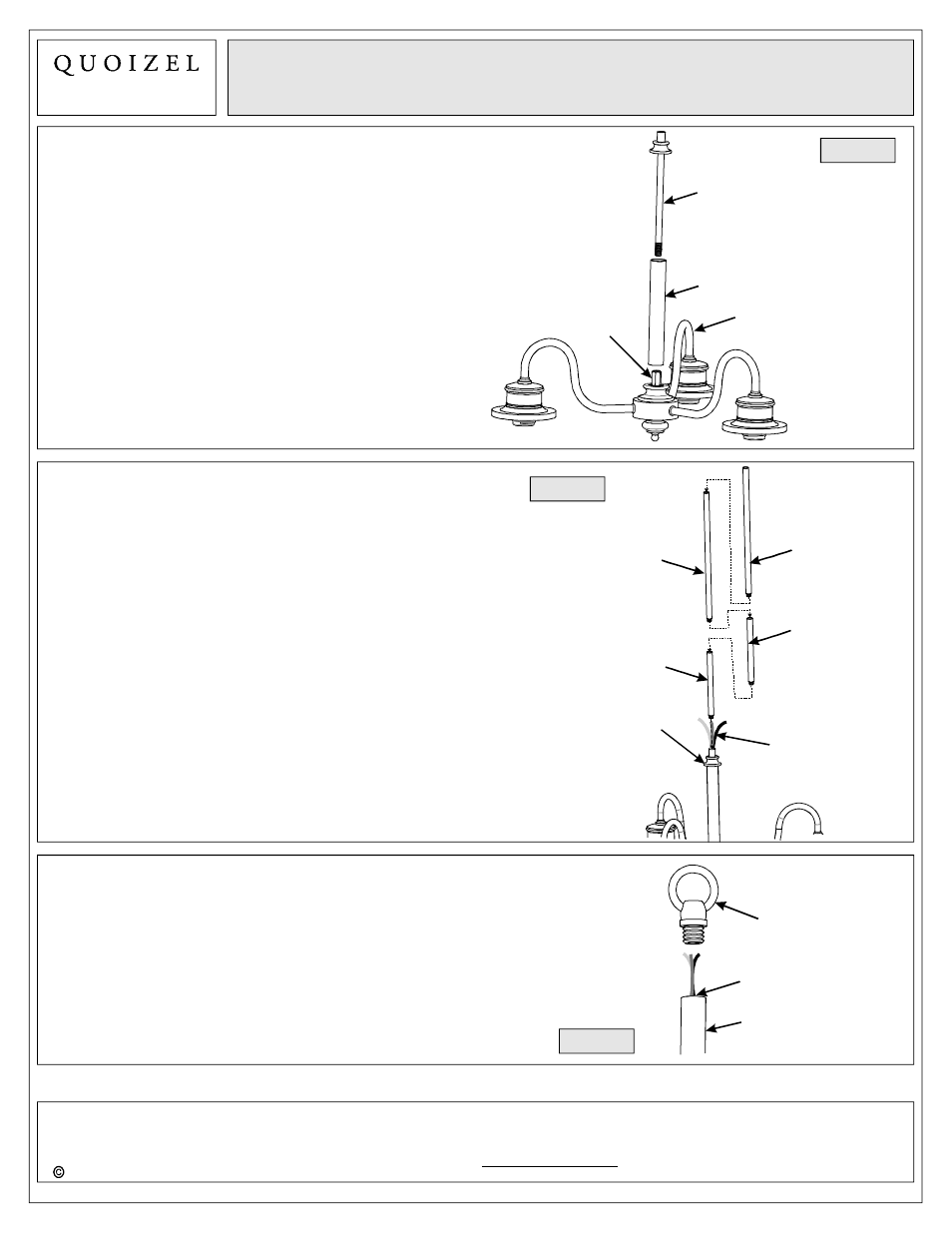

Figure 1
STEP 1
Assemble Spacer to fixture
-
A. Place Spacer (M) over the Stem (L), secure by thread
Stem (L) onto Hex Nut on the Socket Assembly (N). Hand
tighten until sung.
Spacer
Figure 2
12
” Rod
STEP 2
Assemble Rods
-
A. Determine the Rods (J/K) to be assembled to the fixture
according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (J/K) and then thread the chosen Rods (J/K) and the
fixture together. Hand tighten until snug.
6
” Rod
6
” Rod
12
” Rod
Socket
Assembly
Supply Wire and
Ground Wire
Stem
Socket Assembly
Hex Coupling
STEP 3
Assemble
to Upper Rod
-
Fixture Loop
A. Pass Supply Wires and Ground Wire through the Fixture
Loop (G) then thread the Fixture Loop (G) and the Upper
Rod together. Hand tighten until snug.
Fixture Loop
Upper Rod
Supply Wire and
Ground Wire
