2-3
Cisco Service Control Engine 1000 2xGBE Quick Start Guide
OL-7822-06
Chapter 2 Rack-Mount the SCE 1000
Installing the Crossrail Supports (Four-post rack only)

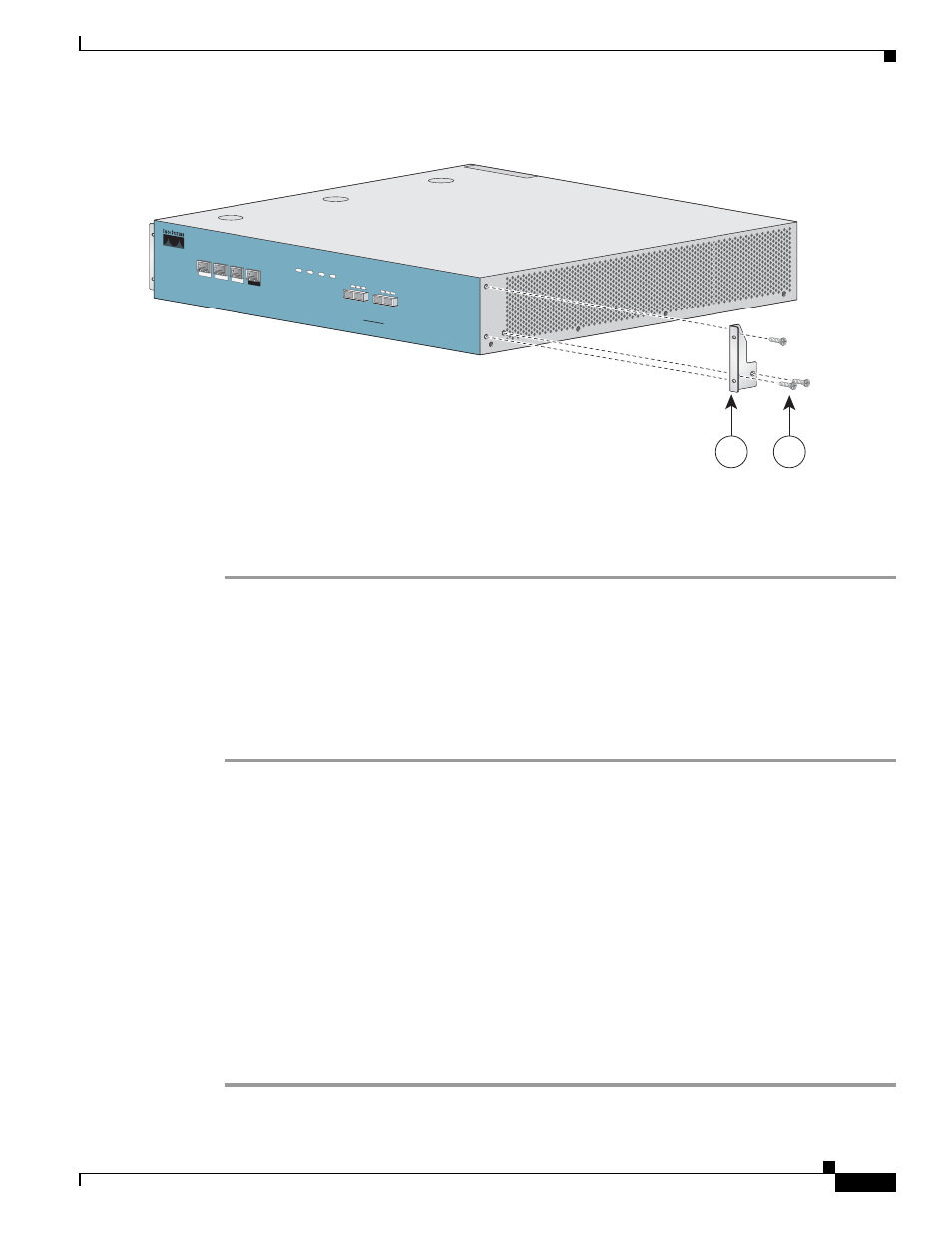

Figure 2-4 Attaching the Mounting Brackets (2-post)
To install the rack-mount brackets on the SCE 1000 chassis, complete the following steps:
Before installing the SCE 1000 in the rack, you must first install a rack-mount bracket on each side of
the front of the SCE 1000.
Step 1 Align the rack-mount bracket to the side of the SCE 1000. Choose the proper bracket for your installation
(2-post rack or 4-post rack) as illustrated in
Rack-Mount the SCE 1000
Step 2 Insert and tighten three screws.
Step 3 Repeat steps 1 and 2 on the other side of the SCE 1000.
If mounting the SCE 1000 in a rack with only two posts, skip to Mount the System to the Rack .
If mounting the SCE 1000 in a rack with four posts, proceed to the next step, Installing the Crossrail
Supports (Four-post rack only) .
Installing the Crossrail Supports (Four-post rack only)
This section provides information for assembling the crossrail supports and attaching them to the rack.
When mounting in a rack with four posts (front and back) the two crossrail supports are mounted one on
each side of the rack. The SCE 1000 then slides into these crossrails, which support the weight of the
unit.
• Assemble the Crossrail Supports
• Attach the Crossrail Supports to the Rack
Assemble the Crossrail Supports
Step 1 Assemble the two crossrail supports. Use three screws for each crossrail assembly.
LINK RX TX
RX MM TX
LINK RX TX
RX MM TX
PWR B STATU S
PWR A
BYPASS
10/100/ 1000
LINK/ ACTIVE 10/100/ 1000
LINK/ ACTIVE
AUX
CONSOLE MNG 2 MNG 1 Cisco SCE 100
0 Series 2xGBE
GBE-1
SUB LINE NET
210603
1 2
