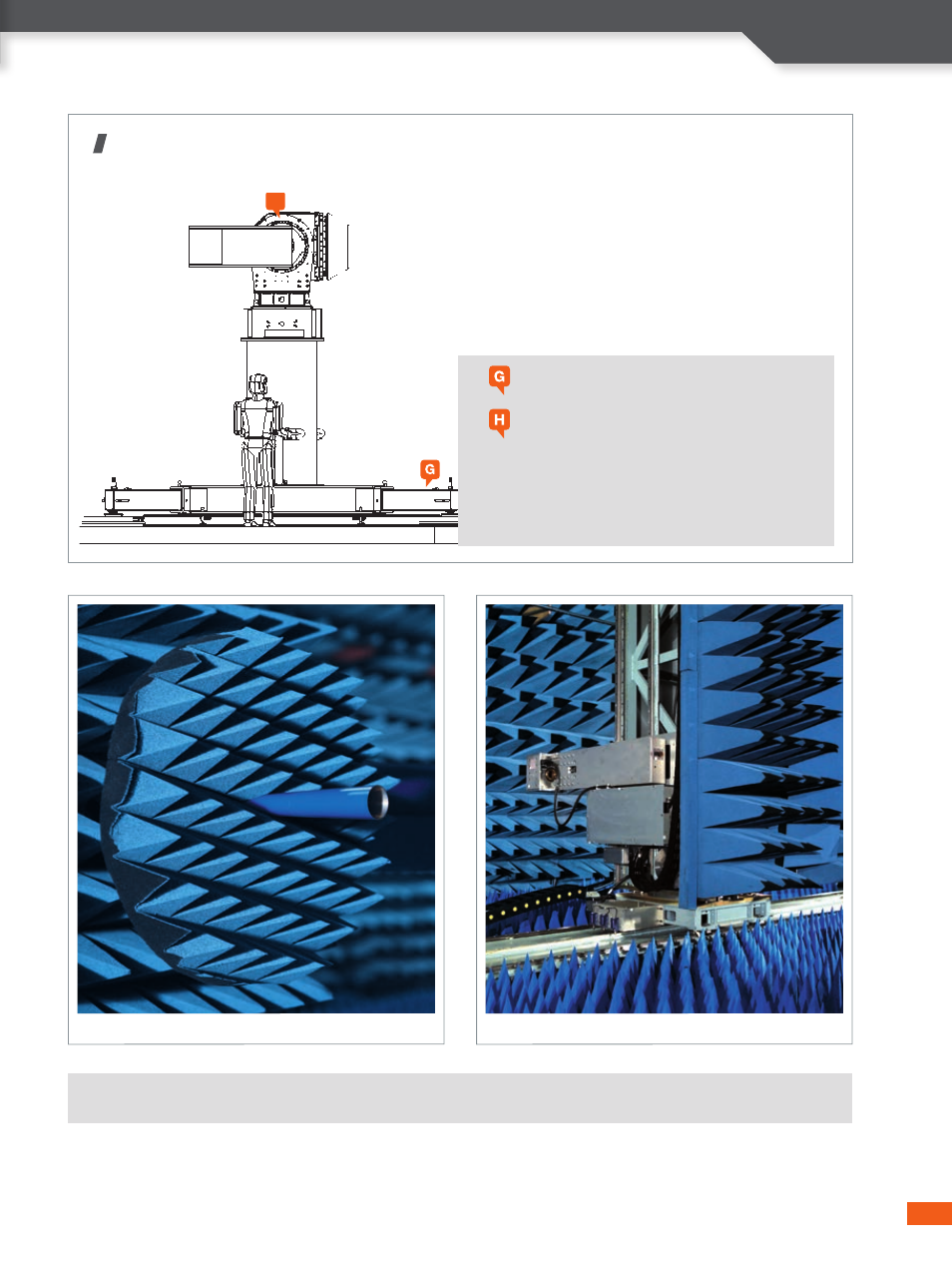

I T-DualScan
H
Air cushion base
Azimuth over Elevation over Azimuth
positioner (AL-45xx series)
Able to move the DUT in 3 directions:
- horizontal
- polarization
- vertical
DUT positioning system
(optional)
The DUT positioner is composed of standard ORBIT/FR
positioning equipment that can be adapted to the spe-
cific requirements of each customer. An innovative DUT
positioner base allows for easy movement of the DUT
positioning equipment, thanks to four air cushion pads.
To move the DUT linearly, a simple air hose is connec-
ted to the four air pads' central manifold, and the system
is slightly elevated on a thin air cushion (0.08 mm). The
system has virtually no friction and can be moved simply
by pushing it to its new position.
DUT positioning
system with
air cushion
for easier
movement.
Single-probe Base tower with rail
Watch a T-DualScan video to find out more:
http://www.youtube.com/watch?feature=player_embedded&v=VLp4wMakVvY
