CCI Thermal Technologies XPA - Explosion-Proof Panel Heater - Manual (Page 4)

4
HEX BOLTS (INCLUDED)
1/4-20UNC x 3/4"LG
MOUNTING BRACKET
(INCLUDED)
SOCKET HEAD CAP SCREWS (INCLUDED)
1/4-20UNC x 1/2"LG
PROTECTION GRILL
(OPTIONAL)
3.31"
84.1mm
O 3/4 NPT THREADED
CONN. (TYP.)

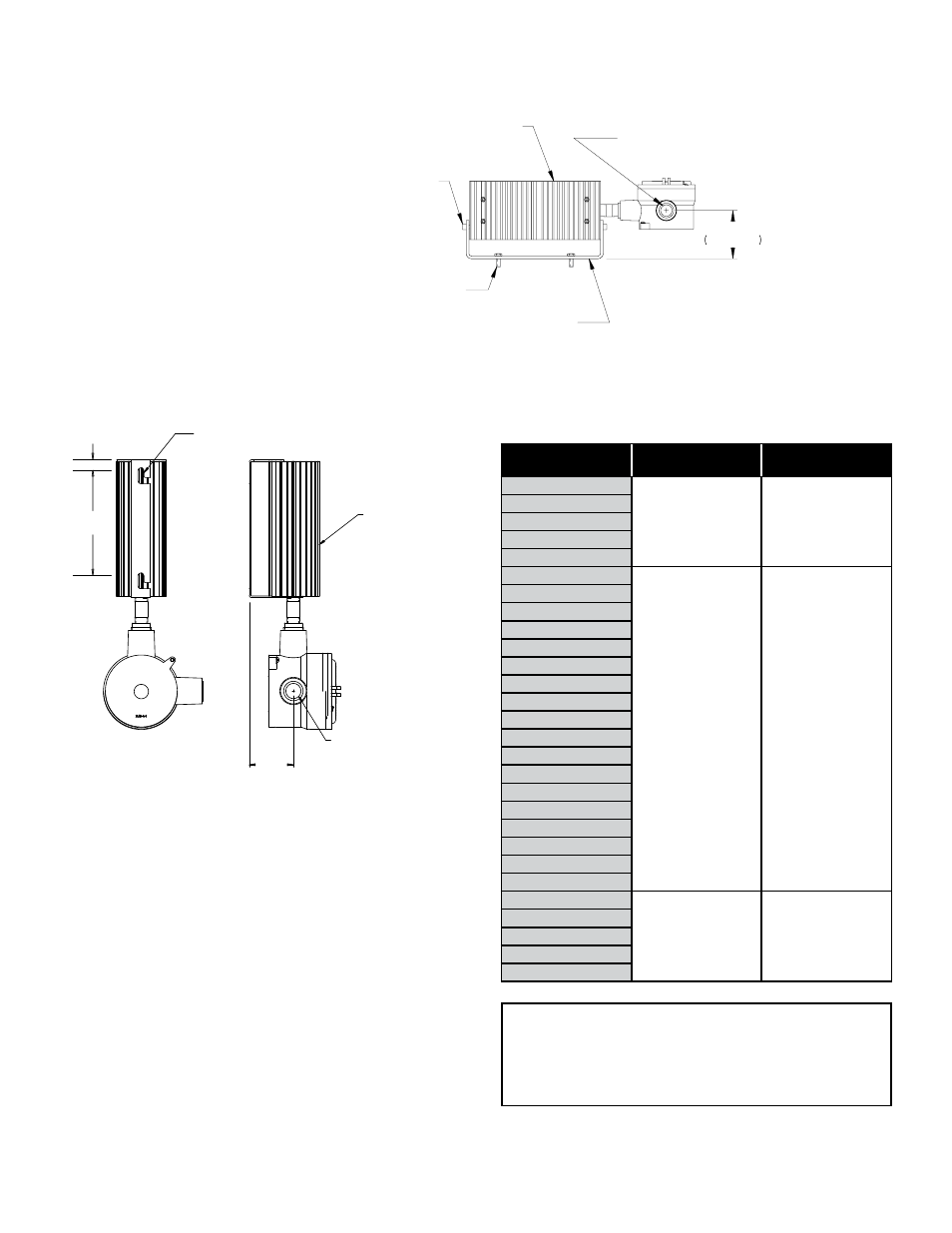

FIGURE 14 - XPAL AND XPAS HEATER BASIC MOUNTING DRAWING
2.294"
(58.3 mm)
3/4" NPT THREADED
CONN. (TYP.)
MOUNTING BRACKET
SLIDE MOUNT ONTO
PANEL MOUNTED BOLTS
PROTECTION GRILL
(OPTIONAL)
5.50”
(139.7 mm)
0.625”
(15.9 mm)
FIGURE 15 - XPAR HEATER
BASIC MOUNTING DRAWING
TABLE 2 -
MOUNTING ORIENTATION
Model No.
Installation
Orientation
Figure No.
XPAL-700T2D
Horizontal Only 11
XPAL-600T3
XPAL-400T3B
XPAL-400T3C
XPAL-250T4
XPAL-600T2D
Horizontal or
Side Mount
12
XPAS-250T2D
XPAL-500T3
XPAL-400T3
XPAS-200T3
XPAS-150T3
XPAL-300T3B
XPAL-300T3C
XPAL-250T3B
XPAL-250T3C
XPAS-125T3B
XPAS-125T3C
XPAS-100T3B
XPAS-100T3C
XPAL-200T4
XPAL-150T4
XPAL-100T4
XPAS-075T4
XPAR-150T2D
Vertical Only 13
XPAR-125T3
XPAR-080T3B
XPAR-080T3C
XPAR-050T4
NOTE: For heater dimensions, specific to your
heater configuration, please refer to the applicable
approval drawings available through the CCI
Thermal website at www.ccithermal.com or your
customer service representative.
