CCI Thermal Technologies XGB - Explosion-Proof Forced Air Unit Heater - Manual

1.0 GENERAL INFORMATION
DESCRIPTION
CCI Thermal’s XGB explosion-proof unit heater is the latest addition
to the NORSEMAN™ line of hazardous location heating products.
The small cabinet units are available with ratings from 3.75 – 10kW,

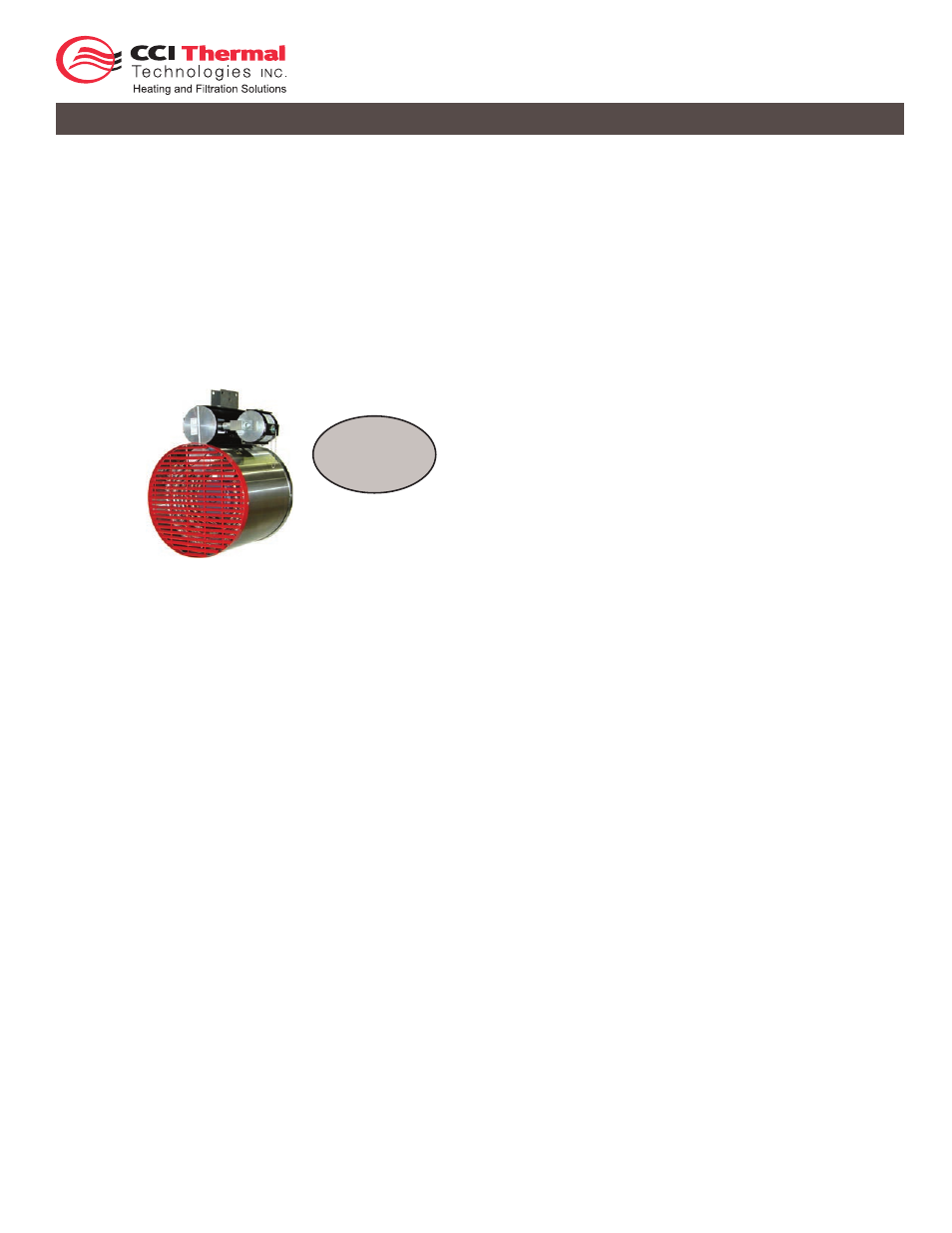

and can be identified by their internally mounted motor. The large
cabinet units (shown below) are available from 10kW up to 35kW.
See section 3.1 for cabinet dimensions.
APPLICATION
Designed specifically for heating industrial spaces where potentially
explosive substances are or may be present. Typical hazardous
location environments include:
• Water and Sewage Treatment Plants
• Oil Refineries
• Compressor Stations
• Pulp and Paper Mills
• Paint Storage Booths
• Cement Plants
• Mines
CONSTRUCTION AND INSTALLATION
CCI Thermal’s NORSEMAN™ unit heaters use extra heavy wall
finned tubular steel heating elements to provide safe, efficient heat
transfer to the environment. The heater does not contain glycol,
decreasing maintenance costs.
Flow adjustment… in structures with high ceilings, other units may
not have the range of motion needed to direct air flow to the floor.
The glycol-free design of the XGB allows the unit to be tilted to
a 30º angle below the horizontal, with an additional 35º of airflow
redirection provided by the outlet louver. For lateral airflow, the
entire louver assembly can be rotated 90º.
No conduit seal required… a factory installed conduit seal provides
the necessary isolation between the supply and control housings.
In Division 2, Zone 1 and Zone 2 applications, a field installed
conduit seal may not be required.
Simplified wiring… to facilitate installation, the NORSEMAN™
explosion-proof unit heaters feature the patented x-Max ® housing
with slide out terminal block trolley for connection of the electrical
supply.
STANDARD PRODUCT FEATURES
• CSA C/US Certified for hazardous locations. Small cabinet units
approved for Class I, Div 1 & 2, Group D; Class II, Div. 1 & 2,
Groups E, F and G. Large cabinet units approved for Class I, Div.
1 & 2, Groups C & D; Class II, Div. 1 & 2, Groups E, F & G.
Note: Class II and some atmospheric groups are not available in
every kW rating.
• Optional Zone marking available.
• Ratings from 3.75 – 35kW.
• 208 – 600V, 1 or 3 phase
• Low watt density extra heavy wall tubular steel finned heating
elements with nickel plated finish
• Glycol-free design allows the heater to be tilted 30º downward
• Rotatable outlet louvers provide 35º of additional airflow
redirection
• Patented x-Max ® housing with track and trolley system simplifies
installation and servicing
• Heavy duty 16 ga. Stainless steel casing
• Terminals for remote thermostat connection
• Dual automatic reset high limits
• Contactor derated for extended service life
• Isolated supply connection housing eliminates the need for
conduit seals
OPTIONAL FEATURES
• Built-in, externally adjustable thermostat
• Built-in disconnect
• Moisture-resistant construction
• “Auto/off/fan-only” switch
• Pilot light
• Manual reset high limit
THERMOSTATS
CCI Thermal offers a wide variety of explosion-proof thermostats
to suit most every need. NORSEMAN™ unit heaters are available
with optional built-in, externally adjustable, bulb type thermostats
which are field-convertible to tamper-proof. Thermostats for remote
mounting can also be provided on request.
MOTORS
Fractional horsepower, 1725 rpm explosion-proof motor with double
shielded ball bearings and built-in thermal overload. Small cabinet
units use 1/12 hp motor approved for Class I, Group D; Class II,
Group E, F, and G. Large cabinet units use 1/2 hp motor approved
for Class I, Groups C and D; Class II, Groups E, F & G, as standard.
ACCESSORIES
NORSEMAN™ explosion-proof unit heaters readily adapt to most
mounting requirements. Each heater is equipped with a basic swivel
bracket that is compatible with any of the optional mounting kits.
Optional mounting kits allow the unit to be installed on a wall ceiling,
3” pipe, or floor stand. Each mounting configuration provides
maximum flexibility for outlet flow direction. The swivel bracket
(standard on all heaters) features holes for affixing a safety chain.
Edmonton Head Office & Factory
5918 Roper Road, Edmonton, Alberta, Canada T6B 3E1
P 780.466.3178 F 780.468.5904 Toll Free 1.800.661.8529
[email protected] www.ccithermal.com
Installation, Operation & Maintenance Instructions for
NorsemanTM XGB Explosion-Proof Unit Heater
3.75 - 35kW, 60 Hz Units
Part No. 11110 - Rev. 02
GLYCOL
FREE
DESIGN
