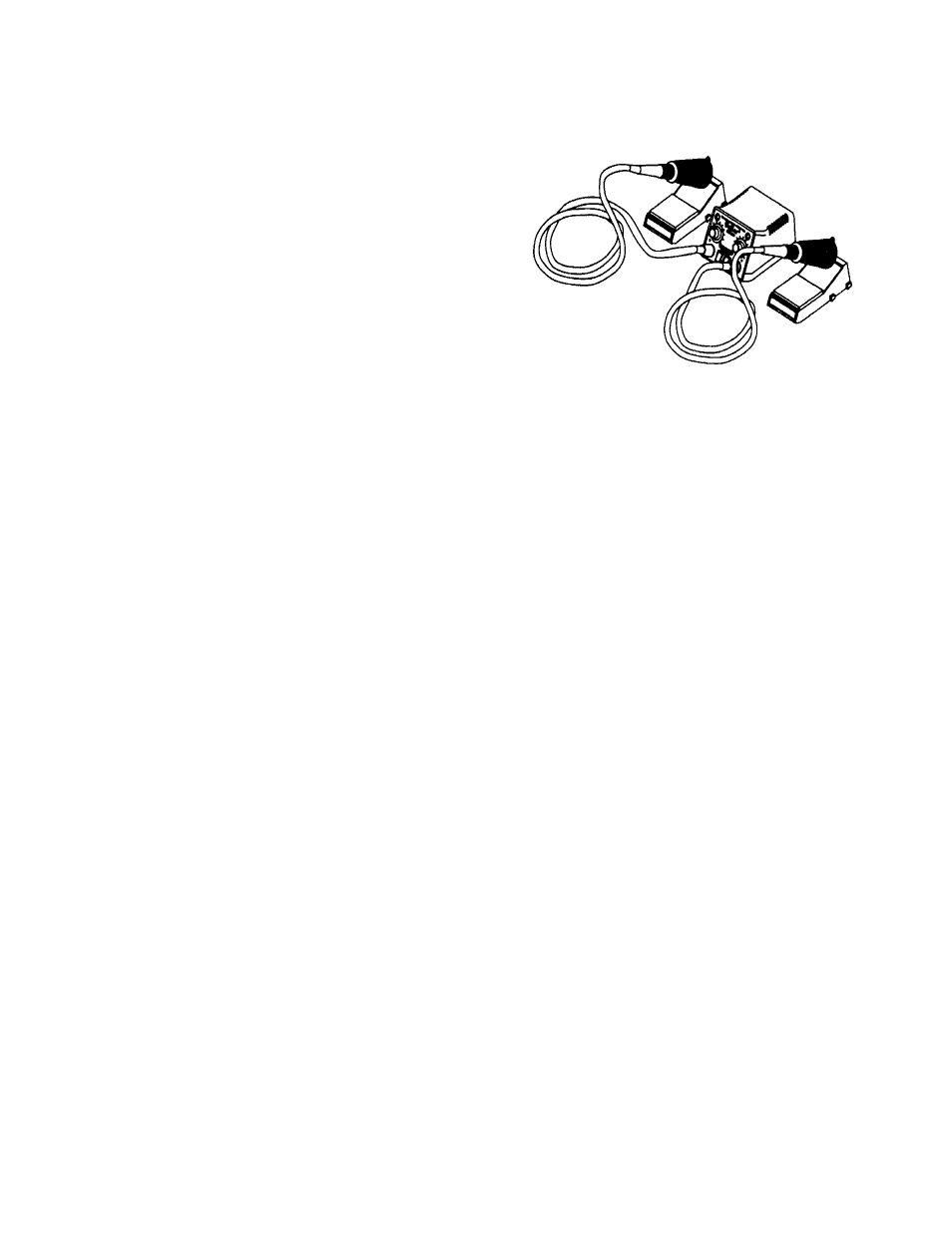

MODEL DEC1001 ELECTROSTATIC DISSIPATIVE SOLDERING STATION
The DEC1001 Soldering Station offers the ultimate in
controlled temperature hand soldering tools for
production and repair facilities at the lowest possible
cost. The DEC1001 combines two complete and
separate control units in one housing to minimize
required bench space. The user has the option of using
EC1201A or EC1503A 40 watt tools, EC1302A 20 watt
tools, EC1204AP or EC1504AP 54 watt tools, or any two
of the five. These tools are all designed to be used
interchangeably without adversely affecting the tip
temperature calibration; and a wide variety of tip styles
are available for each tool. See insert for available tip
styles.
Tip temperature is electronically controlled throughout the temperature range of 350°F to 850°F (175°C to 455°C). The units
are calibrated to within ±10°F (±6°C) and tip temperature control is maintained within specification over line voltage
variations of ±10% and an ambient temperature range of 60°F to 110°F 16°C to 43°C).
Dynamic response to soldering load variation is insured by the use of a rapid response platinum sensor and full proportional
heater control. The sensor is positioned deep inside the solid copper, iron plated tip to insure quick response.
WARNING: This product, when used for soldering and similar applications, produces chemicals known to the
State of California to cause cancer and birth defects or other reproductive harm.
The electronic circuitry features a custom integrated circuit to give precise tip temperature control. The heater power is
controlled by a zero voltage circuit in the IC, which drives a thyristor to ensure that no switching transients are present on
the tip. In addition, the power unit is isolated from the AC line by a transformer and only 24VAC is used to drive the heating
element. The soldering tip is grounded through the power units three wire line cord. These features combine with the
calibrated temperature control to give the ultimate in safety for sensitive hand soldering.
The Weller ® ESD soldering stations carry the science of hand soldering one level higher. These stations also have complete
freedom from stored static charges. The blue plastic used in this product meets the requirements for ELECTROSTATIC
PROTECTIVE MATERIALS as required in MIL-B-81705. The blue plastic material passes STATIC DECAY test per Federal
Test Method Standard Number 101, and SURFACE RESISTIVITY tests per ASTM-D257. The station housing and hand
piece are grounded with a separate conductor that terminates at the third pin on the power cord. All Weller ® ESD tools
comply with DOD-HDBK-263.
The Weller ® DEC1001 units are UL listed and meet DOD-STD-2000, MIL-S-2000, MIL-S-45743, W-S-6536, W-S-570 and
DOD-STD-1686.
DEC1001 OPERATING INSTRUCTIONS
Unpack unit carefully. Select appropriate spring and funnel for tool to be used and place in slot in top of tool stand. Attach
tool stands to either side of power unit, if desired. Fill reservoir with water and wet sponge, distilled water is recommended.
Insert tool in holder and connect tool plug to receptacle on power unit; rotate plug housing to lock plug into receptacle.
Insert line cord plug into properly grounded AC receptacle and turn unit on. Set temperature control knob to desired tip
temperature (approach desired temperature by turning CCW). Wait 30 seconds. Remove tool from holder and tin tip with
solder. Unit is now ready for use.
