6

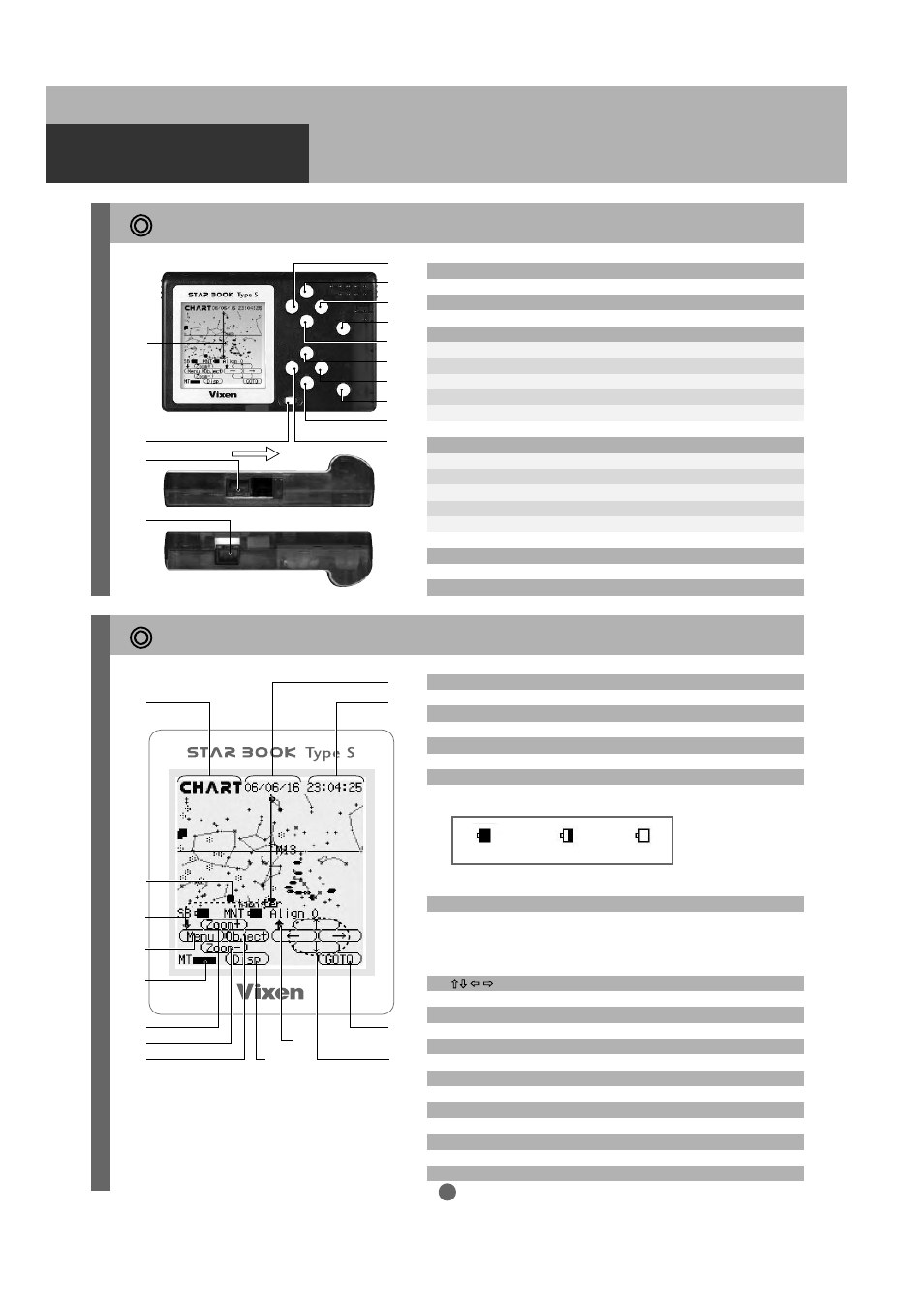

STAR BOOK-S Hand Controller
Legend on the Screen
01. TN 2.6-inch Monochrome LCD Screen
02. Power Switch
The upper buttons (Right side on-screen soft-key legend): Enter, Cursor Movement, Scroll
03. LEFT (Moves the cursor left. )
04. UP (Moves the cursor up. )
05. RIGHT (Moves the cursor right. )
06. DOWN (Moves the cursor down.
07. ENTER (Changing Chart / Scope modes)
The lower buttons (Left side on-screen soft-key legend): Alignment, Zoom
08. MENU (Accesses various settings on the system menu.)
09. ZOOM +(Zooms in the screen in 8 steps.)
10. ALIGN (Aligns computer with telescope position.)
11. ZOOM-(Zooms out the screen in 8 steps.)
12. DISP (On screen information changes each time pressed.)
13. LAN : LAN Connection Terminal (10BASE-T) for communication with a PC
14. MOUNT: Controller Cable Connection Terminal
01. Mode Display: SCOPE Mode and CHART Mode
02. Date
03. Time
04. Battery Level: Varies according to a level of discharge.
T h e b a t t e r y l eve l s a r e d i s p l aye d i n d i v i d u a l l y fo r b o t h t h e
STAR BOOK-S and the SKYPOD Mount.
Note: The SKYPOD battery level indicator may show “Empty” when
the controller cable is not connected securely.
05. Upward Arrow / Downward Arrow
Upward Arrow: A bunch of on-screen soft-keys corresponding to
the upper buttons.
Downward Arrow: A bunch of on-screen soft-keys corresponding
to the lower buttons.
06. : Directional keys and cursor movement
07. Select, Automatic Slewing and changing Chart / Scope mode
08. Zoom + : Zoom in the screen.
09. Zoom – : Zoom out the screen.
10. MT : Speed of scrolling the screen / zooming visually.
11. Menu : Open the System Menu dialog box to change various settings.
12. Align : Set up directions (alignment) for automatic slewing
01
02
06
10
12
11
08
13
14
01
05
11
10
08
09
12
05
02
03
06 13
07
05
07
09
04
03
BEFORE USE
04
Full Middle Empty
