4
Getting Started
6. Click Apply, then OK.
7. On the next screen, select File > Properties >
Settings, and click on ASCII Setup.

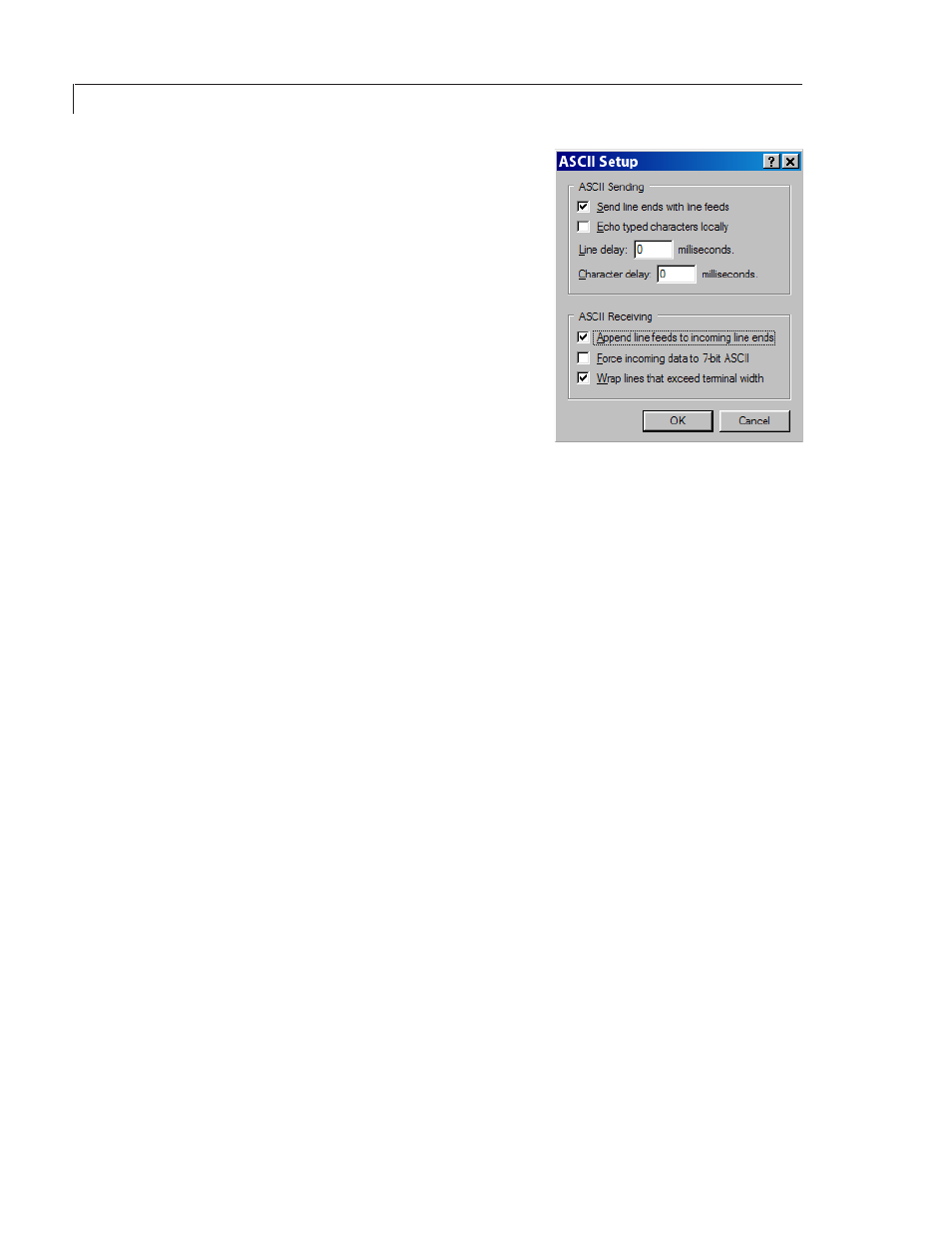

8. In the ASCII setup window, click the check
boxes or enter the values as required to
match the screen in Figure 3.
9. Click OK, then OK again to close the FTC
Properties window.
10. HyperTerminal:
Click on the phone icon just below “View”
to connect. If the connection is not
available, repeat the procedure, selecting
a different COM port in step 4.
11. When HyperTerminal is connected, press the
reset button of the FTC. The FTC will read as
follows:
FTC Response Explanation
Resetting PWM . . . ok Pulse Width Modulator working
A/D started Analog to Digital converter working
EEPROM parameters recovered Operational parameters loaded
DS24B33 present Memory chip recognized
1-wire checksum ok Verify chip is OK
ID = 00000142F5DA Chip ID number
Reading embedded parameters … Reading column data
Column id : 12345 Column serial number
Length m : 10 Column length in meters
Phase id : VB-1 250um Column phase, film thickness (µm) & inside diameter (µm)
Element equation : Column temperature vs. resistance equation
R(T) = 1.31039E1 + 6.44364E-2 * T + 1.74357E – 4 * T^2
M = 1.550 Heat capacity of the column
Alpha = 2.10000E-2 Time constant in seconds, how fast does the temp. rise
Lambda = 1.00000E-4 PWM dampener
Max. temp = 340 Column maximum temperature
Calibration data : Column resistance and temperature calibration data
1 40.000 5.600 pair #1 (*C) (ohms)
2 183.000 10.692 pair #2 (*C) (ohms)
3 300.000 17.785 pair #3 (*C) (ohms)
OK Data accepted
Weighting vector generated. Algorithm calculation complete
Checking input connections . . . ok If not “ok”, check column connections
0.4.8.095 July 5 2012 12:30:55, Unit #321 FTC firmware and serial number
DSP Column Control online
FTC ready for use
Figure 4: ASCII setup
